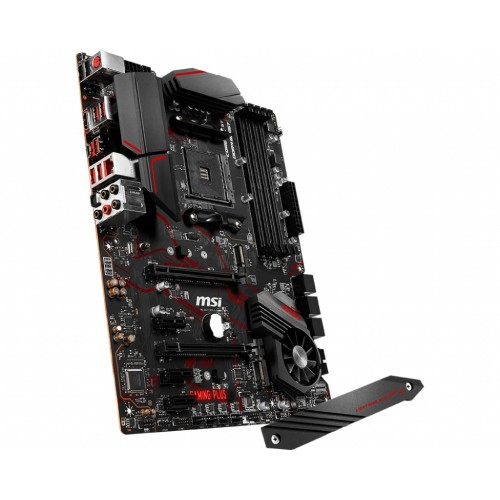

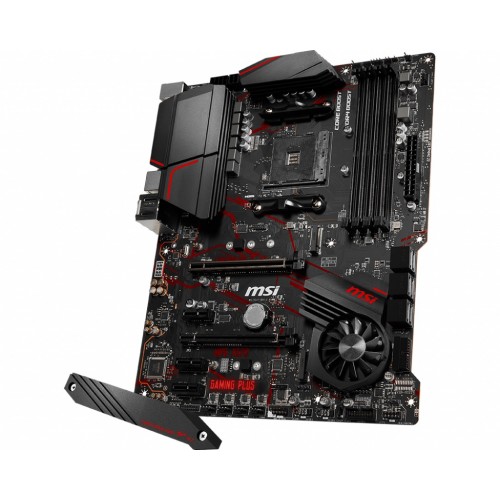

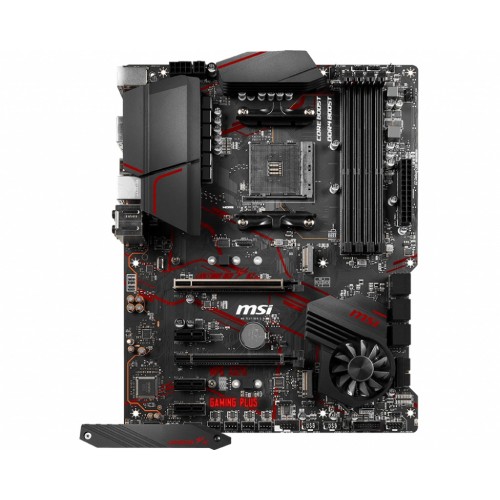

MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard
  • MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard
  • MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard
  • MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard
  • MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard

MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 10800
Brand MSI

Key Features

  • Model: MSI MPG X570 Gaming Plus
  • Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
  • Lightning Fast Game experience
  • Mystic Light : Audio Boost 4
  • 8+4 pin CPU Power Connector
  • View More Info
stars 150 Star Points
Out Of Stock

Specification

Basic Information
Supported CPUSupports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
ChipsetAMD X570 Chipset
Form FactorATX Form Factor
Audio- 7.1-Channel High Definition Audio
Expansion Slots
PCI- 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
- 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen support PCIe 3.0x16 mode
-Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
- 3x PCIe 3.0 x1 slots1
PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
M.2 Socket- Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory
- 2x M.2 slots (Key M)
Memory
TypeDDR4
SlotsMEMORY CHANNEL: Dual
DIMM SLOTS: 4
Supported Memory1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 + Mhz by JEDEC and A-XMP OC MODE
Maximum MemoryMaximum shared memory of 2048 MB
Graphics
Graphics- 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
- Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Processors.
- Supports 2-Way AMD CrossFire Technology
Max Shared Memory- Maximum shared memory of 2048 MB

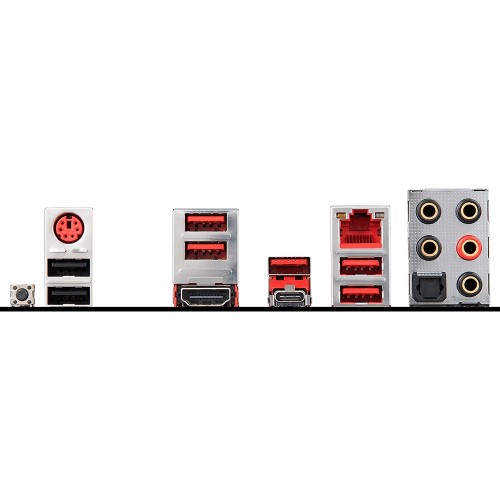

Connector & Ports
HDMI- 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
USB (s)AMD X570 Chipset :
- 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
- 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD Processor :
- 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzenwith Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel
- 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)- 1x Realtek 8111H Gigabit LAN Controller
Supported StorageAMD X570 Chipset:
- 4x SATA 6Gb/s ports(SATA3-SATA6)
- 2x M.2 slots (Key M)
- M2_1 slot(from AMD Processor)
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)
- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with
Radeon Graphics)
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD® X570 Chipset)
- Supports PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
ASMedia ASM1061:
-2x SATA 6Gb/s ports (SATA1, SATA2)
AudioRealtek ALC1220 Codec:
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
Internal I/O PortsExpansion Slots:
1 x PCIe 4.0 x16 (x16 mode)
1 x PCIe 4.0 x16 (x4 mode)
3 x PCIe 3.0 x1
USB:
2 x USB 2.0 Header (Supports 4 USB Type-A Ports)
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Ports)
Multi-GPU Support:
2-Way AMD CrossFireX
Air Cooling:
1 x 4-Pin CPU
4 x 4-Pin System
Liquid Cooling:
1 x 4-Pin Pump
Power Connectors:
1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU
Security: Chassis Intrusion, TPM Module
LED Header: 4 x RGB
Audio: None
Diagnostics: Clear CMOS
Legacy: 1 x Serial
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Clear CMOS jumper
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
4x EZ Debug LEDs
TPM (Trusted Platform Module )1x TPM module connector
Others
Bundled SoftwareSupport for Windows 10 64-bit
Warranty Information
Manufacturing Warranty03 years warranty

Description

MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard

MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors for Socket AM4 with DDR4 Memory, up to 4400+(OC) MHz. This MSI motherboard designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers. Here the Set Core Power Free are Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost. The MSI motherboard has MYSTIC LIGHT EXTENSION that supports both RGB and RAINBOW LED strip with 16.8 million colors / 29 effects controlled in one click. This motherboard is built with AUDIO BOOST 4 that reward your ears with studio grade sound quality for the most immersive gaming experience. Dragon Center is a brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK with user friendly user interface.

The MSI motherboards are designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, with SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. The MSI motherboards is designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery and cooling is essential for a high performance PC to sustain intense workloads. The Numerous fan headers with full fan speed control lets builders tune their system cooling. Performance Enhancing Apps complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment. MSI motherboards are designed with both device compatibility and physical im mind. The Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products. You can connect any ultra-fast storage device and get into the game sooner. The MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes. Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. It Illuminate with MSI Mystic Light and bring the motherboard RGB lighting to life and choose from millions of colors and sync across compatible devices.

This AMD MSI Motherboard is built on Everlasting quality, Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional and gaming experience with rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard. This exclusive MSI MPG X570 Gaming Plus comes with 03 years of warranty.

What is the price of MSI MPG X570 Gaming Plus Motherboard in Bangladesh?

The latest price of MSI MPG X570 Gaming Plus Motherboard in Bangladesh is 17,000৳. You can buy the MSI MPG X570 Gaming Plus Motherboard at best price from our website or visit any of our showrooms.

Questions (2)

Have question about this product? Get specific details about this product from expert.

Jamil on 15 Nov 2020

Q: Does it support next gen Ryzen processors?

A: Yes Sir, the MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard will support the next generation Processors.

By Star Tech Support 15 Nov 2020

Foysal Hasan on 10 Jan 2020

Q: Is XFX Radeon RX 5700 xt thicc lll graphics card compitable with this motherboard?

A: Yes Sir, the XFX Radeon RX 5700 XT THICC III ULTRA 8GB GDDR6 Graphics Card is compatible with the MSI MPG X570 Gaming Plus AM4 AMD ATX Motherboard.

By Star Tech Support 10 Jan 2020

Reviews (0)

Get specific details about this product from customers who own it.

assignment
This product has no reviews yet. Be the first one to write a review.
