close| Price | To be announced |
| Status | Up Coming |
| Product Code | 54319 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD X870E | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|
| M.2 Socket | 3 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMMs | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI TMDS 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz** *Available only on processors featuring integrated graphics |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x Type-C DisplayPort | |
| USB (s) | 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
|
| LAN Port (s) | 1x Realtek 8126 5G LAN | |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 2x Direct OC Jumper (JBCLK) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Digit Debug LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

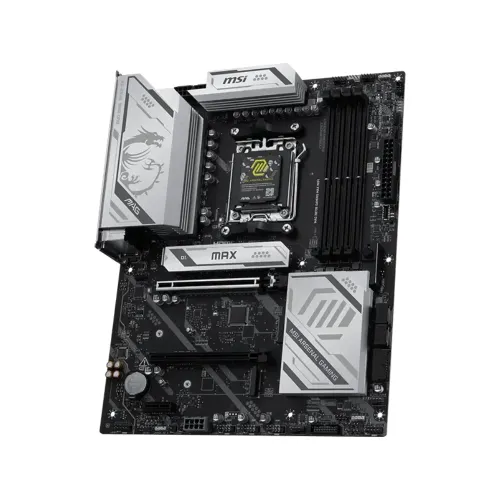

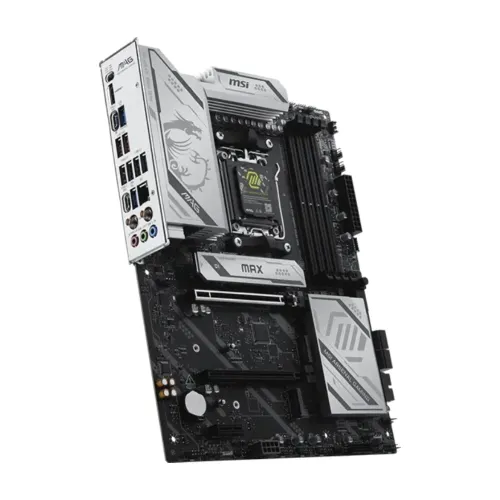

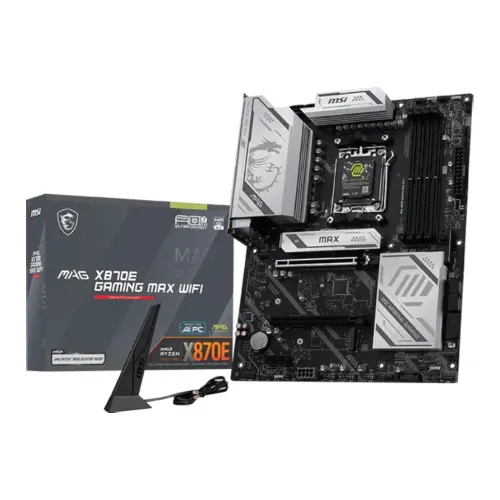

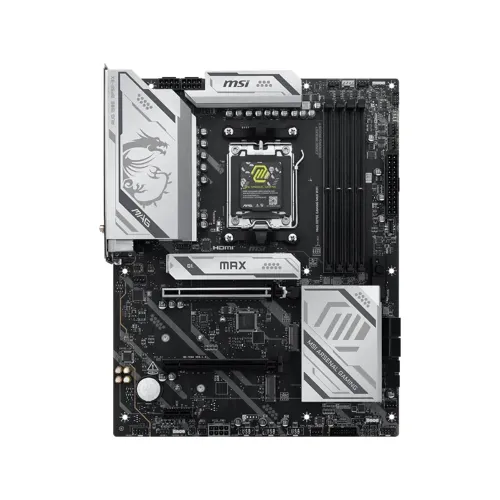

The MSI MAG X870E GAMING MAX WIFI AM5 ATX Motherboard is built on the AMD X870E chipset for Socket AM5 and supports Ryzen 9000, 8000, and 7000 series desktop processors. This MSI X870E GAMING MAX WIFI motherboard comes in the ATX size and brings together DDR5 memory, PCIe 5.0, three M.2 slots, a USB4 port, Wi-Fi 7, and 5G LAN. As an MSI X870E motherboard in the MAG series, it sits among the MSI Motherboard options made for gaming and high-performance PC builds that need current memory, storage, and wireless standards.
The four DIMM slots on this MSI MAG X870E GAMING MAX WIFI Motherboard support DDR5 memory up to 256GB in dual-channel mode. Speeds run from 4800 to 5600 MT/s under JEDEC and from 5600 up to 8200 MT/s with overclocking. On Ryzen 9000 series processors, a single-rank module in one slot per channel can reach 8200+ MT/s, while the other setups listed reach 6400+ or 6000+ MT/s. The board supports AMD EXPO, non-ECC unbuffered memory, and CUDIMM in clock driver bypass mode. Two Direct OC jumpers let you adjust the base clock for tuning.
On this MSI 870 motherboard, the first PCIe x16 slot connects directly to the CPU and runs at PCIe 5.0 x16 with Ryzen 9000 and 7000 series processors, which suits a high-end graphics card. The second x16 slot runs at PCIe 4.0 x4 and the x1 slot at PCIe 3.0 from the chipset. For storage, there are three M.2 slots and four SATA 6G ports. M.2_1 connects to the CPU at PCIe 5.0 x4, while M.2_2 and M.2_3 run at PCIe 4.0 x4, and M.2_2 also fits 22110 drives. RAID 0, 1, and 5 work with NVMe drives, and RAID 0, 1, 5, and 10 work with SATA drives.

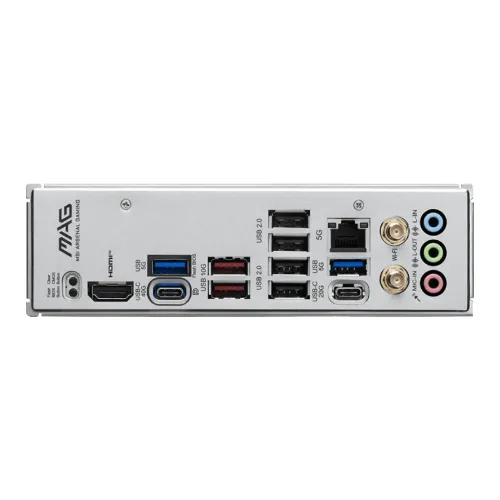

This MSI X870E Wifi motherboard comes with a pre-installed Wi-Fi 7 module that supports 802.11be, MU-MIMO, MLO, and speeds of up to 2.9Gbps, along with Bluetooth 5.4. Wired networking uses a Realtek 8126 5G LAN port. The rear panel has a USB4 40Gbps Type-C port with DisplayPort 1.4 output, a USB 20Gbps Type-C port, two USB 10Gbps Type-A ports, two USB 5Gbps Type-A ports, four USB 2.0 ports, and an HDMI port. Audio comes from a Realtek ALC897 codec with 7.1-channel output. EZ Debug LEDs and an EZ Digit Debug LED help you find problems during a build, and a TPM 2.0 header is included.
In Bangladesh, you can get the original MSI MAG X870E GAMING MAX WIFI AM5 ATX Motherboard From Star Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The MSI MAG X870E GAMING MAX WIFI AM5 ATX Motherboard comes with 3 years Warranty.
The latest price of MSI MAG X870E GAMING MAX WIFI Motherboard in Bangladesh is 0৳. You can buy the MSI MAG X870E GAMING MAX WIFI Motherboard at best price from our website or visit any of our showrooms.
