close| Price | To be announced |
| Status | Up Coming |
| Product Code | 54323 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| M.2 Socket | 3x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DDR5 UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x DisplayPort Support DisplayPort 1.2 with HBR2, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||
| Display Port (s) | 1x DisplayPort 1.2 | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126 5G LAN | |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8500/ 8300 Series processors) |
|
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED Features: 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

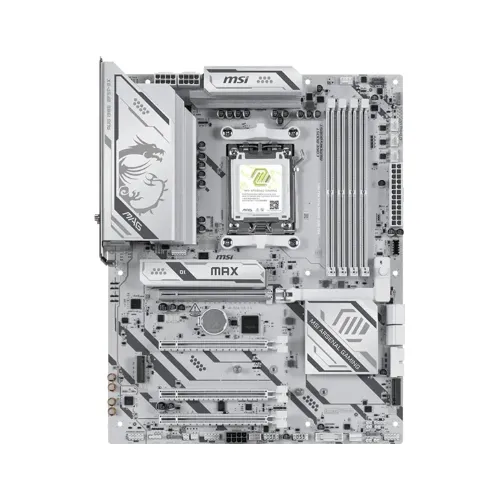

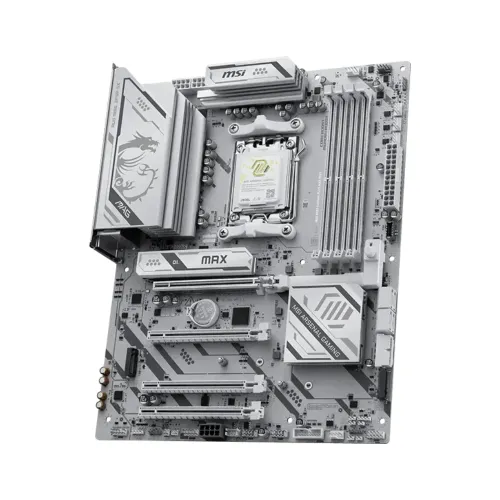

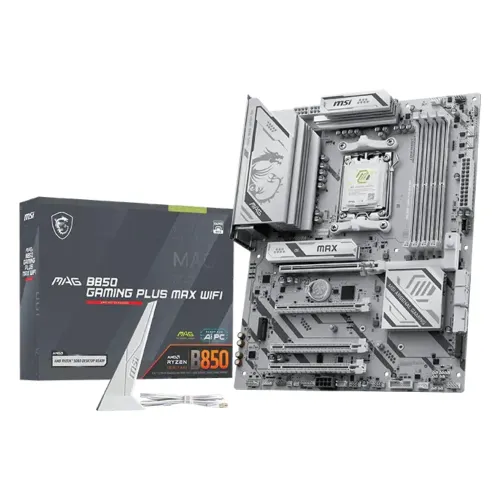

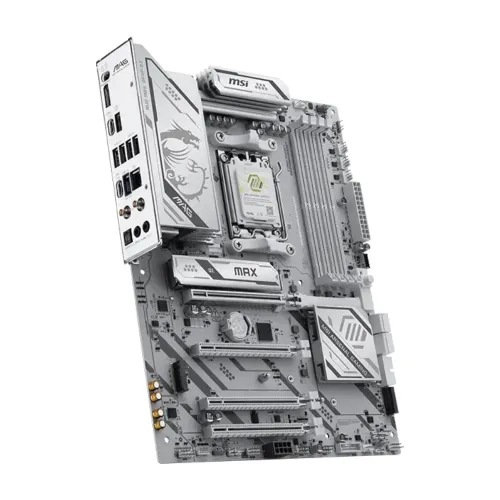

The MSI MAG B850 GAMING PLUS MAX WIFI AM5 ATX Motherboard is built on the AMD B850 chipset for Socket AM5 and supports Ryzen 9000, 8000, and 7000 series desktop processors. This MSI B850 GAMING PLUS MAX WIFI motherboard has four DDR5 memory slots, three M.2 slots, four PCIe x16-size slots, Wi-Fi 7, and 5G LAN in a full ATX layout. As an MSI B850 motherboard from the MAG series, it is a good MSI Motherboard choice for gaming builds that want current wireless, memory, and storage standards at a mid-range level.
The four DDR5 UDIMM slots on the MSI MAG B850 GAMING PLUS MAX WIFI Motherboard take up to 256GB of memory in dual-channel mode. Supported speeds run from 4800 to 5600 MT/s under JEDEC and from 5600 up to 8200 MT/s with overclocking. On Ryzen 9000 series processors, a single-rank module in one slot per channel can reach 8200+ MT/s, while the other setups listed reach 6400+ or 6000+ MT/s. The board supports AMD EXPO, non-ECC unbuffered memory, and CUDIMM in clock driver bypass mode, and an EZ Memory Detection LED helps check memory during a build.
This MSI 850 motherboard has four PCIe x16-size slots. The first slot connects to the CPU at PCIe 5.0 x16 with Ryzen 9000 and 7000 series processors, the third runs at PCIe 4.0 x4, and the second and fourth run at PCIe 3.0 x1 from the chipset. Storage comes from three M.2 slots and four SATA 6G ports. M.2_1 runs at PCIe 5.0 x4, M.2_2 runs at PCIe 4.0 x4 and also fits 22110 drives, and M.2_3 runs at PCIe 4.0 x2. RAID 0 and RAID 1 work with both NVMe and SATA drives.

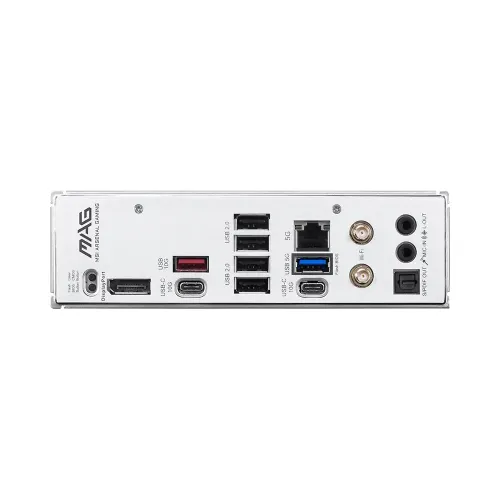

This MSI B850 Wifi motherboard comes with a pre-installed Wi-Fi 7 module that supports 802.11be, MU-MIMO, MLO, and speeds of up to 2.9Gbps, along with Bluetooth 5.4. Wired networking uses a Realtek 8126 5G LAN port. The rear panel has two USB 10Gbps Type-C ports, one USB 10Gbps Type-A port, one USB 5Gbps Type-A port, four USB 2.0 ports, and a DisplayPort 1.2 output for processors with integrated graphics. Audio comes from a Realtek ALC897 codec with 7.1-channel output, and four EZ Debug LEDs help you find problems while building. The board also includes a TPM 2.0 header and addressable RGB connectors.
In Bangladesh, you can get the original MSI MAG B850 GAMING PLUS MAX WIFI AM5 ATX Motherboard From Star Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The MSI MAG B850 GAMING PLUS MAX WIFI AM5 ATX Motherboard has 3 years Warranty.
The latest price of MSI MAG B850 GAMING PLUS MAX WIFI Motherboard in Bangladesh is 0৳. You can buy the MSI MAG B850 GAMING PLUS MAX WIFI Motherboard at best price from our website or visit any of our showrooms.
