close| Price | To be announced |
| Status | Up Coming |
| Product Code | 54326 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| M.2 Socket | 3x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DDR5 UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 TMDS, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | 5Gbps LAN Controller | |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED Features: 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

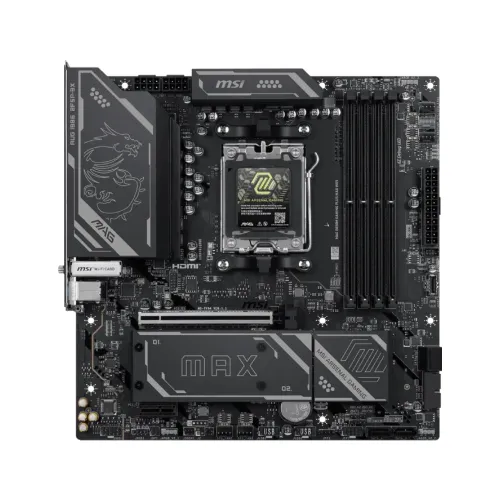

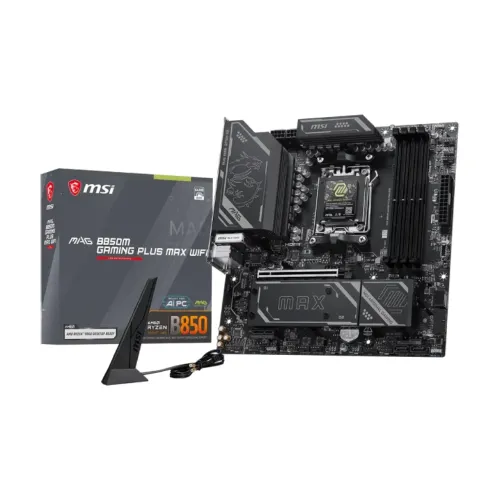

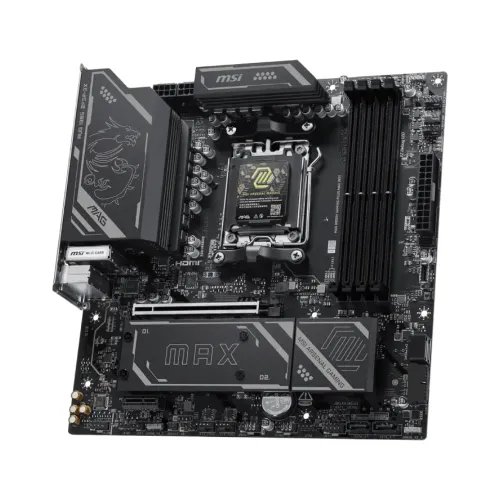

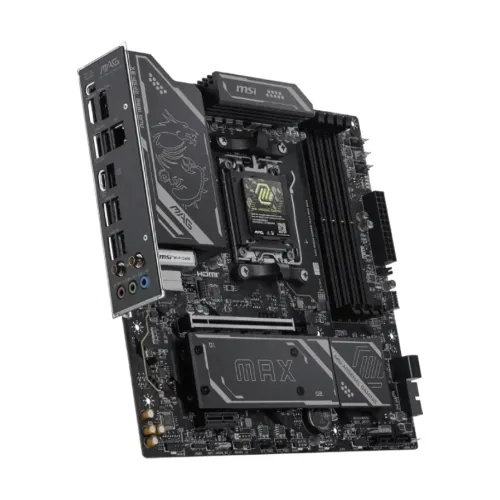

The MSI MAG B850M GAMING PLUS MAX WIFI AM5 mATX Motherboard is a compact Micro-ATX board built on the AMD B850 chipset for Socket AM5, with support for Ryzen 9000, 8000, and 7000 series desktop processors. This MSI B850M GAMING PLUS MAX WIFI motherboard measures 243.84 x 243.84 mm and still fits four DDR5 slots, three M.2 slots, Wi-Fi 7, and 5G LAN. As an MSI mATX motherboard from the MAG series, it is a good MSI Motherboard option for smaller gaming PCs that need current memory, storage, and wireless standards.
The four DDR5 UDIMM slots on the MSI MAG B850M GAMING PLUS MAX WIFI Motherboard support up to 256GB of memory in dual-channel mode. Speeds run from 4800 to 5600 MT/s under JEDEC and from 5600 up to 8200 MT/s with overclocking. On Ryzen 9000 series processors, a single-rank module in one slot per channel can reach 8200+ MT/s, while the other setups listed reach 6400+ or 6000+ MT/s. The board supports AMD EXPO, non-ECC unbuffered memory, and CUDIMM in clock driver bypass mode. Two Direct OC jumpers allow base clock tuning, and an EZ Memory Detection LED helps with memory checks.
This MSI B850M motherboard has one PCIe x16 slot that connects to the CPU and runs at PCIe 5.0 x16 with Ryzen 9000 and 7000 series processors, along with one PCIe 3.0 x1 slot from the chipset. Three M.2 slots and four SATA 6G ports handle storage. M.2_1 runs at PCIe 5.0 x4 and M.2_2 at PCIe 4.0 x4, both from the CPU, and M.2_3 runs at PCIe 4.0 x4 from the chipset. RAID 0, 1, and 10 work with SATA drives, and RAID 0 and 1 work with NVMe drives.

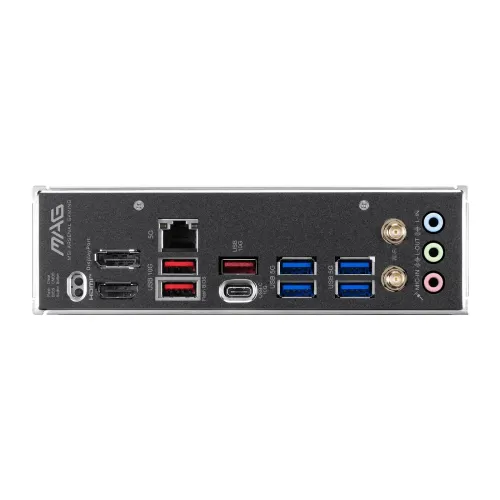

This MSI B850 Wifi motherboard comes with a pre-installed Wi-Fi 7 module that supports 802.11be, MU-MIMO, MLO, and speeds of up to 2.9Gbps, along with Bluetooth 5.4. Wired networking uses a 5Gbps LAN controller. The rear panel has one HDMI 2.1 port and one DisplayPort 1.4 for processors with integrated graphics, along with three USB 10Gbps Type-A ports, one USB 10Gbps Type-C port, and four USB 5Gbps Type-A ports. Audio comes from a Realtek ALC897 codec with 7.1-channel output. Four EZ Debug LEDs make it easier to find problems during a build, and a TPM 2.0 header is included.
In Bangladesh, you can get the original MSI MAG B850M GAMING PLUS MAX WIFI AM5 mATX Motherboard From Star Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The MSI MAG B850M GAMING PLUS MAX WIFI AM5 mATX Motherboard has 3 years Warranty.
The latest price of MSI MAG B850M GAMING PLUS MAX WIFI Motherboard in Bangladesh is 0৳. You can buy the MSI MAG B850M GAMING PLUS MAX WIFI Motherboard at best price from our website or visit any of our showrooms.
