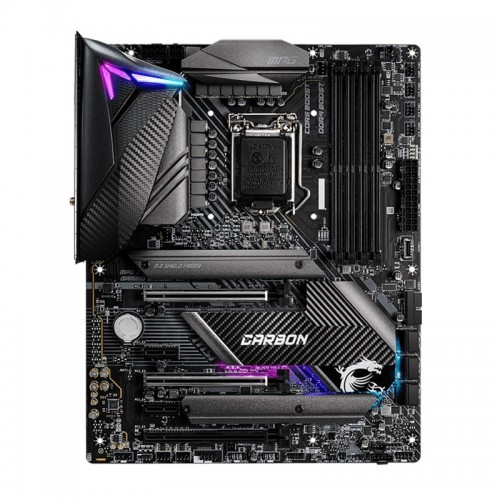

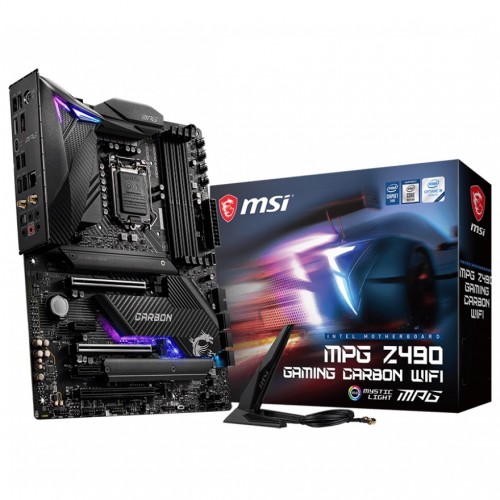

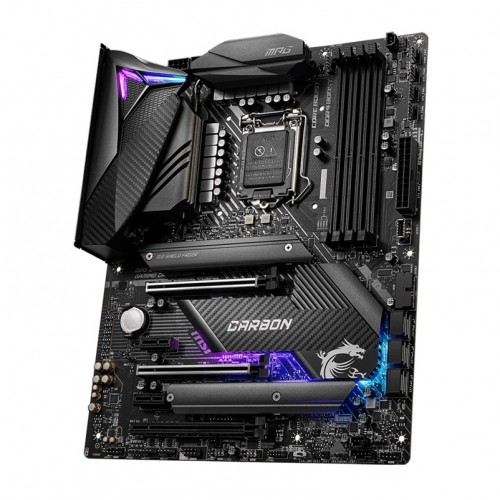

MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard
  • MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard
  • MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard
  • MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard

Price To be announced
Status Discontinued
Product Code 14438
Brand MSI

Key Features

  • Model: MSI Z490 Gaming Carbon Wi-Fi
  • Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5000(OC) MHz
  • Lightning USB 20G Powered by ASmedia 3241
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
ChipsetIntel Z490 Chipset
Form FactorATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Expansion Slots
PCI3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode
2x PCIe 3.0 x1 slots
M.2 Socket2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Memory
TypeDual-Channel mode
Slots4x DDR4 memory slots
Supported MemorySupports 1R 2133/2666/2933 MHz
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4500+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memorysupport up to 128GB
Graphics
Graphics1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
MULTI-GPU
Supports 2-Way NVIDIA SLI Technology
Supports 3-Way AMD CrossFire Technology
Max Shared Memory1GB

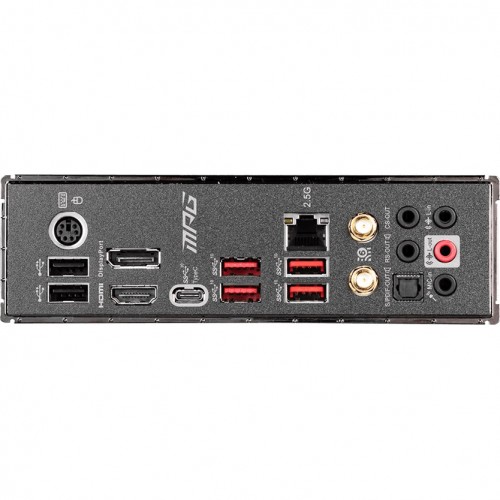

Connector & Ports
HDMI1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
Display Port (s)1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
USB (s)Intel Z490 Chipset
5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector)
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

ASMedia ASM3241 Chipset
1x USB 3.2 Gen 2x2 20Gbps port on the back panel
LAN Port (s)1x Realtek RTL8125B 2.5Gbps LAN controller
Supported StorageIntel Z490 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Sma
AudioRealtek ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Internal I/O Ports1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector
1x Serial port connector
1x RTD3 connector
1x Clear CMOS jumper
1x TBT connector
TPM (Trusted Platform Module )1x TPM module connector
Others
Special Features WIFI & BLUETOOTH
Intel AX201
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
WiFi 6 Pre-Certified
Supports Bluetooth 5.1 , FIPS, FISMA
The Wireless module is pre-install in the M2 (Key-E) slot
Warranty Information
Manufacturing Warranty03 years warranty

Description

MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard

The MSI MPG series motherboard brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. In this motherboard, the LED strip that provides convenient in-game and real time notifications. The MPG series, transform your equipment into the center of attention and top leaderboards in style.

The MSI MPG Z490 Gaming Plus ATX Motherboard supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 4800(OC) MHz, Lightning Gen 4 Solution for the future. This motherboard also comes with Enhanced Power Design 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost. In this motherboard Premium Thermal Solution extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience. In this motherboard, it has 2.5G LAN with LAN Manager that upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Here the Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It is also Powered by Intel USB 3.2 Gen 2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds. Here, The thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed with MSI motherboards.

This motherboard also has 12 with CROSSFIRE features. This motherboard Support for Windows 10 64-bit. The MSI MPG Z490 Gaming Plus cpmes with 03 years warranty.

What is the price of MSI Z490 Gaming Carbon Wi-Fi Motherboard in Bangladesh?

The latest price of MSI Z490 Gaming Carbon Wi-Fi Motherboard in Bangladesh is 26,000৳. You can buy the MSI Z490 Gaming Carbon Wi-Fi Motherboard at best price from our website or visit any of our showrooms.
