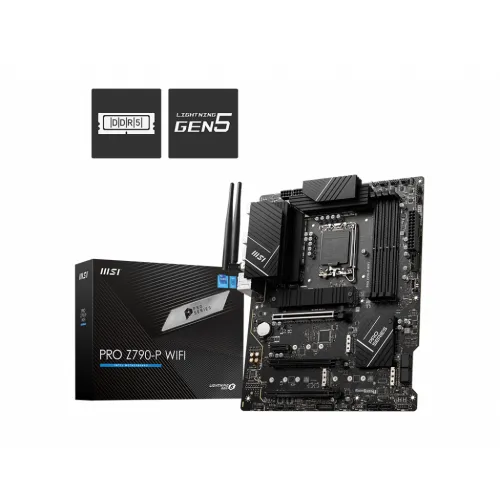

MSI PRO Z790-P WIFI DDR5 ATX Motherboard
  • MSI PRO Z790-P WIFI DDR5 ATX Motherboard
  • MSI PRO Z790-P WIFI DDR5 ATX Motherboard
  • MSI PRO Z790-P WIFI DDR5 ATX Motherboard
  • MSI PRO Z790-P WIFI DDR5 ATX Motherboard
Product Page After Image | bKash Cashback

MSI PRO Z790-P WIFI DDR5 ATX Motherboard

Price 29,000৳
Regular Price 31,360৳
Status In Stock
Product Code 24763
Brand MSI

Key Features

  • Model: PRO Z790-P
  • Supports 14th/13th/ 12th Gen Intel, Pentium Gold, and Celeron Processors for LGA 1700
  • Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
  • PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • 2.5G LAN with Wi-Fi 6E Solution
  • View More Info

Payment Options

Specification

Basic Information
Supported CPUSupports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA 1700
ChipsetIntel Z790 Chipset
Form FactorATX Form Factor
243.84mmx304.8mm
AudioRealtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From the Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket4x M.2 slot
Memory
TypeDDR5
Supported Memory4x DDR5, Maximum Memory Capacity 128GB
Max. overclocking frequency:
1DPC 1R Max speed up to 7000+ MHz
1DPC 2R Max speed up to 6600+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory128GB
Graphics
Graphics1x HDMI
1x DisplayPort
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
Support DP 1.4, the maximum resolution of 4K 60Hz
Connector & Ports
HDMI1x HDMI 2.1
Display Port (s)1x DisplayPort 1.4
USB (s)4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)Intel 2.5Gbps LAN
Wireless Communication moduleIntel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port
Audio1x Front Audio (JAUD)
Internal I/O Ports1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Others
Special Features LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty3 years

Description

MSI PRO Z790-P WIFI DDR5 ATX Motherboard

The MSI PRO Z790-P WIFI ATX Motherboard is compatible with 14th/13th/12th Generation Intel Core, Pentium Gold, and Celeron CPUs in the LGA 1700 socket. It supports DDR5 memory, including dual channel DDR5 7000+MHz support (OC). 14+1+1 DRPS with 55A DrMOS, twin 8-pin CPU power connections, Core Boost, Memory Boost, Enhanced Power Design Extended heatsinks, MOSFET thermal pads rated at 7W/mK, extra choke thermal pads, and M.2 Shield Frozr are designed for high-performance systems and nonstop gaming. 6-layer PCB constructed with 2oz thicker copper and server-grade level material. This motherboard has Lightning Fast Gaming, PCIe 5.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2. It contains Intel Turbo USB 3.2 Gen 2 controller, which offers an unbroken connection with better reliability and the quickest USB rates. 2.5G LAN solution with Wi-Fi 6E, a Professional and multimedia network solution that has been upgraded. Provides a safe, reliable, and fast network connection. For the most immersive gaming experience, reward your ears with studio-grade sound quality. The MSI PRO Z790-P WIFI DDR5 13th Gen ATX Motherboard comes with a 03-year warranty.

What is the price of MSI PRO Z790-P WIFI DDR5 ATX Motherboard in Bangladesh?

The latest price of MSI PRO Z790-P WIFI DDR5 ATX Motherboard in Bangladesh is 29,000৳. You can buy the MSI PRO Z790-P WIFI DDR5 ATX Motherboard at best price from our website or visit any of our showrooms.
