MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard
  • MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard
  • MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard
  • MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard
  • MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard
Product Page After Image | bKash Cashback

MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 17514
Brand MSI

Key Features

  • Model: MPG Z590M GAMING EDGE WIFI
  • Supports 10th & 11th Gen Intel processors for LGA 1200 socket
  • Lightning Fast Game experience
  • 8+4 pin CPU power connectors
  • 2.5G LAN & Intel Wi-Fi 6E Solution
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel Z590 Chipset
Form FactorMicro-ATX Form Factor
AudioRealtek ALC4080
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI2x PCIe x16 slots
Support x16/x4
PCI_E1 (From CPU)
Supports up to PCIe 4.0 for 11th Gen Intel CPU
Supports up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E3(From Z590 Chipset)
Support up to PCIe 3.0
1x PCIe 3.0 x1 slots (From Z590 Chipset)
M.2 Socket2x M.2 slots (Key M)
M2_1 slot (From CPU)
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From Z590 Chipset)
Support up to PCIe 3.0 x4
Support up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane Memory Ready
Memory
TypeDDR4
Slots4x DDR4 memory slots
Supported MemorySupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC mode, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum MemoryUp to 128GB
Graphics
Graphics1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Supports 2-Way AMD CrossFire Technology

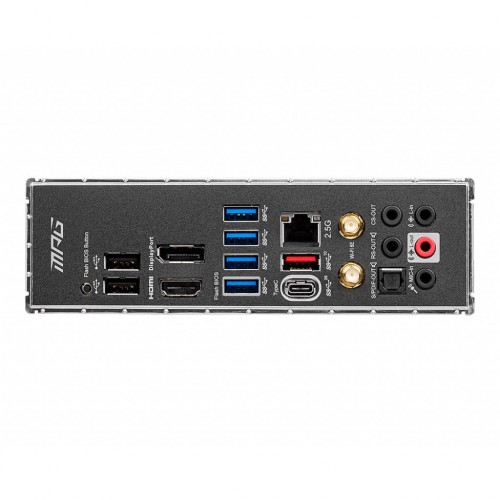

Connector & Ports
HDMI1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Display Port (s)1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
USB (s)Intel Z590 Chipset
1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 2 ports are available through the internal connectors)
2x USB 2.0 ports on the back panel
Hub-GL850G
4x USB 2.0 ports are available through the internal connectors
LAN Port (s)1x Intel I225V 2.5Gbps LAN controller
Wireless Communication moduleIntel Wi-Fi 6E AX210
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2z, FIPS, FISMA
Supported Storage6x SATA 6Gb/s ports (From Z590 Chipset)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From Z590 Chipset)
Support up to PCIe 3.0 x4
Support up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors
Audio1x Front panel audio connector
Internal I/O Ports1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2-pin system fan connectors
1x Front panel audio connectors
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x Tuning Controller connector
1x TBT connector (supports RTD3)
TPM (Trusted Platform Module )1x TPM module connector
Warranty Information
Manufacturing Warranty 03 years warranty

Description

MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard

MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard support 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 5333(OC) MHz. It offers Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. It comes with Enhanced Power Design, a 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost. Enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and 2x M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. it features MYSTIC LIGHT, 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. It comes with 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. It includes AUDIO BOOST 5, Reward your ears with the studio-grade sound quality for the most immersive gaming experience. It is built with a High-Quality PCB. 6-layer PCB made by 2oz thickened copper and server grade level material. It comes with pre-installed I/O Shield: Better EMI protection and more convenience for installation. It has 3 years of warranty.

What is the price of MSI MPG Z590M GAMING EDGE WIFI M-ATX Motherboard in Bangladesh?

The latest price of MSI MPG Z590M GAMING EDGE WIFI M-ATX Motherboard in Bangladesh is 27,500৳. You can buy the MSI MPG Z590M GAMING EDGE WIFI M-ATX Motherboard at best price from our website or visit any of our showrooms.
