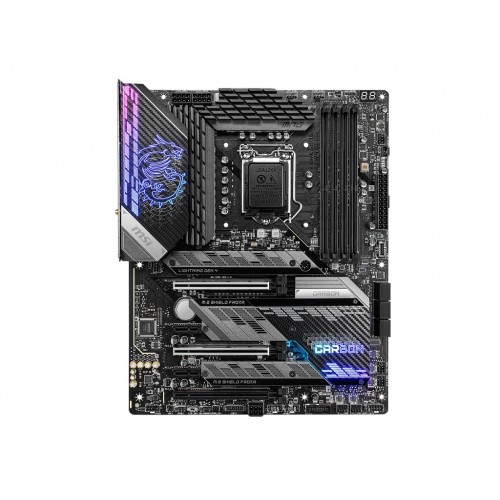

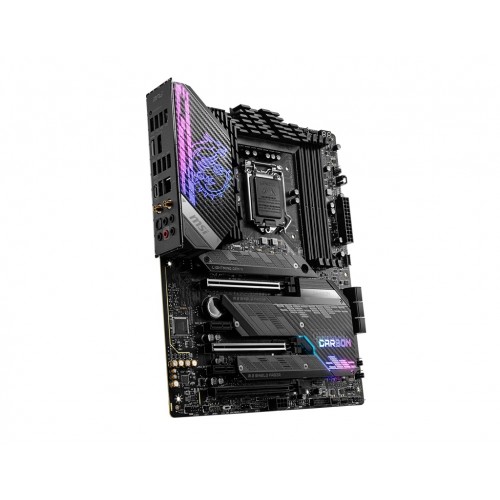

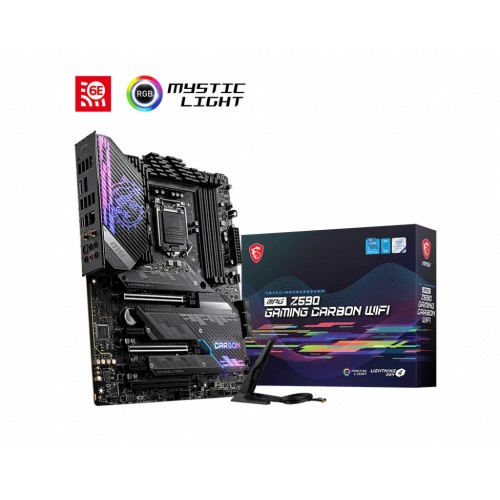

MSI MPG Z590 Gaming Carbon WiFi Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MPG Z590 Gaming Carbon WiFi Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MPG Z590 Gaming Carbon WiFi Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MPG Z590 Gaming Carbon WiFi Intel 10th Gen and 11th Gen ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

MSI MPG Z590 Gaming Carbon WiFi Intel 10th Gen and 11th Gen ATX Motherboard

Price To be announced
Status Discontinued
Product Code 16838
Brand MSI

Key Features

  • Model: MPG Z590 Gaming Carbon WiFi
  • Supports 11th and 10th Gen Intel Core, Pentium Celeron processors
  • DDR4 Memory, up to 5333(OC) MHz
  • 2.5G LAN with LAN Manager
  • LGA 1200 socket & Wi-Fi 6E
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel Z590 Chipset
Form FactorATX Form Factor
Audio7.1-Channel High Definition Audio
Expansion Slots
PCI3x PCIe x16 slots
2x PCIe 3.0 x1 slots (From Z590 Chipset)

M.2 Socket3x M.2 slots (Key M)
Memory
TypeDDR4
Slots4x DDR4 memory slots
Supported MemorySupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memoryup to 128GB
Graphics
Graphics1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports

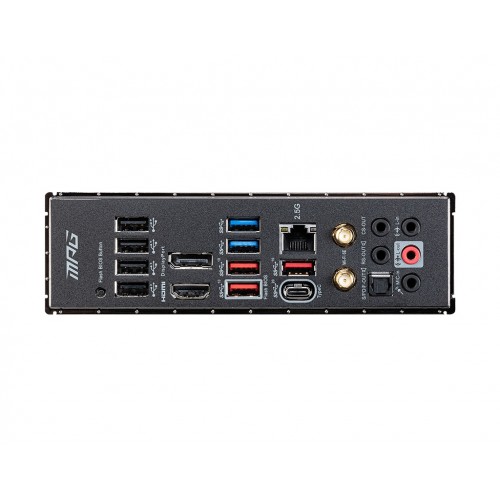

USB (s)1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)
LAN Port (s)1x Intel I225V 2.5Gbps LAN controller
Supported Storage6x SATA 6Gb/s ports (From Z590 Chipset)
3x M.2 slots (Key M)
M2_1 slot (From CPU)
Available only on 11th Gen Intel CPU
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21 & M2_32 slot (From Z590 Chipset)
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Audio1x Front panel audio connector
Internal I/O Ports1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector
TPM (Trusted Platform Module )1x TPM module connector
Warranty Information
Manufacturing Warranty03 years warranty

Description

MSI MPG Z590 Gaming Carbon WiFi Intel 10th Gen and 11th Gen ATX Motherboard

The MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Here, 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. MSI MPG Z590 Gaming Carbon WiFi ATX Motherboard Supports 11th and 10th Gen Intel Core, Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5333(OC) & provides Lightning Fast Game experience, like- MHz PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. This Motherboard Designed with 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost. Here, Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high-performance system and non-stop gaming experience. This Motherboard comes with 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. It also has 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution that Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Here, the AUDIO BOOST 5 that rewards your ears with studio grade sound quality for the most immersive gaming experience, High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material. The latest MSI MPG Z590 Gaming Carbon WiFi Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.

What is the price of MSI MPG Z590 Gaming Carbon WiFi 10th Gen and 11th Gen ATX Motherboard in Bangladesh?

The latest price of MSI MPG Z590 Gaming Carbon WiFi 10th Gen and 11th Gen ATX Motherboard in Bangladesh is 35,000৳. You can buy the MSI MPG Z590 Gaming Carbon WiFi 10th Gen and 11th Gen ATX Motherboard at best price from our website or visit any of our showrooms.
