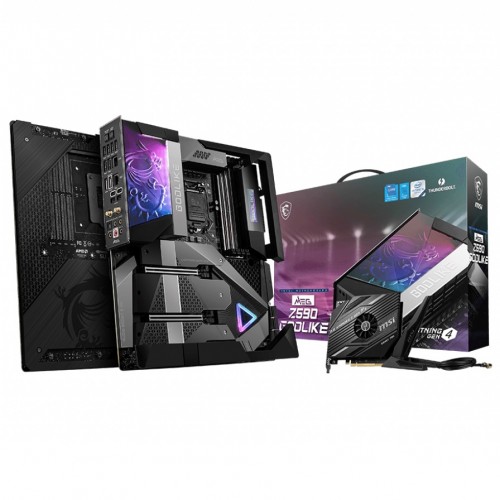

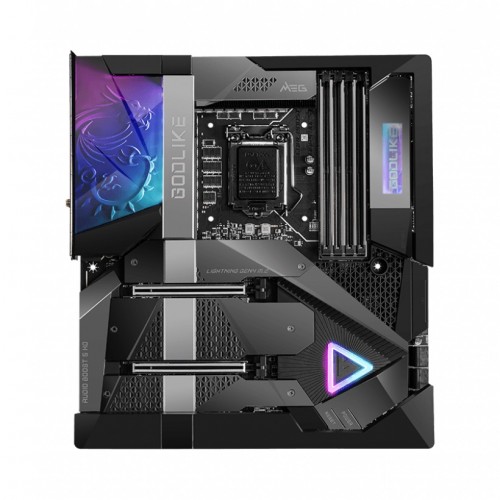

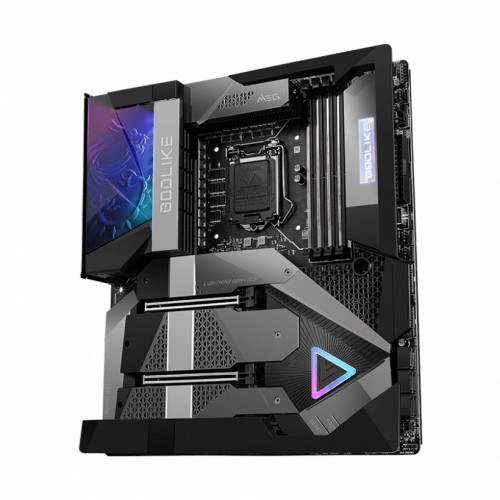

MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard
  • MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard
  • MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard
  • MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard

MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard

Price To be announced
Status Discontinued
Product Code 15890
Brand MSI

Key Features

  • Model: MEG Z590 GODLIKE
  • Supports 10th and 11th Gen Intel Processors
  • Quadruple M.2 Connectors
  • Premium Thermal Module
  • Dynamic Dashboard II
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors
Processor socket LGA1200
ChipsetIntel Z590 Chipset
Form Factor12 in. x 10.9 in. (30.5 cm x 27.7 cm)
E-ATX Form Factor
Expansion Slots
PCI3x PCIe x16 slots
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4
PCI_E1 & PCI_E2 slots (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E3 slot (From Z590 chipset)
Supports up to PCIe 3.0
M.2 Socket4x M.2 slots (Key M)
M2_1 (from CPU)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2, M2_3 & M2_4 slots (from Z590 chipset)
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Memory
TypeDDR4
Slots4x memory slots
Supported MemorySupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 5600 MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC mode, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory128GB
Graphics
GraphicsSupports 2-Way NVIDIA SLI Technology
Supports 3-Way AMD CrossFire Technology

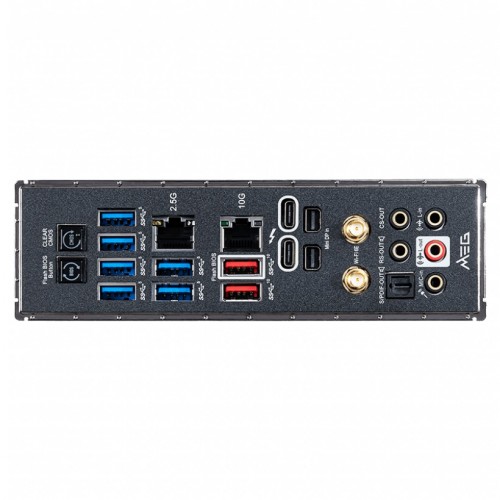

Connector & Ports
USB (s)Intel® JHL8540 Thunderbolt™ 4 Controller
2x Thunderbolt™ 4 (Type-C) ports on the back panel
Support up to 40 Gbps transfer rate with Thunderbolt devices
Support up to 20 Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A , 15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display

Intel Z590 Chipset:
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel and 1 Type-C internal connector)
2x USB 2.0 ports are available through the internal USB 2.0 connector
Hub GL850G:
2x USB 2.0 ports are available through the internal USB 2.0 connector
Asmedia 1074 Chipset:
10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the back panel, 4 ports are available through the internal USB 3.2 Gen 1 connectors)
LAN Port (s)1x Aquantia AQC107 10Gbps LAN controller
1x Intel I225-V 2.5Gbps LAN controller
Supported Storage6x SATA 6Gb/s ports (from Z590 chipset)
4x M.2 slots (Key M)
M2_1 (from CPU)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2, M2_3 & M2_4 slots (from Z590 chipset)
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors
AudioRealtek ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA
7.1-Channel High Definition Audio
Supports S/PDIF output
Internal I/O Ports1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin ATX PCIE power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
8x 4-pin system fan connectors
1x 3-pin Water Flow connector
1x Front panel audio connector
2x System panel connectors
1x Chassis intrusion connector
2x 2-pin Thermal sensors connectors
1x Tuning controller connector
TPM (Trusted Platform Module )1x TPM module connector
Others
Special Features Intel WiFi-6E AX210:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2 , FIPS, FISMA
Warranty Information
Manufacturing Warranty3 Years

Description

MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard

Compare with traditional fin-array, the exclusive wavy fin design enlarges up to 50% heat dissipation, also enhances the airflow efficiency, increases the thermal performance significantly. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. This PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed, features auto detect function for the M.2 access and the M.2 temperature for easy checking. PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. Looking to go all out in terms of raw data speed and put multiple SSDs in RAID 0? Setting this up can prove to be quite the challenge. That’s why we created M.2 Genie, a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming. MEG Z590 GODLIKE features high-bandwidth and low-latency onboard 10G Super LAN plus Intel 2.5G LAN for power users, provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

What is the price of MSI MEG Z590 GODLIKE Motherboard in Bangladesh?

The latest price of MSI MEG Z590 GODLIKE Motherboard in Bangladesh is 32,000৳. You can buy the MSI MEG Z590 GODLIKE Motherboard at best price from our website or visit any of our showrooms.
