| Price | To be announced |
| Status | Discontinued |
| Product Code | 16348 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors |
|
| Chipset | Intel Z590 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
|
| Audio | Realtek ALC4080 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. * The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) *Supported by 11th Generation processors only. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) (PCIEX4_1 and PCIEX4_2 slots conform to PCI Express 3.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)(M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) |
|
| Memory | ||
| Type | Dual-channel memory architecture |
|
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3 /Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Connector & Ports | ||
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header) Chipset+USB 3.2 Gen1 Hubs: 4 x USB 3.2 Gen1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)(M2C_CPU) *Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
|
| Audio | 5 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

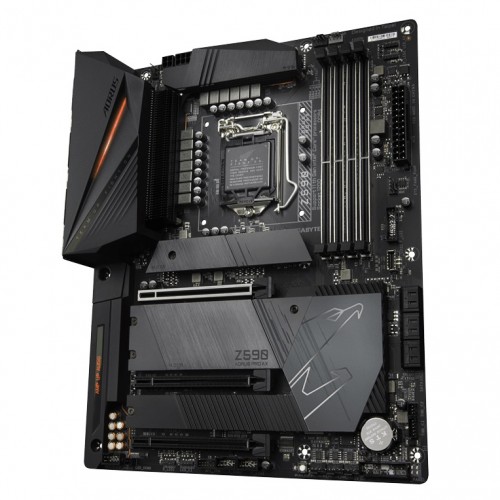

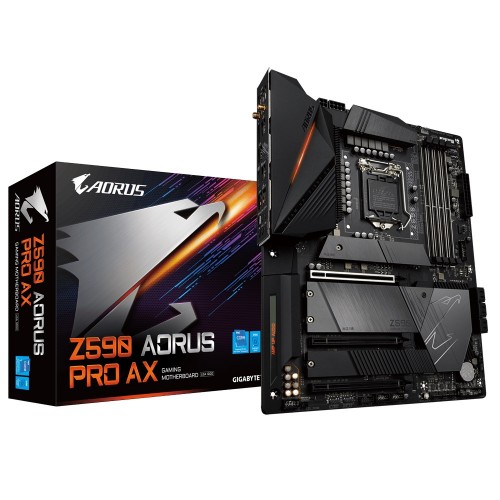

GIGABYTE Z590 AORUS PRO AX ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors and Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It is Intel Optane Memory Ready and comes with Direct 12+1 Phases Digital VRM Solution with 90A Smart Power Stage. It features Shielded Memory Routing to avoid Interference. Advanced Thermal Solution with Fins-Array II Heatsink, Direct Touch Heatpipe II and Thermal Guard II. it has onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna. AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNR. It has Blazing Fast Intel 2.5GbE LAN with cFosSpeed. Supports Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards II for extreme RAID Performance. The RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips with Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. It has 3 years warranty.
The latest price of GIGABYTE Z590 AORUS PRO AX ATX Motherboard in Bangladesh is 32,900৳. You can buy the GIGABYTE Z590 AORUS PRO AX ATX Motherboard at best price from our website or visit any of our showrooms.
