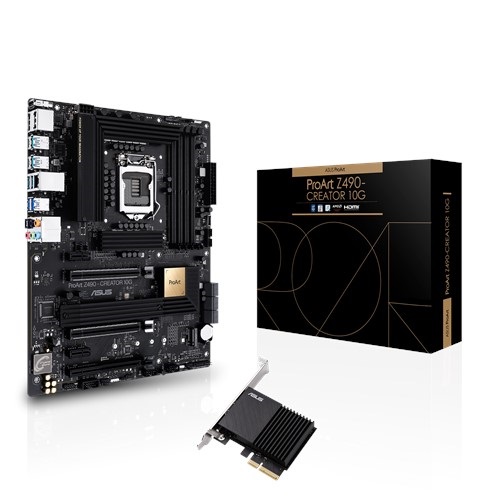

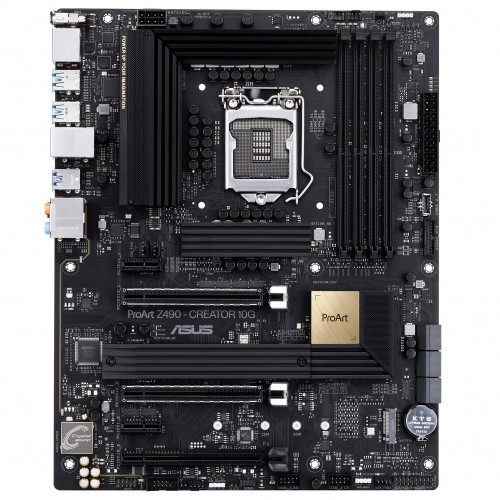

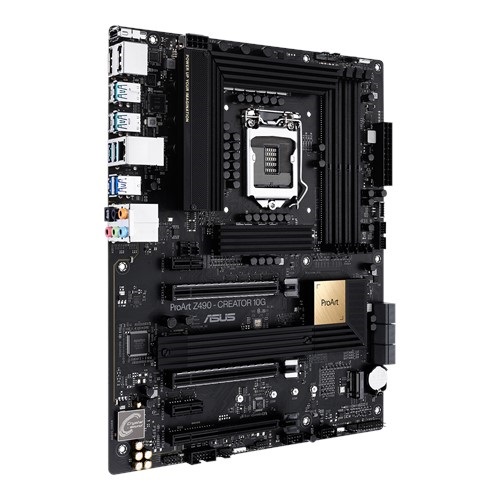

Asus PROART Z490-CREATOR 10G Intel 10th Gen ATX Motherboard
  • Asus PROART Z490-CREATOR 10G Intel 10th Gen ATX Motherboard
  • Asus PROART Z490-CREATOR 10G Intel 10th Gen ATX Motherboard
  • Asus PROART Z490-CREATOR 10G Intel 10th Gen ATX Motherboard

Asus PROART Z490-CREATOR 10G Intel 10th Gen ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 13979
Brand Asus

Key Features

  • Model: PROART Z490-CREATOR
  • LGA 1200 socket for 10th-gen Intel Core desktop processors
  • ProArt Creator Hub
  • Powerful performance
  • Intelligent optimization
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel Z490
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form FactorATX Form Factor: 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Expansion Slots
PCIIntel® 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
M.2 SocketTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Memory
TypeDual Channel Memory Architecture
Slots4 x DDR4 DIMM
Supported Memory4800(O.C.)/ 4600(O.C)/ 500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory128 GB
Graphics
GraphicsIntegrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Supports AMD 3-Way CrossFireX Technology

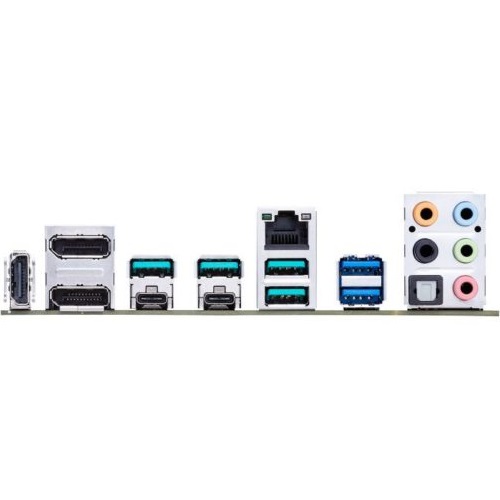

Connector & Ports
HDMI1 x HDMI 1.4b
Display Port (s)1 x DisplayPort 1.4
USB (s)Intel Thunderbolt 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C)
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 2 port(s)(4 x Type-A)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
Front USB Port ( Total 7 )
1 x USB 3.1 Gen 1 port(s)(1 x USB Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)
LAN Port (s)Intel I225-V 2.5Gb Ethernet
Supported StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready
AudioRealtek ALC S1220A 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
- High quality 120 dB SNR stereo playback output and SNR recording input
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Audio Cover
- Unique de-pop circuit
Internal I/O Ports1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x COM port header
TPM (Trusted Platform Module )N/A
Warranty Information
Manufacturing Warranty03 Years

Description

Asus PROART Z490-CREATOR 10G Intel 10th Gen ATX Motherboard

Every aspect of ASUS ProArt motherboards is built to remove barriers and deliver optimal performance to content creators who work in 3D modeling and rendering, animation, or media production. The series empowers you to concentrate on your creativity and expand what is possible. Onboard 2.5G Intel Ethernet and optional 10G Ethernet card are both provided to boost cloud- and internet-based communication for accelerated workflow. A comprehensive set of high-performance I/O ports — including two Thunderbolt 3 Type-C ports — enable quick data transfer speeds and extensive storage options with flexible, hassle-free connectivity. Two Thunderbolt 3 Type-C ports deliver up to 40 Gbps of aggregate interface bandwidth for quickly completing tasks that involve data transfer. Designed to meet the high standards of content creators and power users, HYPER 10G LAN card is up to 10 times faster than standard Gigabit Ethernet. Featuring Intel I225-V Ethernet, you can take advantage of the 2.5 Gigabit bandwidth to smoothly stream high-resolution videos and enjoy faster file transfers. One M.2 slot supports SATA and PCIe 3.0 x4 modes, and the other supports PCIe 3.0 x4 for NVMe, offering up to 32 Gbps data-transfer speeds and flexible M.2 interfaces. Onboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, high-res video streaming, and smoother lag-free gaming. ASUS ProArt Z490-CREATOR 10G offers simple and flexible tools that enhance almost every aspect of your content-creation system, giving you the fast, intuitive control needed for an efficient workflow. It features dynamic automated tuning with AI overclocking and AI cooling, in addition to CreationFirst software, which prioritizes and optimizes your network traffic for faster, lag-free online work. Creativity demands performance. An ASUS ProArt Z490-CREATOR 10G delivers excellent performance — no matter the task – to empower you to be productive and bring your ideas to life. ASUS ProArt Z490-CREATOR 10G was engineered and rigorously tested to ensure that it empowers creativity by offering superior quality, stability, and compatibility. ASUS ProArt Z490-CREATOR 10G motherboard enables productivity while also providing flawless audio for entertainment and the freedom to enjoy Aura Sync RGB lighting. High-quality components and layered design deliver flawless, immersive audio for entertainment. The addressable Gen 2 RGB header, which can detect the number of LEDs on second-generation addressable RGB devices, allows the software to automatically tailor lighting effects to specific devices. The header also offers backward-compatibility with existing Aura RGB gear.

What is the price of Asus PROART Z490-CREATOR Motherboard in Bangladesh?

The latest price of Asus PROART Z490-CREATOR Motherboard in Bangladesh is 29,000৳. You can buy the Asus PROART Z490-CREATOR Motherboard at best price from our website or visit any of our showrooms.
