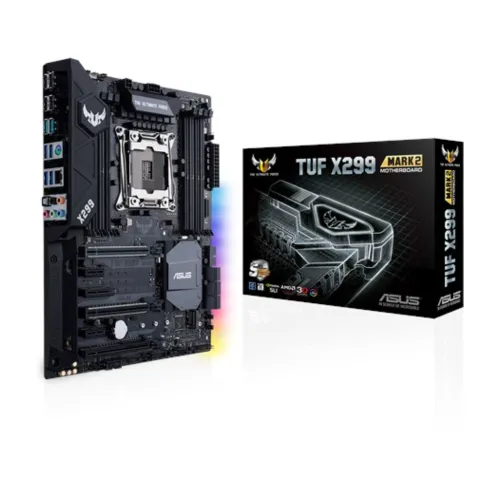

Asus TUF X299 MARK 2 Motherboard

Asus TUF X299 MARK 2 Motherboard

Price To be announced
Status Out Of Stock
Product Code 6393
Brand Asus

Key Features

  • Model: Asus TUF X299 MARK 2
  • Chipset- Intel X299
  • Supported CPU- Intel X-Series Processors
  • Intel Socket 2066
  • 8 x DIMM, Max. 128GB, DDR4 Memory
  • View More Info
Out Of Stock

Specification

Motherboard
ChipsetIntel® X299
Supported ProcessorsIntel® Socket 2066 Core™ X-Series Processors
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Max MemoryIntel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Onboard VideoIntel® X299 Chipset :
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology
Intel® Rapid Storage Technology 15 support
Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID
Intel® Optane™ Memory Ready
Onboard AudioRealtek® ALC S1220A 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
Onboard LANIntel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN
ASUS Turbo LAN Utility
Warranty03 Years warranty

Description

Asus TUF X299 MARK 2 Intel® LGA 2066 ATX DDR4 Motherboard
  • Thermal Radar 3 - Designed to keep systems stable while overclocking, Thermal Radar 3 delivers complete system cooling control and temperature monitoring options
  • Pro Clock II & T-Topology - Our Pro Clock II technology provides flexibility for fine-tuning system overclocks, while T-Topology enhances memory stability at higher frequencies
  • TUF components — Certified military-grade caps, chokes & MOSFETs for tough duty
  • Dual PCI Express® slots — Supports bridging of SLI graphics cards to deliver 1.5x greater transfer bandwidth
  • ASUS Aura Sync: Synchronize RGB lighting effects across an ever-expanding ecosystem of Aura Sync-enabled products

03 years warranty
