VSOL V2804AX15-R AX1500 Dual-Band Gigabit Wi-Fi 6 ONU Router

VSOL V2804AX15-R AX1500 Dual-Band Gigabit Wi-Fi 6 ONU Router

The VSOL V2804AX15-R is an advanced ONU router designed for fiber-to-the-home broadband networks. It supports XPON dual-mode technology for EPON and GPON connections. This FTTH device combines optical access, wired networking, and Wi-Fi connectivity. It suits fixed network operators and carrier-grade broadband deployments. It follows IEEE 802.3ah and ITU-T G.984 standards.

Wi-Fi 6 High-Speed Wireless Network

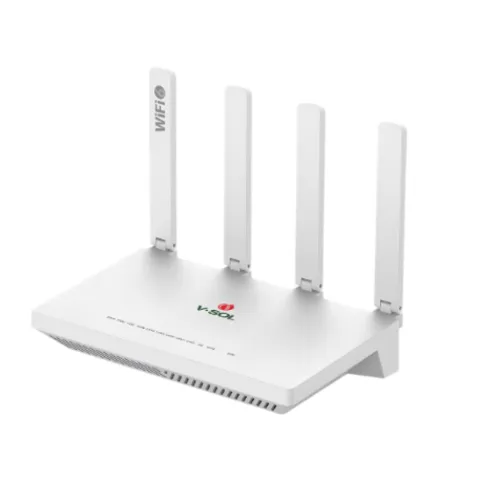

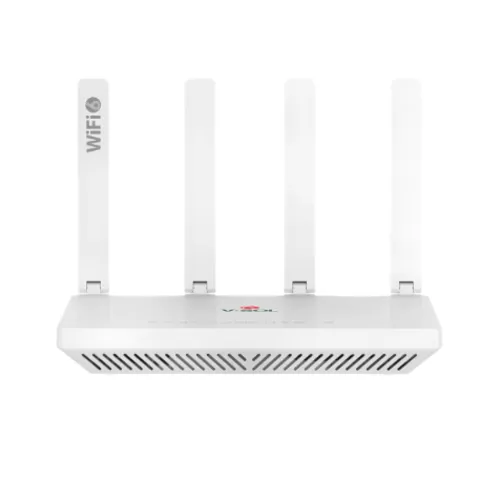

VSOL V2804AX15-R router provides Wi-Fi speeds reaching 1500 Mbps for connected devices. As a Wi-Fi 6 Router, it supports 802.11ax technology on the 5GHz band. It also supports Wi-Fi 4 on the 2.4GHz band. This dual-band router uses four external 5dBi antennas for broader wireless coverage. OFDMA, MU-MIMO, 1024-QAM, and Dynamic QoS support efficient wireless traffic handling.

Gigabit Ports and USB Connectivity

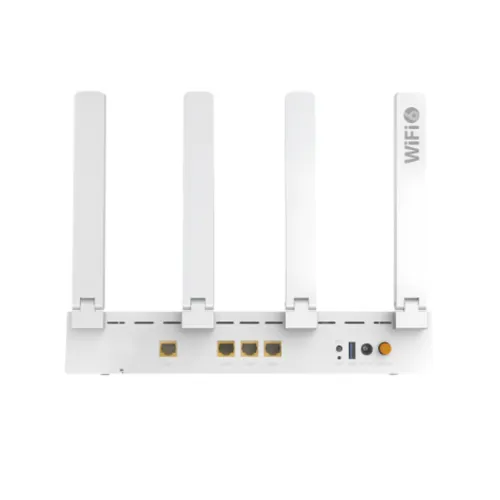

The VSOL V2804AX15-R router includes four Gigabit Ethernet ports for high-speed wired connections. Each RJ45 interface supports auto-negotiation for compatible network devices. This gigabit router also features one USB 3.0 port for supported USB services. Multiple indicators show power, PON, WAN, LAN, Wi-Fi, WPS, and USB status. These interfaces support home and FTTH network equipment requirements.

Advanced Network and Routing Features

With the router, users receive routing support with IPv4 and IPv6 compatibility. The device supports DHCP client and server functions, PPPoE, NAT, DMZ, and DDNS. IGMP v1/v2/v3 and IGMP snooping support multicast applications. The VSOL V2804AX15-R ONU router also supports VLAN, 802.1Q, 802.1ad, and 802.1p CoS functions. These features help manage different broadband traffic requirements.

Security and Remote Management

The VSOL V2804AX15-R router supports WEB, TELNET, OAM, OMCI, and TR-069 management methods. Private OAM and OMCI protocols support network administration through compatible VSOL OLT systems. Security functions include Anti-DDoS protection and ACL, MAC, and URL filtering. Wi-Fi encryption supports WEP, WPA, WPA2, and WPA3. Smart Connect can use one Wi-Fi name across both frequency bands.

Compact Design for FTTH Installations

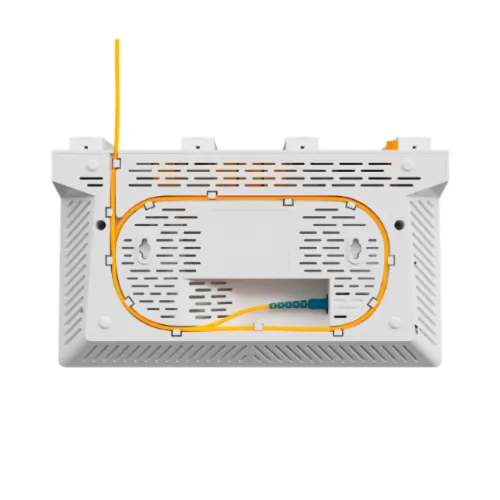

It measures 260.4 by 157.4 by 45.8mm and weighs 0.45kg. Its desktop and wall-mount design supports different installation environments. The device is available with black or white housing options. It operates from -10°C to +55°C with 5% to 95% humidity. With a 12V, 1.5A adapter, power consumption remains up to 18W. The VSOL V2804AX15-R router combines XPON access, Wi-Fi 6, Gigabit networking, and USB connectivity.
