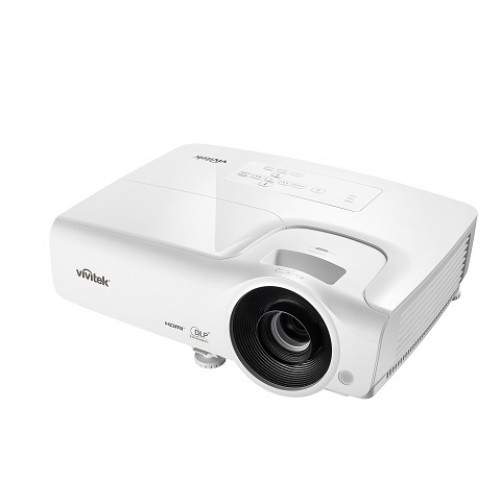

Vivitek BW566 DLP Projector

Vivitek BW566 DLP Projector

Price 48,000৳
Regular Price 51,000৳
Status Discontinued
Product Code 7176
Brand VIVItek


  • Model: Vivitek BW566
  • Resolution: WXGA (1280 x 800)
  • Brightness: 4,000 ANSI lumens
  • Lamp Wattage: 215 Watt
  • Lamp Life: 5,000 Hours
  • View More Info
0 Customer Review
Cash Discount Price


Projection Features
Display TypeSingle 0.65” DLP® Technology by TI
ResolutionNative Resolution: WXGA (1,280 x 800) ,
Maximum Resolution: WUXGA (1,920 x 1,200)
Brightness 4,000 ANSI Lumens
Projection Distance 1.3m – 8.5m (4.3’ - 28’)
Contrast Ratio30,000:1
Image Size 40" - 240"
Lamp Details
Lamp Power 210W
Lamp Life 5,000/7,000/10,000 Hours (Normal/Eco./Dynamic Eco),
Audio Formats31dB/28dB (Normal/Eco. Mode)
Built-in Speaker 2W (Mono)
InterfaceHDMI v1.4b (x2), Composite Video, S-Video, VGA-In (x2), Audio-In (Mini-Jack), VGA-Out, Audio-Out
PowerSupply: AC 100-240V, 50/60Hz Consumption: 203W (Eco. Mode), 240W (Normal Mode), <0.5W (Standby)
External Features
Weight2.6kg (5.7lbs)
Dimension331 x 244 x 105mm (13” x 9.6” x 4.1")
Manufacturing Warranty01 year warranty

Description :

Vivitek BW566 DLP Projector
  • Up to 4,000 ANSI lumens with a 30,000:1 contrast ratio
  • Native WXGA resolution with a maximum WUXGA resolution
  • DLP® and BrilliantColor™ technologies for distinct and vibrant images
  • Low cost of ownership and maintenance with an energy efficient lamp for up to 10,000 hours (Dynamic Eco. Mode) of usage
  • 6 segment (RGBYCW) color wheel for improved and vivid color reproduction
  • Manual zoom and focus for easy adjustment and positioning flexibility
  • Full suite of display connectivity inputs and outputs
  • 2W of total stereo audio power with multiple audio-in and audio-out ports
  • Choose from 8 pre-set display modes to get the most suitable display image
  • Top sided lamp cover for simple lamp removal and insertion
  • Intuitive multiple language OSD (On-screen Display) menu
  • Environmentally friendly with less than 0.5W of power in stand-by mode
  • Portable and lightweight at only 2.6kg (5.7lbs)
  • Anti-theft security features include: Kensington® security slot, and security bar
