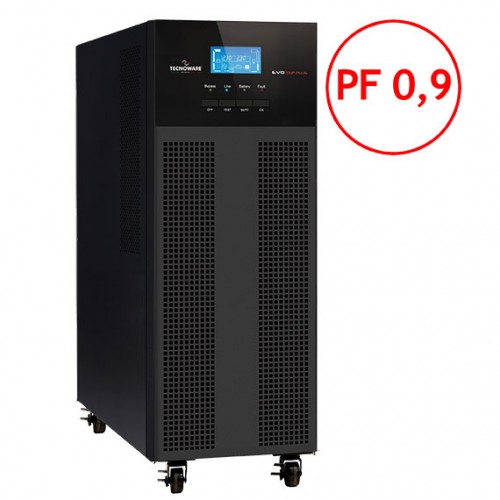

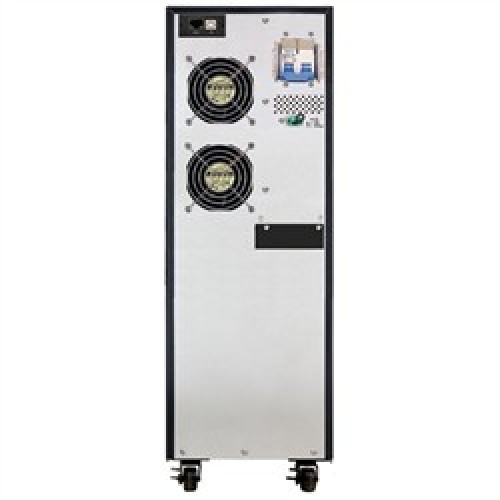

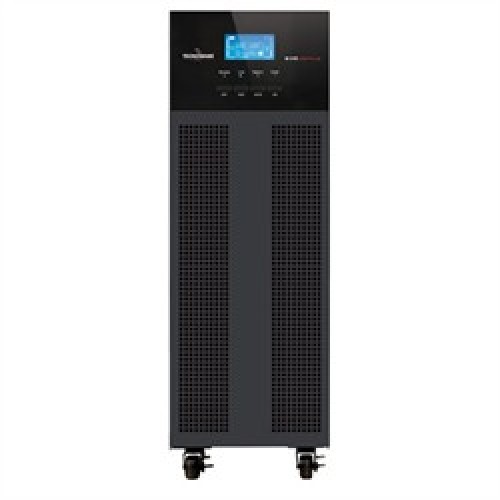

Tecnoware FGCEVDP6003MM Online UPS

Tecnoware FGCEVDP6003MM Online UPS
  • Tecnoware FGCEVDP6003MM Online UPS
  • Tecnoware FGCEVDP6003MM Online UPS
0 Customer Review
  • Brand: Tecnoware
  • Model: FGCEVDP6003MM
  • Product Code: 9533
  • Availability: In Stock

Highlights

  • Nominal power 6 KVA
  • Active Power 5.4 KW
  • Compatible with Generators
  • USB and RS232 ports
  • View More Info
80,000৳

Specification:

Basic Information
CapacityNominal power 6 KVA
Active power 5.4 KW
Load CapacityOverload capability (Line mode) 110% for 30 minutes, 130% for 5 minutes, >130% for 10 seconds
Overload capability (Battery mode) 110% for 3 minutes, 130% for 30 seconds, >130% for 10 seconds
Input Voltage RangeInput voltage range 176Vac-300Vac dal 50% al 100% di carico, 110Vac-300Vac fi no al 50% di carico
Output Frequency50/60 Hz
Noise Level< 48 dBA to 1 m
BatteryLead acid, sealed
Input Features
FrequencyNominal frequency 50/60 Hz (selectable)
Input frequency range (On-Line mode) ±7%
Power Factor0,99
Voltage RangeNominal voltage 208Vac/220Vac/230Vac/240Vac
Input voltage range 176Vac-300Vac dal 50% al 100% di carico, 110Vac-300Vac fi no al 50% di carico
Output Features
Backup Time10 min
VoltageVoltage Regulation at %100 ±2% linear load (On-Line and Battery mode)
Voltage THD at rated linear load <3% (linear load), <6% (non-linear load)
Transfer Time0 ms (On-Line)

Description :

Tecnoware FGCEVDP6003MM UPS On-Line Double Conversion Technology Without transformer (VFI-SS-111). Power Factor 0,9. Rectifier realized by IGBT technology. Active PFC Circuit (0.99). Compatible with Generators. Output voltage and frequency can be regulated from the front panel.Static Bypass. USB and RS232 ports
