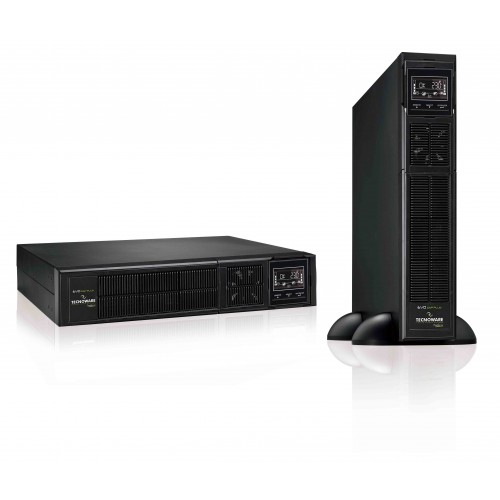

Tecnoware FGCEVDP3603MMRTE 3.000VA EVO DSP MM Online UPS
Product Page After Image | bKash Cashback

Tecnoware FGCEVDP3603MMRTE 3.000VA EVO DSP MM Online UPS

Price To be announced
Status Out Of Stock
Product Code 13334
Brand Tecnoware

Key Features

  • Model: Tecnoware FGCEVDP3603MMRTE
  • Convertible format (Rack 19" or Tower) with adjustable display
  • Power factor 0,9
  • Intelligent slot for SNMP or Dry Contact card
  • Compatible with Generators
  • View More Info
Call for Best Price: 01313717027
Out Of Stock

Specification

Main Feature
Input Voltage208Vac/220Vac/230Vac/240Vac
Output Voltage208Vac/220Vac/230Vac/240Vac (selectable)
Frequency (Battery Mode)50/60HZ
Noise Level < 45 dBA a 1 m
BatteryType: Lead acid, sealed, maintenance free
Backup time (Typical): 10 min
Rectifier TypeRectifier realized by IGBT technology
Input Features
Frequency50/60 Hz (selectable)
Power Factor0,99
Voltage Range110-300Vac
Output Features
Backup Time15-30 mins
Voltage RangeStatic voltage Regulation at %100 ±1% linear load (On-Line and battery mode): ±1%
Power FactorPower Factor 0,9
Type of WaveInverter waveform: Sinewave
Transfer Time0 ms (On-Line)
Rated powerVoltage THD at rated linear load: <2% (linear load), <8% (non-linear load)
Manufacture Warranty
Warranty02 Years Warranty

Description

Tecnoware FGCEVDP3603MMRTE 3.000VA EVO DSP MM Online UPS

Tecnoware FGCEVDP3603MMRTE Online UPS features with On-Line double conversion technology without transformer (VFI-SS-111), Power Factor 0,9. Here the Rectifier realized by IGBT technology with Active PFC Circuit (0.9). This UPS also Compatible with generators and EPO (Emergency Power Off). The Output voltage and frequency can be regulated from the front pane, Static and Manual Bypass. And here used Tecno Manager UPS Management Software. The UPS has 94% High Efficiency calculated in double conversion mode at 100% load, which is according to 62040-3: 2011 standard. This Online UPS also features with SINGLE-PHASE/SINGLE-PHASE 230/230 50/60HZ, POWER 3.000VA, COS 0,9, Online Double Conversion technology without transformer, DSP System, Multifunction LCD Display, Micro processor drived battery charge system, STATIC and MANUAL BYPASS, RS232 and USB, TECNOMANAGER Software. This New Online UPS comes with 02 Years warranty.

What is the price of Tecnoware FGCEVDP3603MMRTE Online UPS in Bangladesh?

The latest price of Tecnoware FGCEVDP3603MMRTE Online UPS in Bangladesh is 0৳. You can buy the Tecnoware FGCEVDP3603MMRTE Online UPS at best price from our website or visit any of our showrooms.
