close| Price | 310,000৳ |
| Regular Price | 325,000৳ |
| Status | In Stock |
| Product Code | 53746 |
| Brand | Solis |
| General Information | ||
| App Control | Yes | |
| Protection | Ingress protection IP66 | |
| Noise Level | < 65 dB(A) | |
| Others | Display: 7.0" LCD display & Bluetooth + APP PV connection: MC4 Quick connection plug Battery connection: Lever terminal AC connection: OT terminal Communication interface: Standard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel×2, RS485-Meter, RS485, DRM, DI, DO×3 |
|
| Output | ||
| AC Output | Output AC (Grid side) Rated output power: 20 kW Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V Rated grid output current: 30.4 A / 28.9 A Output AC (Back-up) Rated output power: 20 kW Back-up switch time: < 10 ms Rated output voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V |
|
| Input (Charging) | ||
| AC Input | Input AC (Grid side) Max. input power: 30 kW Input voltage range: 304 - 437 V / 320 - 460 V Max. input current: 45.6 A / 43.3 A |
|
| DC Input | Supported Battery type: Li-ion Battery voltage range: 120 - 800 V Max. charge / discharge current: 50 A Number of battery port / Number of BMS port: 1 / 1 Communication: CAN / RS485 |
|
| Solar Input | DC (PV side) Recommended max. PV array size: 40 kW Max. usable PV input power: 32 kW Max. input voltage: 1000 V Rated voltage: 600V Start-up voltage: 160 V MPPT voltage range: 200 - 850 V Max. current per DC input: 20 A |
|
| Generator Input | Input AC (Generator side) Max. input power: 20 kW Rated input current: 30.4 A / 28.9 A Rated input voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V Rated input frequency: 50 Hz / 60 Hz |
|
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 430 × 660 × 305 mm | |
| Weight | Approx. 35.2 kg |
|
| Warranty Information | ||
| Warranty | 5 Year Warranty | |

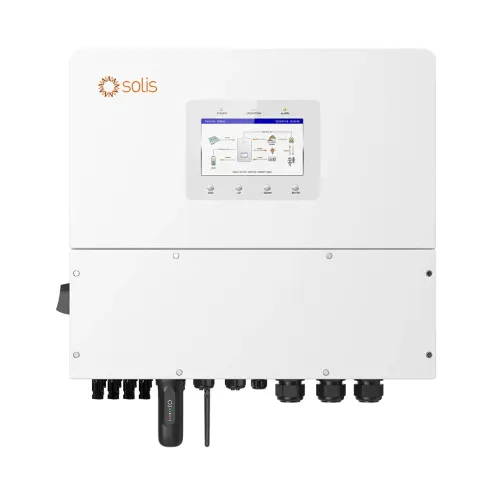

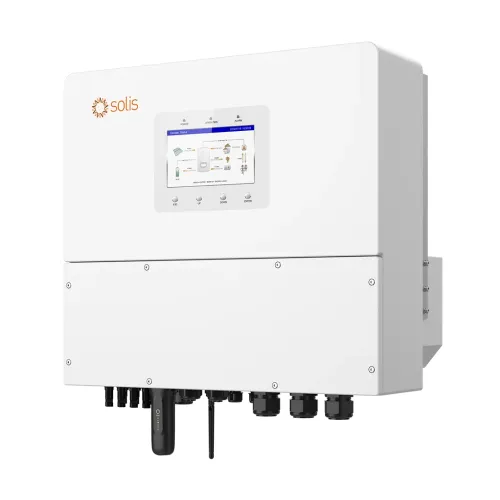

The Solis S6-EH3P20K-H 20kW Three Phase Hybrid Solar Inverter is designed for advanced solar power systems. It delivers 20 kW rated AC output power with maximum efficiency reaching 97.7%. This solar hybrid inverter supports grid-connected and backup power applications. Its 7-inch LCD display, Bluetooth connectivity, and mobile app control simplify system monitoring. With an IP66 protection rating, the unit suits demanding installation environments.
Featuring a maximum recommended PV array size of 40 kW, the Solis S6-EH3P20K-H hybrid inverter supports efficient solar energy management. It offers up to 32 kW of usable PV input power and a maximum DC voltage of 1,000V. Its MPPT voltage range spans 200–850V for effective solar energy harvesting. Compatible with lithium-ion batteries, this 20 kW hybrid inverter supports battery voltages from 120V to 800V and charging or discharging currents up to 50A.
The Solis S6-EH3P20K-H three-phase inverter provides 20 kW rated output for both grid-connected and backup operations. Its backup switching time is under 10 milliseconds, helping maintain power continuity during grid interruptions. Built-in protections include anti-islanding, DC reverse polarity, and overcurrent protection. Communication options include Wi-Fi, LAN, Bluetooth, CAN, and RS485 interfaces. Generator input support adds flexibility to integrated energy systems.

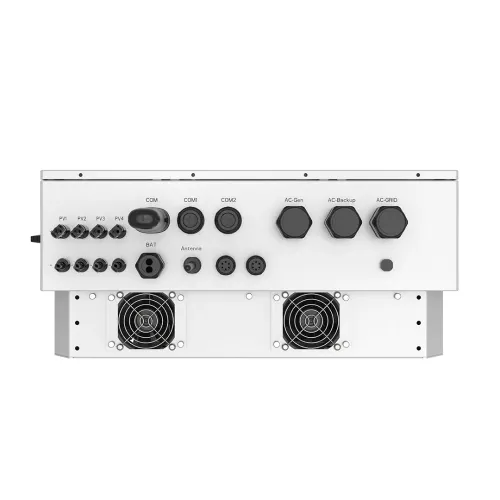

Designed for residential, commercial, and industrial solar installations, the Solis S6-EH3P20K-H solar inverter operates across temperatures from -25°C to +60°C. Its white enclosure measures 430 × 660 × 305 mm and weighs approximately 35.2 kg. The IP66-rated housing provides protection against dust and water ingress. MC4 PV connectors and dedicated battery and AC terminals support installation. This three-phase hybrid inverter combines high output capacity, battery integration, and intelligent monitoring.
In Bangladesh, you can get original Solis S6-EH3P20K-H 20kW Three Phase Hybrid Solar Inverter From Star Tech. We have a large collection of latest Inverter to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Solis S6-EH3P20K-H 20kW Three Phase Hybrid Solar Inverter comes with 5 Year warranty.
The latest price of Solis S6-EH3P20K-H 20kW Hybrid Solar Inverter in Bangladesh is 310,000৳. You can buy the Solis S6-EH3P20K-H 20kW Hybrid Solar Inverter at best price from our website or visit any of our showrooms.
