close| Price | 270,000৳ |
| Regular Price | 285,000৳ |
| Status | In Stock |
| Product Code | 53742 |
| Brand | Solis |
| General Information | ||
| App Control | Yes | |
| Protection | Ingress protection IP66 | |
| Noise Level | < 65 dB(A) | |
| Others | Display: 7.0" LCD display & Bluetooth + APP PV connection : MC4 Quick connection plug Battery connection: Screw terminal AC connection: Screw terminal Communication interface: Standard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel×2, RS485-Meter, RS485, DRM, DI |
|
| Output | ||
| AC Output | Output AC (Grid side) Rated output power: 10 kW Rated grid voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V Rated grid output current: 15.2 A / 14.4 A Output AC (Back-up) Rated output power: 10 kW Back-up switch time: < 10 ms Rated output voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V |
|
| Input (Charging) | ||
| AC Input | Input AC (Grid side) Max. input power: 15 kW Input voltage range: 323 - 437 V / 340 - 460 V Max. input current: 22.8 A / 21.7 A |
|
| DC Input | Supported Battery type: Li-ion / Lead-acid Battery voltage range: 40 - 60 V Max. charge / discharge current: 220 A Number of battery port / Number of BMS port: 2 / 1 Max. charge / discharge current of each port: 150 A Communication: CAN / RS485 |
|
| Solar Input | Input (PV Side) Recommended max. PV array size: 20 kW Max. usable PV input power: 16 kW Max. input voltage: 1000 V Rated voltage: 550 V Start-up voltage: 160 V MPPT voltage range: 200 - 850 V Max. current per DC input: 20 A |
|
| Generator Input | Input AC (Generator side) Max. input power: 10 kW Rated input current: 15.2 A / 14.4 A Rated input voltage: 3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V Rated input frequency: 50 Hz / 60 Hz |
|
| Environment | ||
| Operating Temperature | -25°C to +60°C | |
| Physical Information | ||
| Color | White | |
| Dimension | 430 × 660 × 305 mm | |
| Weight | Approx. 42 kg |
|
| Warranty Information | ||
| Warranty | 5 Year Warranty | |

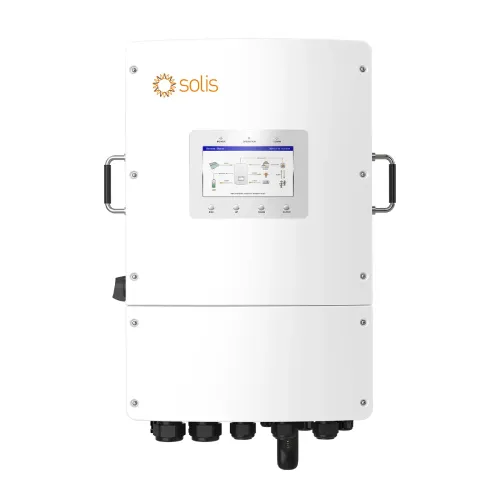

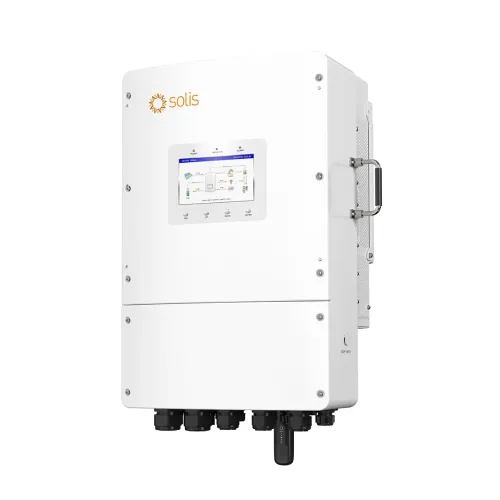

The Solis S6-EH3P10K02-NV-YD-L 10kW hybrid solar inverter supports three-phase power systems with low-voltage battery storage. This solar inverter delivers 10kW rated output power and achieves up to 97.5% maximum efficiency. It supports a recommended maximum PV array size of 20kW and usable solar input power up to 16kW. With a 1000V maximum PV input voltage, it supports effective solar energy conversion for residential and commercial installations.
Designed for flexible energy management, the Solis S6-EH3P10K02-NV-YD-L hybrid inverter supports lithium-ion and lead-acid batteries. Its battery voltage range spans 40–60V, with a maximum charge and discharge current of 220A. Two battery ports support storage integration, while CAN and RS485 communication enable battery monitoring. The 10 kW hybrid inverter also provides an MPPT voltage range of 200–850V for efficient solar energy harvesting.
The Solis S6-EH3P10K02-NV-YD-L three-phase inverter delivers 10kW grid output and 10kW backup output. Its backup switching time is under 10 milliseconds, helping maintain power during interruptions. Pure sine wave output supports compatible electrical equipment. Built-in protection includes anti-islanding, DC reverse polarity, and over-current safeguards. The IP66-rated enclosure offers protection against dust and water, with an operating temperature range of -25°C to +60°C.

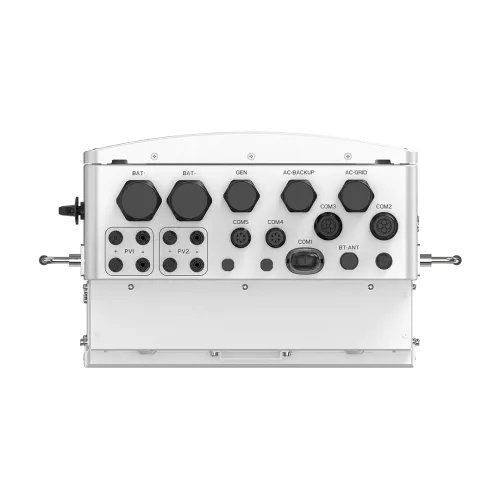

The Solis S6-EH3P10K02-NV-YD-L solar inverter features a 7-inch LCD display, Bluetooth, Wi-Fi, LAN, and app-based monitoring. Multiple communication interfaces support battery management, parallel connections, and meter integration. MC4 quick-connect plugs simplify PV wiring, while screw terminals handle battery and AC connections. Measuring 430 × 660 × 305mm and weighing approximately 42kg, this inverter provides advanced monitoring and energy control for modern solar power systems.
In Bangladesh, you can get original Solis S6-EH3P10K02-NV-YD-L 10KW Hybrid Solar Inverter From Star Tech. We have a large collection of latest Inverter to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Solis S6-EH3P10K02-NV-YD-L 10KW Hybrid Solar Inverter comes with 5 Year warranty.
The latest price of Solis S6-EH3P10K02-NV-YD-L 10KW Hybrid Inverter in Bangladesh is 270,000৳. You can buy the Solis S6-EH3P10K02-NV-YD-L 10KW Hybrid Inverter at best price from our website or visit any of our showrooms.
