| Price | To be announced |
| Status | Up Coming |
| Product Code | 43251 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| BIOS | Flash BIOS Button | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latches. |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz |
|
| Display Port (s) | 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| USB (s) | 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126VB 5G LAN | |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/b/g/n/ac/ax/be Supports Bluetooth 5.4, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations, and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated; please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

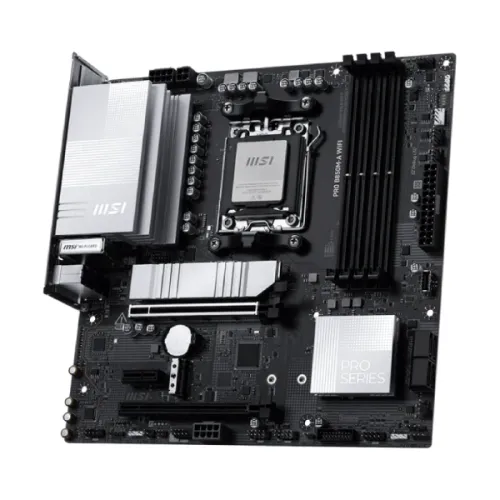

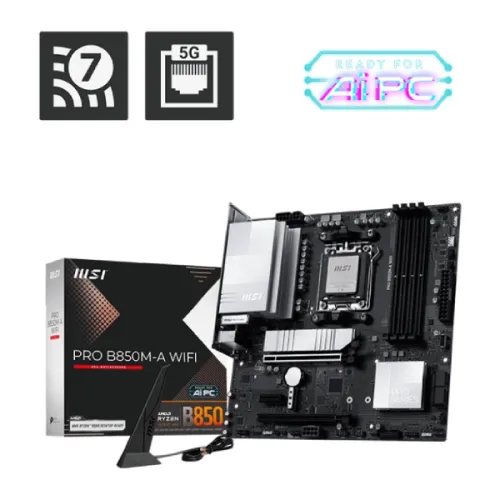

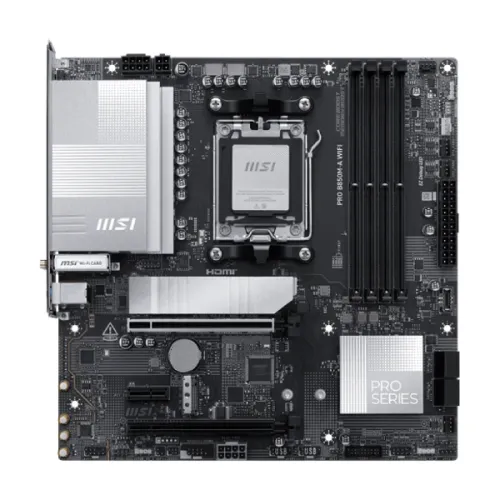

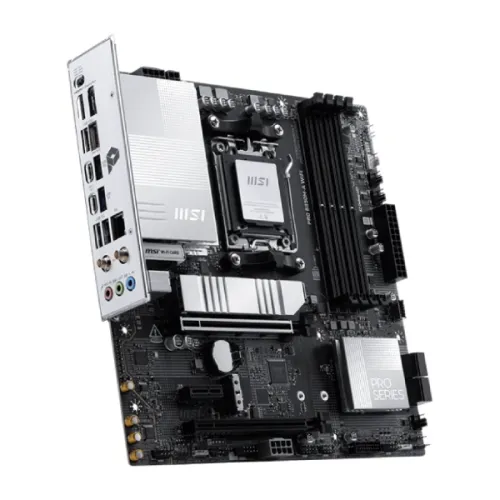

The MSI PRO B850M-A WIFI AM5 mATX Motherboard is a powerful and feature-rich solution that supports AMD Ryzen 9000, 8000, and 7000 desktop processors. This motherboard, built on the AM5 socket, has great memory support with four DDR5 UDIMM slots, allowing up to 256GB of RAM at rates of up to 8200+ MT/s for the Ryzen 9000 series. It supports AMD EXPO technology, memory overclocking, and dual-channel mode using non-ECC, unbuffered RAM. The MSI PRO B850M-A WIFI Motherboard includes integrated graphics connectors such as HDMI 2.1 and DisplayPort 1.4, which support 4K at 60Hz when combined with CPUs with integrated graphics. Expansion slots include two PCI-E x16 slots and one PCI-E x1 slot, with PCIe 5.0 capability on the primary x16 slot for Ryzen 9000 and 7000 series. The MSI PRO B850M-A WIFI Motherboard has two M.2 slots for PCIe 5.0 and 4.0, four SATA 6Gbps connections, and RAID support. The board incorporates the Realtek ALC897 for 7.1-channel HD audio and the Realtek 8126VB for 5G LAN connectivity. The MSI PRO B850M-A WIFI Motherboard features future-proof wireless connectivity, with built-in Wi-Fi 7 and Bluetooth 5.4, as well as dual-band MU-MIMO and excellent data speed. The rear I/O features USB 10Gbps Type-A and Type-C ports, USB 5Gbps ports, and audio jacks, while the internal headers enable USB 2.0, additional USB 5Gbps and 10Gbps ports, RGB and ARGB lighting, TPM 2.0, and various fan connectors. EZ Debug and EZ Memory Detection LEDs help in troubleshooting. The MSI PRO B850M-A WIFI AM5 mATX Motherboard, with a compact mATX PCB dimension of 243.84mm x 243.84mm, provides high-end performance, broad connectivity, and next-generation capabilities, making it a versatile and dependable solution for gamers, professionals, and system builders using Windows 11 64-bit systems.
In Bangladesh, you can get original MSI PRO B850M-A WIFI AM5 mATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI PRO B850M-A WIFI AM5 mATX Motherboard comes with 3 years warranty.
The latest price of MSI PRO B850M-A WIFI Motherboard in Bangladesh is 0৳. You can buy the MSI PRO B850M-A WIFI Motherboard at best price from our website or visit any of our showrooms.
