MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard
  • MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard
  • MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard
  • MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard
  • MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard
Product Page After Image | bKash Cashback

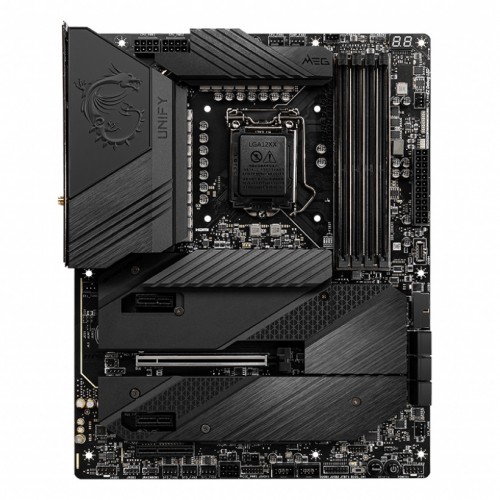

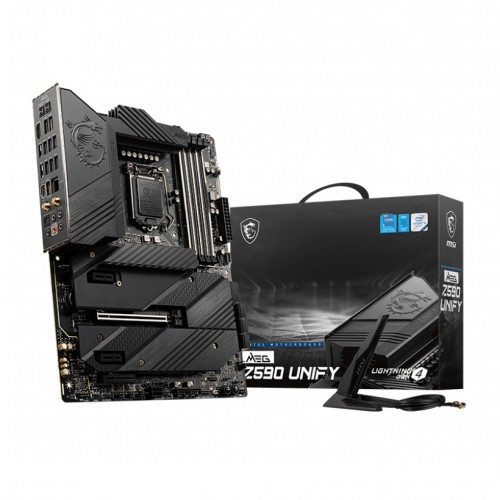

MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 17506
Brand MSI

Key Features

  • Model: MEG Z590 UNIFY
  • Supports 10th & 11th Gen Intel processors for LGA 1200 socket
  • 2x DDR4 slots, up to 128GB, 5600(OC) MHz
  • Quadruple M.2 Connectors
  • 2.5G LAN with latest Wi-Fi 6E
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel Z590 Chipset
Form FactorATX Form Factor
AudioRealtek ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI1x PCIe x16 slot (PCI_E2, from CPU)
Supports up to PCIe 4.0 x16 with11th Gen CPU
Supports up to PCIe 3.0 x16 with10th Gen CPU
1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset)
2x PCIe 3.0 x1 slots (from Z590 chipset)
M.2 Socket4x M.2 slots (Key M)
M2_1 (from CPU)
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21, M2_32 slots
Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default)
Support up to PCIe 4.0 x4 (from CPU, by BIOS selection)
M2_2 supports 2242/ 2260/ 2280 storage devices
M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices
M2_4 slot (from Z590 chipset)
Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Memory
TypeDDR4
Slots2x DDR4 memory slots
Supported MemorySupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5600 MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC mode, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum MemorySupport up to 128GB
Graphics
Graphics1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Supports 2-Way AMD CrossFire Technology
Connector & Ports

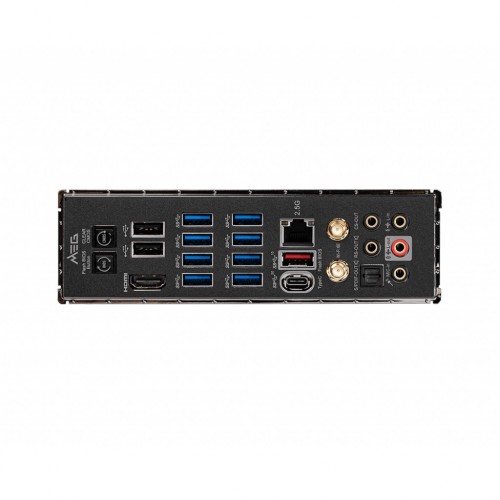

HDMI1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
USB (s)Intel Z590 Chipset
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector)
10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector)
2x USB 2.0 ports on the back panel
Hub-GL850G
4x USB 2.0 ports through internal USB 2.0 connector
LAN Port (s)1x Intel I225-V 2.5Gbps LAN controller
Wireless Communication moduleIntel WiFi 6E AX210
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage6x SATA 6Gb/s ports (from Z590 chipset)
4x M.2 slots (Key M)
M2_1 (from CPU)
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2, M2_3 slots
Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default)
Support up to PCIe 4.0 x4 (from CPU, by BIOS selection)
M2_2 supports 2242/ 2260/ 2280 storage devices
M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices
M2_4 slot (from Z590 chipset)
Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
Audio1x Front panel audio connector
Internal I/O Ports1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin ATX PCIE power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 2-pin Thermal Sensors connector
1x Tuning Controller connector
1x TBT connector (Supports RTD3)
TPM (Trusted Platform Module )1xTPM module connector
Warranty Information
Manufacturing Warranty03 years warranty

Description

MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard

MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard support 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket. it supports DDR4 Memory, up to 128GB 5600(OC) MHz. It is dedicated for Extreme OC. The top-notch R&D design and exclusive 2 DIMM solution deliver world-class memory performance. it features Quadruple M.2 Connectors. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. It supports Extreme Power Design, INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors, and exclusive Mirrored Power Arrangement to unleash the true power of your processors. It comes with an Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure extreme performance with low temp. Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience. Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. It has a Smart Button, One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan, and EZ LED control functions with just one click. 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise. It has 3 years of warranty.

What is the price of MSI MEG Z590 UNIFY ATX Motherboard in Bangladesh?

The latest price of MSI MEG Z590 UNIFY ATX Motherboard in Bangladesh is 22,500৳. You can buy the MSI MEG Z590 UNIFY ATX Motherboard at best price from our website or visit any of our showrooms.
