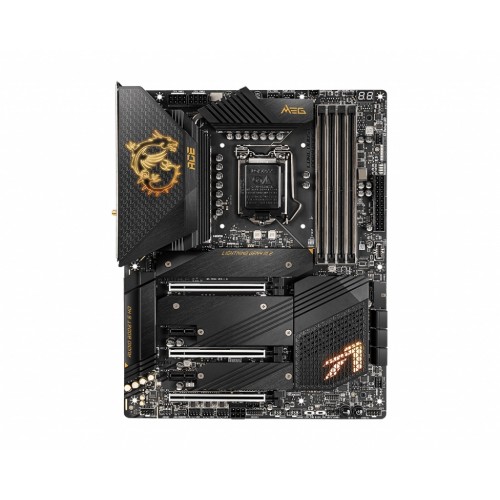

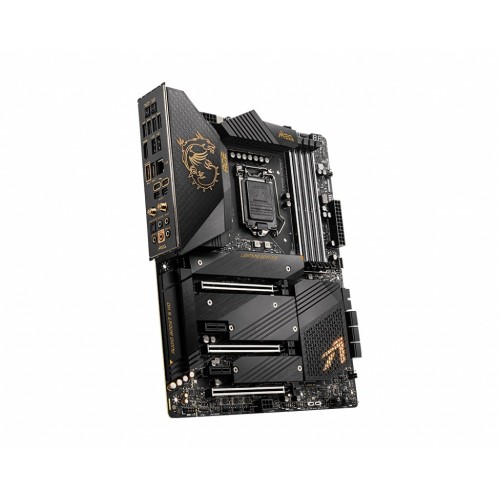

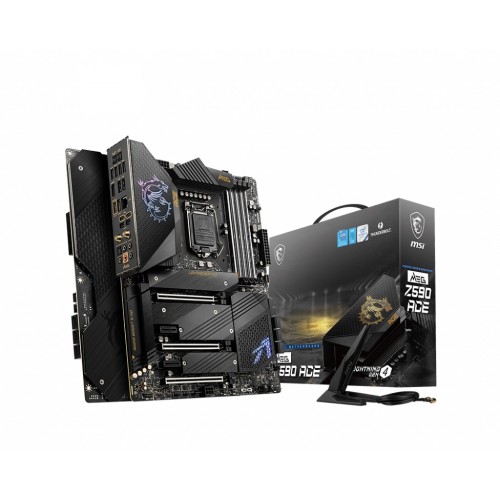

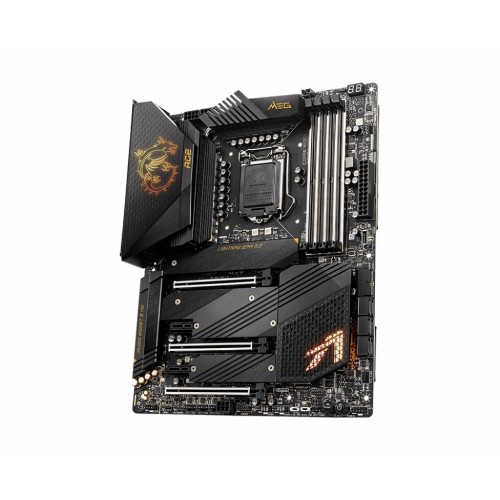

MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard

MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard

Price To be announced
Status Discontinued
Product Code 16846
Brand MSI

Key Features

  • Model: MEG Z590 ACE Gaming
  • Supports 11th and 10th Gen Intel Core / Pentium Celeron processors
  • Supports DDR4 Memory, up to 5600(OC) MHz
  • Quadruple M.2, LGA 1200 socket
  • 2.5G LAN with latest Wi-Fi 6E
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron® Processors1
Processor socket LGA1200
ChipsetIntel Z590 Chipset
Form FactorATX Form Factor
Audio7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI3x PCIe x16 slots
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
PCI_E1 & PCI_E3 slots (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E5 slot (From Z590 chipset)
Supports up to PCIe 3.0
2x PCIe 3.0 x1 slots (From Z590 chipset)
M.2 Socket4x M.2 slots (Key M)
Memory
TypeDDR4
Slots4x DDR4 memory slots
Supported MemorySupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1
Max overclocking frequency:
1DPC 1R Max speed up to 5600 MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memorysupport up to 128GB
Graphics
Graphics1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1

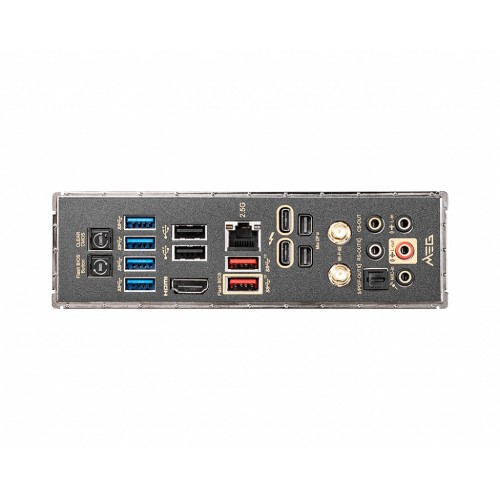

Connector & Ports
USB (s)3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector)
2x USB 2.0 Type-A ports on the back panel
Hub-GL850G
4x USB 2.0 ports through internal USB connectors
LAN Port (s)1x Intel I225V 2.5Gbps LAN controller
Supported Storage6x SATA 6Gb/s ports (from Z590 chipset)
4x M.2 slots (Key M)
M2_2, M2_3, M2_4 slots (from Z590 chipset)
Audio1x Front panel audio connector
Internal I/O Ports1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Tuning Controller connector
TPM (Trusted Platform Module )1x TPM module connector
Others
Special Features Intel Wi-Fi 6E AX210
Warranty Information
Manufacturing Warranty03 years warranty

Description

MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard

MSI MEG Z590 ACE Gaming Motherboard Supports 11th and 10th Gen Intel Core Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5600(OC) MHz, The motherboard has Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. The Motherboard comes with Extreme Power Design, that INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors. The Motherboard has Outstanding Cooling Solution, that Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp. It has 2.5G LAN with latest Wi-Fi 6E Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience. The Motherboard has One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click. It is also featured with 8 Layer PCB with 2oz Thickened Copper, that Provides higher performance and long-lasting system stability without any compromise. Here, the Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience. This latest MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.

What is the price of MSI MEG Z590 ACE Gaming 10th Gen and 11th Gen ATX Motherboard in Bangladesh?

The latest price of MSI MEG Z590 ACE Gaming 10th Gen and 11th Gen ATX Motherboard in Bangladesh is 53,300৳. You can buy the MSI MEG Z590 ACE Gaming 10th Gen and 11th Gen ATX Motherboard at best price from our website or visit any of our showrooms.
