MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
  • MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

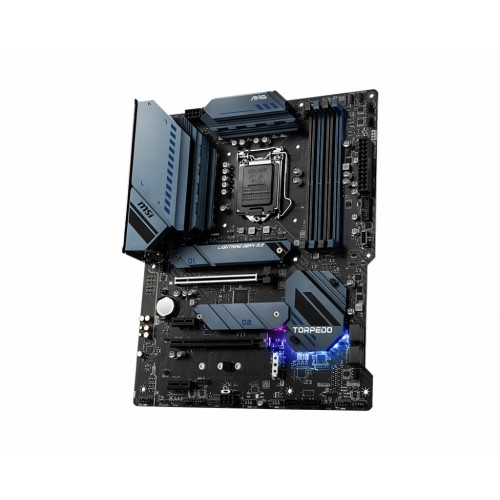

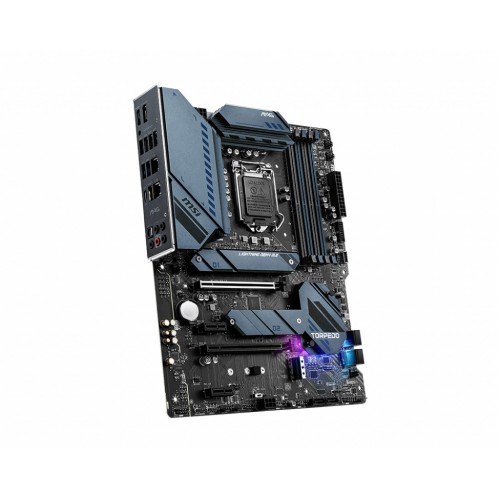

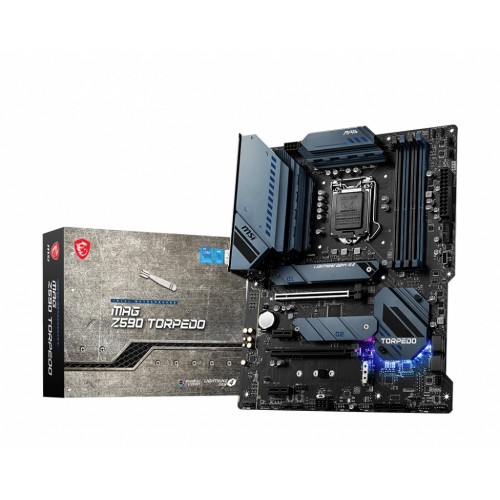

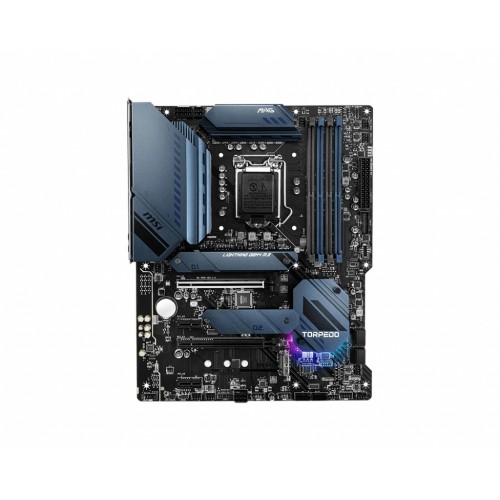

MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard

Price To be announced
Status Discontinued
Product Code 16875
Brand MSI

Key Features

  • Model: MAG Z590 TORPEDO
  • Supports 10th Gen , 11th Gen Intel Core, Pentium Gold and Celeron processors
  • DDR4 Memory, up to 5333(OC) MHz
  • Lightning USB 20G, Lightning M.2
  • LGA 1200 socket
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors
Processor socket LGA1200
ChipsetIntel Z590 Chipset
Form FactorATX Form Factor
Audio7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI2x PCIe x16 slots
1x PCIe 3.0 x16 slot (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E3 (From Z590 chipset)
Support up to PCIe 3.0 x4
2x PCIe 3.0 x1 slots (From Z590 chipset)
M.2 Socket3x M.2 slots (Key M)
Memory
TypeDDR4
Slots4x DDR4 memory slots
Supported MemorySupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memorysupport up to 128GB
Graphics
Graphics1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

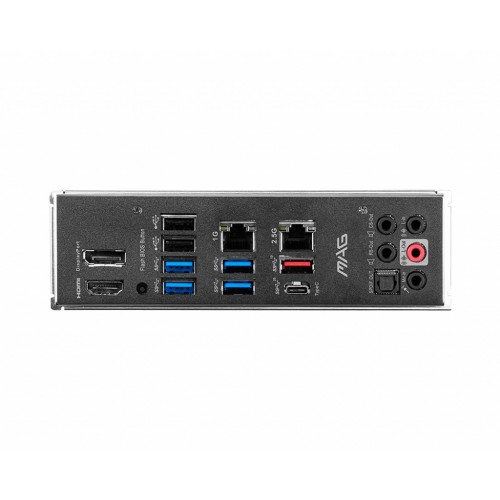

Connector & Ports
USB (s)1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
1x USB 2.0 Type-A port on the back panel
Hub-GL850G
5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
LAN Port (s)1x Intel I225-V 2.5Gbps LAN controller
1x Intel I219-V 1Gbps LAN controller
Supported Storage6x SATA 6Gb/s ports (From Z590 chipset)
3x M.2 slots (Key M)
Audio1x Front panel audio connector
Internal I/O Ports1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector
TPM (Trusted Platform Module )1x TPM module connector
Warranty Information
Manufacturing Warranty03 years warranty

Description

MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard

MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. The MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. MSI MAG Z590 TORPEDO ATX Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5333(OC) MHz. This Motherboard Premium has Thermal Solution that Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. This Motherboard has Latest Network Solution Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag & Lightning M.2, Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. It has Lightning USB 20G, that has Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C. It's AUDIO BOOST 5 Reward your ears with studio grade sound quality for the most immersive gaming experience. The latest MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.

What is the price of MSI MAG Z590 TORPEDO 10th Gen and 11th Gen ATX Motherboard in Bangladesh?

The latest price of MSI MAG Z590 TORPEDO 10th Gen and 11th Gen ATX Motherboard in Bangladesh is 22,300৳. You can buy the MSI MAG Z590 TORPEDO 10th Gen and 11th Gen ATX Motherboard at best price from our website or visit any of our showrooms.
