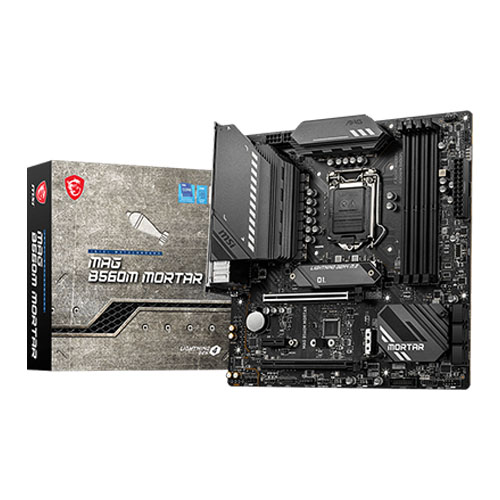

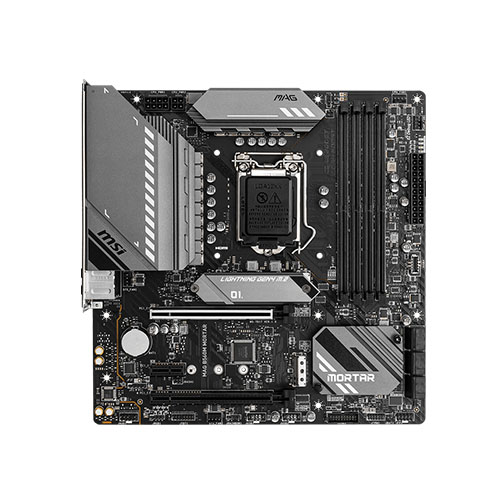

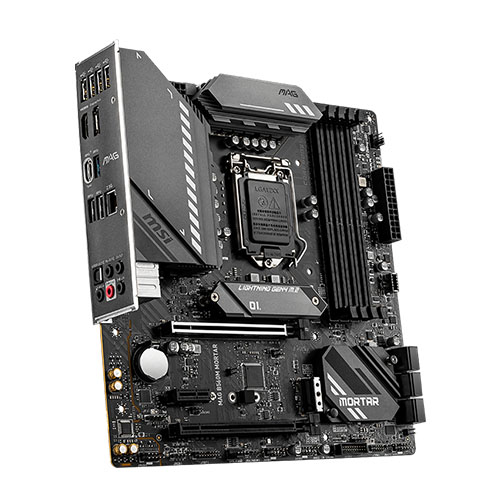

MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard
  • MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard
  • MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard

Price To be announced
Status Discontinued
Product Code 16162
Brand MSI

Key Features

  • Model: MAG B560M MORTAR
  • Supports 10th & 11th Gen Processors, Pentium Gold & Celeron Processors, LGA1200
  • Supports DDR4 RAM up to 5066(OC) MHz
  • Supports 2-Way AMD CrossFire Technology
  • Extended Heatsink Design and M.2 Shield
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA1200 socket
ChipsetIntel B560 Chipset
Form FactorM-ATX
Audio7.1-Channel High Definition Audio
Expansion Slots
PCI2x PCIe x16 slots
Support x16/ x4

-PCI E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU

-PCI E3 (From B560 chipset)
Support up to PCIe 3.0

1x PCIe 3.0 x1 slot
PCI E2 (From B560 chipset)

PCI E3 will be unavailable when installing M.2 SSD in M2 2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI E3 and set x2 for M2 2 in BIOS.
M.2 Socket2x M.2 slots (Key M)
Memory
TypeDDR4
Slots4 x DIMM slots
Supported MemorySupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066+ MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

Maximum MemoryUp to 128GB
Graphics
Graphics1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Supports 2-Way AMD CrossFire Technology
Connector & Ports
HDMI1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Display Port (s)1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
USB (s)Intel B560 Chipset:
1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector
4x USB 2.0 ports on the back panel
USB Hubs ASM1074:
3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Hub-GL850G:
4x USB 2.0 ports are available through the internal USB 2.0 connectors
LAN Port (s)1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage6x SATA 6Gb/s ports (from B560 chipset)
2x M.2 slots (Key M)

-M2 slot 1:
Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)
Supports 2242/ 2260/ 2280 storage devices

-M2 slot 2 (From B560 chipset):
Supports up to PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
AudioRealtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Internal I/O Ports1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x Tuning Controller Connector
1x TBT connector (Supports RTD3)
TPM (Trusted Platform Module )1x TPM module connector
Warranty Information
Manufacturing Warranty03 years Warranty

Description

MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard

MSI MAG B560M MORTAR 10th and 11th Gen Micro ATX Motherboard comes with MSI lightning Gen 4 PCI-E which is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. It supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors (socket LGA1200). With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. It has 4 x DDR4 memory slots and it supports up to 128GB. It also supports dual-mode. This motherboard supports 2x PCIe x16 slots and supports up to PCIe 3.0. It has 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz and 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz. It also supports 2-Way AMD CrossFire Technology. it features 6x SATA 6Gb/s ports (from B560 chipset) and 2x M.2 slots (Key M) for storage. it comes with Intel Smart Response Technology for Intel Core processors. It has a 7.1-Channel High Definition Audio and also supports S/PDIF output. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting an MSI AI ENGINE. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has a 3 years warranty.

What is the price of MSI MAG B560M MORTAR Motherboard in Bangladesh?

The latest price of MSI MAG B560M MORTAR Motherboard in Bangladesh is 12,800৳. You can buy the MSI MAG B560M MORTAR Motherboard at best price from our website or visit any of our showrooms.
