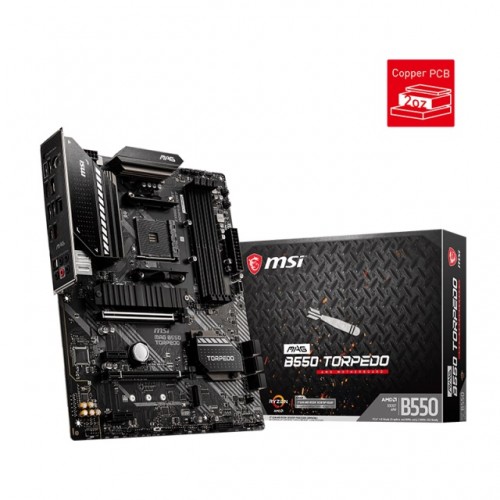

MSI MAG B550 TORPEDO AM4 ATX Motherboard
  • MSI MAG B550 TORPEDO AM4 ATX Motherboard
  • MSI MAG B550 TORPEDO AM4 ATX Motherboard
  • MSI MAG B550 TORPEDO AM4 ATX Motherboard
Product Page After Image | AC Deal

MSI MAG B550 TORPEDO AM4 ATX Motherboard

Price To be announced
Status Up Coming
Product Code 17859
Brand MSI

Key Features

  • Model: MAG B550 TORPEDO
  • Supports Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series processors
  • Supports DDR4, up to 5100+(OC) MHz
  • 10+2+1 Duet Rail Power System
  • Premium Thermal Solution
  • View More Info
Up Coming

Specification

Basic Information
Supported CPUSupports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
ChipsetAMD B550 Chipset
Form FactorATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Expansion Slots
PCI1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
2x PCIe 3.0 x1 slots
M.2 SocketM2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Memory
TypeDDR4
Slots4 x memory slots
Supported MemorySupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733/ 4800/ 4866+ MHz by A-XMP OC MODE
1DPC 1R max speed 4866 MHZ
1DPC 2R max speed 3866 MHZ
2DPC 1R max speed 4000 MHZ
2DPC 2R max speed 3600 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Memory128GB
Graphics
Graphics1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz
Support HDCP 1.4 & 2.3
1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz
Supports 2-Way AMD CrossFire Technology
Max Shared Memory16GB
Connector & Ports
HDMI1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz
Display Port (s)1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz
USB (s)AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)1x Realtek RTL8125B 2.5Gbps LAN controller
Supported StorageAMD B550 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
AudioRealtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Internal I/O Ports1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x Clear CMOS jumper
TPM (Trusted Platform Module )1x TPM module connector
Warranty Information
Manufacturing Warranty03 Years Warranty

Description

MSI MAG B550 TORPEDO AM4 ATX Motherboard

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

PREMIUM HARDWARE DESIGN

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield Frozr is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

ENHANCED PERFORMANCE

MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

CONNECTIVITY

MAG B550 TORPEDO features high-bandwidth and low-latency 2.5G LAN for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

What is the price of MSI MAG B550 TORPEDO Motherboard in Bangladesh?

The latest price of MSI MAG B550 TORPEDO Motherboard in Bangladesh is 17,800৳. You can buy the MSI MAG B550 TORPEDO Motherboard at best price from our website or visit any of our showrooms.
