MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard
  • MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard
  • MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard
  • MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard
  • MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard

Price To be announced
Status Out Of Stock
Product Code 10971
Brand MSI

Key Features

  • Model: MSI H310M Pro-M2 Plus
  • Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151
  • EZ Debug LED: For troubleshoot
  • Audio Boost: studio grade sound
  • PCI-E Steel Slot: Protecting VGA cards
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUSupports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
ChipsetIntel H310 Chipset
Form Factorm-ATX Form Factor
9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
Expansion Slots
PCI1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots
M.2 Socket1 x M.2 slot (Key M)
Support up to PCIe 2.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
Memory
TypeDual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Slots2 x DDR4 memory slots
Supported MemorySupports DDR4 2666/ 2400/ 2133 MHz
Maximum Memory32GB
Graphics
Graphics1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

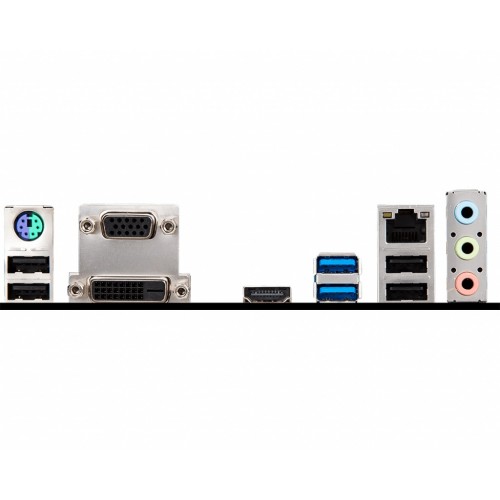

Connector & Ports
HDMI1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
DVI-D (s)1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
USB (s)Intel H310 Chipset
4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
LAN Port (s)1 x Intel I219-V Gigabit LAN controller
Supported StorageIntel H310 Chipset
4 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)
Support up to PCIe 2.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
AudioRealtek ALC887 Codec
7.1-Channel High Definition Audio
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
1 x Serial port connector
2 x Front panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x TPM module connector
Warranty Information
Manufacturing Warranty03 years

Description

MSI H310M Pro-M2 Plus Intel Motherboard

The MSI H310M Pro-M2 Plus Intel Motherboard is designed to fully utilize the Intel Coffee Lake 6 core processors, ready to deliver world class performance when gaming. Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance. Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max. Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user. This MSI product supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you noticeable benefits. Start programs faster, load data faster and increase productivity. Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes. Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data. MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds! With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

What is the price of MSI H310M Pro-M2 Plus Motherboard in Bangladesh?

The latest price of MSI H310M Pro-M2 Plus Motherboard in Bangladesh is 6,700৳. You can buy the MSI H310M Pro-M2 Plus Motherboard at best price from our website or visit any of our showrooms.

Questions (7)

Have question about this product? Get specific details about this product from expert.

Ismail Hossain on 07 May 2021

Q: Does this motherboard support dual core processor?

A: Yes sir, MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard supports dual core processor.

By Star Tech Support 07 May 2021

Sagar Chandra Pal on 14 Dec 2020

Q: Does this motherboard supports Intel core i5 7400.

A: No Sir Intel core i5 7400 processor will not support on MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard.

By Star Tech Support 14 Dec 2020

Srabon shahriar on 29 Sep 2020

Q: Can I run asus Geforce 1030 graphics card on it?

A: Yes Sir you can run Asus Geforce 1030 graphics card on MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard

By Star Tech Support 29 Sep 2020

Mostakim on 10 Jul 2020

Q: CAN I RUN ASUS GEFORCE GT710 2GB DDR5 GRAPHICS CARD WITH THIS MOTHERBOARD

A: Yes Sir, you can run the ASUS GEFORCE GT710 2GB DDR5 GRAPHICS CARD on the MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard, but you will get 100% bottleneck issue using the 9th Generation Processor.

By Star Tech Support 10 Jul 2020

MOSTAKIM on 10 Jul 2020

Q: CAN I RUN DUAL CHANNEL TEAM VULCAN Z 8 GB DDR4 2666MHG RAM

A: Yes Sir, you can run DUAL CHANNEL TEAM VULCAN Z 8 GB DDR4 2666MHG RAM on the MSI H310M Pro-M2 Plus Intel 9th Gen Motherboard.

By Star Tech Support 10 Jul 2020
