| Price | 140,000৳ |
| Regular Price | 154,000৳ |
| Status | In Stock |
| Product Code | 51835 |
| Brand | MARSRIVA |
| General Information | ||
| Battery Type | Lead-acid / Lithium / User-defined | |
| Rated AC Output Power | 12kVA / 12kW | |
| AC Peak/ Surge Output Power | 24000VA | |
| UPS Transfer Time | 10ms (For PC); 20ms (For Home Appliances) | |
| Connectivity | USB, RS232, BMS(485,CAN), WiFi Module, Dry-contact | |
| Protection | 63VDC Overcharge Protection | |
| Others | Dual outputs, for smart load management Status indication with RGB lights Built-in Wi-Fi for mobile monitoring (Android/iOS App available) Supports USB On-the-Go function Replaceable fan design for ease of maintenance Battery independent design Selectable high power charging current Compatible to Utility Mains or generator input Built-in anti-dust kit Optional DC output for DC fan, LED bulb and so on Parallel operation with 6 units |
|
| Output | ||
| AC Output | 230VAC ± 5% Nominal Output Frequency: 50Hz / 60Hz |
|
| DC Output | 12VDC ± 5%, 100W | |
| Output Waveform | Pure sine wave | |
| Others | Surge Power: 2 times of rated power Peak Efficiency: 95% at Line mode, 93% at Inverter mode |
|
| Input (Charging) | ||
| AC Input | 230VAC (Nominal) 170 – 280VAC (For PC); 90 – 280VAC (For Home Appliances) (Selectable) |
|
| Solar Input | Max. PV Array Open Circuit Voltage: 500VDC Max. PV Input Current: 27A*2 (MAX. 45A) |
|
| Grid/ Wall Input | 200A | |
| Physical Information | ||
| Dimension | 147.4 × 432.5 × 553.6mm (W x H x D) | |
| Weight | 18.4 kg | |
| Warranty Information | ||
| Warranty | 2 years | |

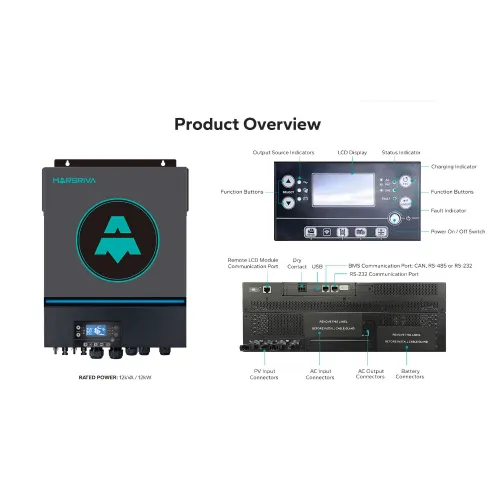

The Marsriva MR-SPF12K-LP1-TL20E 12kW Hybrid Solar Inveter suitable for larger installations. It features a single-phase, high-frequency design with IP20 protection rating included. The Marsriva Hybrid Solar Inveter supports dual outputs, enabling smart load management across connected devices. Maximum PV input current reaches 27A, ensuring efficient solar energy conversion capacity.
This Marsriva 12kW Hybrid Solar Inveter includes built-in Wi-Fi for convenient mobile monitoring through dedicated apps. RGB status lights provide clear, at-a-glance system status indication for users. The Marsriva Solar Inveter supports USB On-the-Go functionality alongside reserved BMS communication ports. It works with RS485, CAN-BUS, or RS232 protocols for flexible battery management.
This inverter features a replaceable fan design, simplifying long-term maintenance and servicing tasks. Battery independent design allows flexible configuration across different battery types and setups. The Marsriva MR-SPF12K-LP1-TL20E 12kW Solar Inveter offers selectable high power charging current options. It remains compatible with utility mains or generator input for backup flexibility.
Built-in anti-dust protection extends the unit's operational lifespan in demanding environments. Optional DC output supports DC fans, LED bulbs, and similar low-power devices. This Marsriva MR-SPF12K-LP1-TL20E 12kW Hybrid Solar Inveter supports parallel operation with up to six units simultaneously. Output voltage regulates at 230VAC with pure sine wave output for stability.
Peak efficiency reaches 95% in line mode and 93% in inverter mode. Battery nominal voltage runs at 48VDC, with overcharge protection at 63VDC. Maximum PV array power reaches 15000W, supporting substantial solar panel configurations effectively. This Marsriva 12kW Solar Inveter suits residential and commercial solar installations requiring dependable performance.
In Bangladesh, you can get original Marsriva MR-SPF12K-LP1-TL20E 12kW Hybrid Solar Inveter From Star Tech. We have a large collection of latest Marsriva Inverter to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Marsriva MR-SPF12K-LP1-TL20E 12kW Hybrid Solar Inveter comes with 1 year warranty.
The latest price of Marsriva MR-SPF12K-LP1-TL20E 12kW Solar Inveter in Bangladesh is 140,000৳. You can buy the Marsriva MR-SPF12K-LP1-TL20E 12kW Solar Inveter at best price from our website or visit any of our showrooms.
