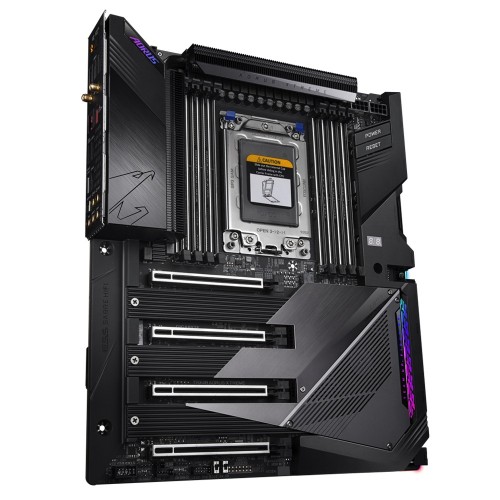

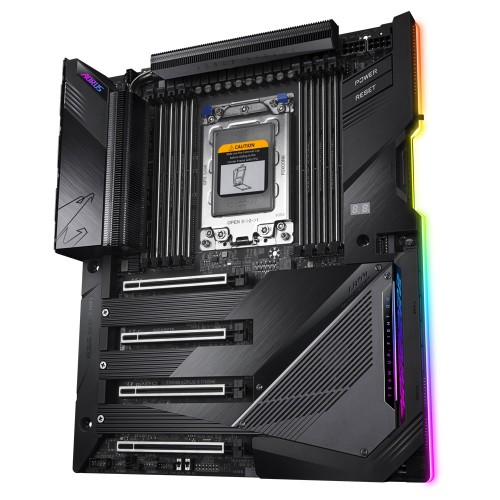

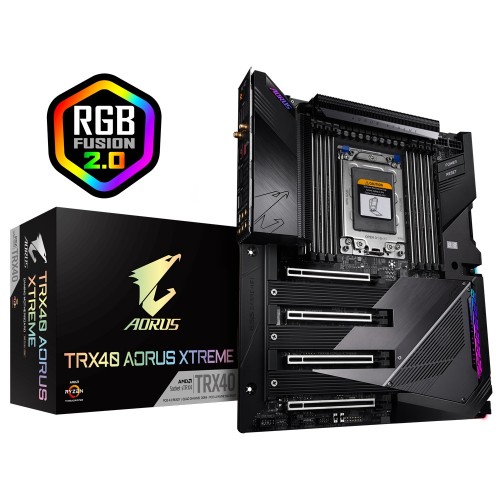

GIGABYTE TRX40 AORUS Xtreme AMD XL-ATX Motherboard
  • GIGABYTE TRX40 AORUS Xtreme AMD XL-ATX Motherboard
  • GIGABYTE TRX40 AORUS Xtreme AMD XL-ATX Motherboard
  • GIGABYTE TRX40 AORUS Xtreme AMD XL-ATX Motherboard
Product Page After Image | AC Deal

GIGABYTE TRX40 AORUS Xtreme AMD XL-ATX Motherboard

Price To be announced
Status Up Coming
Product Code 16823
Brand GIGABYTE

Key Features

  • Model: TRX40 AORUS Xtreme
  • Supports 3rd Gen AMD Ryzen Threadripper Processors
  • Intel WiFi 6 802.11ax 2T2R & BT 5
  • Exclusive AORUS Gen4 AIC Adaptor
  • 16+3 Phases Infineon Digital VRM Solution
  • View More Info
Up Coming

Specification

Basic Information
Supported CPUSupport 3rd Generation AMD Ryzen Threadripper processors
ChipsetAMD TRX40
BIOS2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorXL-ATX Form Factor; 32.5cm x 27.5cm
Expansion Slots
PCI2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
M.2 SocketCPU:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2P)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/ x2 SSD support) (M2C_SOCKET)
Memory
TypeDDR4
Slots8 x DIMM
Supported MemorySupport for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Quad Channel memory architecture
Maximum Memory256 GB (32 GB single DIMM capacity)
Graphics
GraphicsSupport for AMD Quad-GPU CrossFire and 4-Way/ 3-Way/ 2-Way AMD CrossFire technologies
Support for NVIDIA Quad-GPU SLI and 4-Way/ 3-Way/ 2-Way NVIDIA SLI technologies

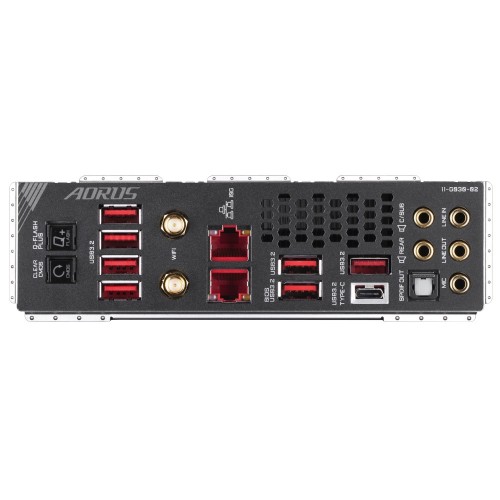

Connector & Ports
USB (s)CPU:
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+1 USB 2.0 Hub:
4 x USB 2.0/ 1.1 ports available through the internal USB headers (with the included front USB header extention cable)
Chipset+ASMedia USB 3.2 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
LAN Port (s)Intel 10GbE LAN chip (10 Gbit/ 5 Gbit/ 2.5 Gbit/ 1 Gbit/ 100 Mbit), supporting 2 RJ-45 ports
Supported StorageCPU:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2Q)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2P)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/ x2 SSD support) (M2C_SOCKET)
8 x SATA 6Gb/s connectors (SATA3 0~7)
Support for RAID 0, RAID 1, and RAID 10
ASMedia SATA 6Gb/s Controller:
2 x SATA 6Gb/s connectors (SATA3 8, 9), supporting AHCI mode only
AudioRealtek ALC4050H codec+Realtek ALC1220-VB codec (rear panel audio)
Realtek ALC4050H codec+ESS SABRE9218 DAC (front panel audio)
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x OC_PEG power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
3 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
10 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
1 x GIGABYTE add-in card connector
1 x noise detection header
1 x power button
1 x reset button
2 x temperature sensor headers
2 x BIOS switches
Voltage Measurement Points
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Wireless Communication module:
Intel Wi-Fi 6 AX200
Wi-Fi 802.11a/ b/ g/ n/ ac/ ax, supporting 2.4/ 5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Warranty Information
Manufacturing Warranty3 Years

Description

GIGABYTE TRX40 AORUS Xtreme AMD XL-ATX Motherboard

Innovative design, cutting-edge functionality, state-of-the-art aesthetics, sophisticated thermal design, next generation network connectivity ,Hi-Fi level audio system. TRX40 AORUS XTREME is the new definition of a flagship motherboard. To unleash the full potential of the 3rd Generation AMD Ryzen Threadripper CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, GIGABYTE TRX40 AORUS Xtreme AMD XL-ATX Motherboard is a true beast among motherboards. GIGABYTE TRX40 AORUS Xtreme Motherboard uses some unprecedented and innovative thermal design to ensure CPU, Chipset, SSD stability and low temperature under full loading application and gaming. The motherboard has full PCIe 4.0 design, supports high frequency memory, and full SSD thermal guard to make sure you get the maximum full system performance. A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. GIGABYTE TRX40 AORUS Xtreme Motherboard provides all next-generation network, storage, and WIFI connectivity to keep you up to speed. GIGABYTE ID team designs TRX40 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty. For enthusiasts, sound quality is just as essential to the gaming experience. TRX40 AORUS XTREME is equipped with several audiophile level components such as ESS SABRE DAC and WIMA capacitors to provide a superb audio experience. Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs. DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization. GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the TRX40 AORUS XTREME and reinforce every slot to make each of them solid and durable. Good software goes hand in hand with perfect hardware. TRX40 AORUS XTREME bundled several useful and intuitive software to help users to control every aspect of motherboard. Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

What is the price of GIGABYTE TRX40 AORUS Xtreme Motherboard in Bangladesh?

The latest price of GIGABYTE TRX40 AORUS Xtreme Motherboard in Bangladesh is 0৳. You can buy the GIGABYTE TRX40 AORUS Xtreme Motherboard at best price from our website or visit any of our showrooms.
