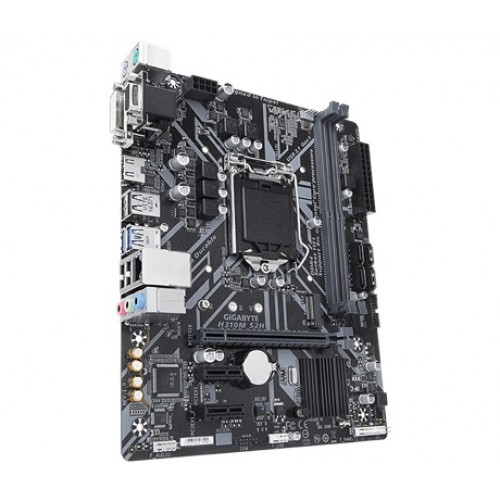

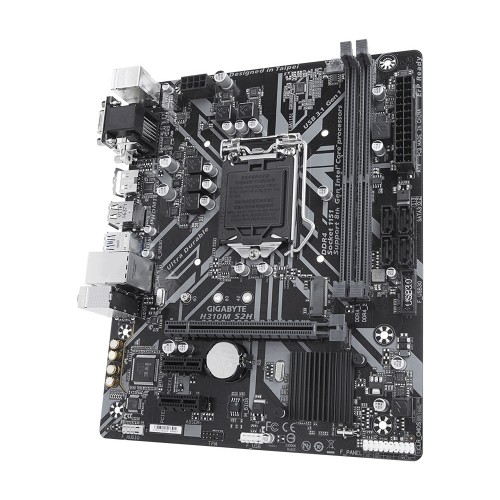

Gigabyte H310M S2H 9th Gen Micro ATX Motherboard
  • Gigabyte H310M S2H 9th Gen Micro ATX Motherboard
  • Gigabyte H310M S2H 9th Gen Micro ATX Motherboard
  • Gigabyte H310M S2H 9th Gen Micro ATX Motherboard
Product Page After Image | Lenovo Ideapad Slim 3

Gigabyte H310M S2H 9th Gen Micro ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 10548
Brand GIGABYTE

Key Features

  • Model: H310M S2H
  • Supports 9th and 8th Gen Intel Core Processors
  • Chipset: Intel H310 Express Chipset
  • 2 x DIMM, Max. 32GB DDR4
  • 3 x PCIe slots
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUSupport for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU
ChipsetIntel H310 Express Chipset
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 22.6cm x 18.5cm
AudioRealtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
Memory
TypeDDR4
Slots2 x DIMM sockets
Supported MemorySupport for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.
Maximum Memory32 GB
Graphics
Graphics1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory1 GB

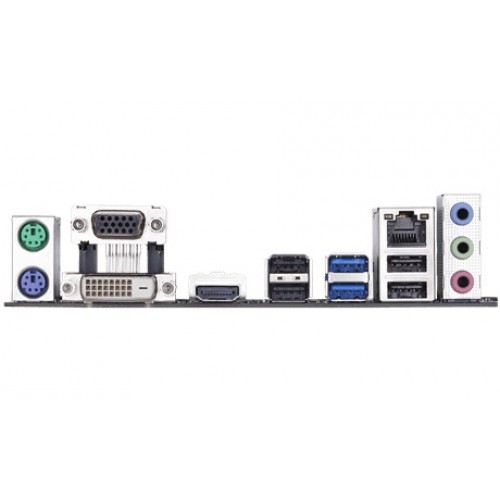

Connector & Ports
HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for HDMI 1.4 version and HDCP 2.2.
D-Sub (s)1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s)1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
The DVI-D port does not support D-Sub connection by adapter.
USB (s)4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage4 x SATA 6Gb/s connectors
AudioRealtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundled SoftwareNorton Internet Security (OEM version)
Warranty Information
Manufacturing Warranty03 Years

Description

Gigabyte H310M S2H 9th Gen Micro ATX Motherboard

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 it's obvious that GIGABYTE has the tools you need to start your journey in VR. GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes. There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions. GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance. CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

What is the price of Gigabyte H310M S2H Motherboard in Bangladesh?

The latest price of Gigabyte H310M S2H Motherboard in Bangladesh is 7,000৳. You can buy the Gigabyte H310M S2H Motherboard at best price from our website or visit any of our showrooms.

Questions (9)

Have question about this product? Get specific details about this product from expert.

Muhammad Neamul on 14 Jan 2022

Q: Can I use Team MP33 512GB M.2 PCIex4 SSD?

A: Sorry Sir . Gigabyte H310M S2H 9th Gen Micro ATX Motherboard will not be compatible with Team MP33 512GB M.2 PCIex4 SSD . Thanks for Quarries .

By Star Tech Support 14 Jan 2022

Ahmed on 03 May 2021

Q: Can i use Gigabyte 256GB NVMe M.2 SSD

A: Yes sir, you can use Gigabyte 256GB NVMe M.2 SSD on Gigabyte H310M S2H 9th Gen Micro ATX Motherboard

By Star Tech Support 03 May 2021

Nayef Wasith on 11 Aug 2020

Q: Can this motherboard run a ram @2666mhz without xmp profile with core i3 9100f?

A: Yes Sir, the Gigabyte H310M S2H 9th Gen Micro ATX Motherboard will be able to run RAM at 2666MHz Speed without XMP profile with Intel Core i3 9100F Processor.

By Star Tech Support 11 Aug 2020

Siam on 22 Jul 2020

Q: Can this support gtx 1650 gpu??

A: Yes SIr, the Gigabyte H310M S2H 9th Gen Micro ATX Motherboard will be able to support the GTX 1650 Graphics Card.

By Star Tech Support 22 Jul 2020

MOSTAKIM on 12 Jul 2020

Q: CAN THIS SUPPORT SAPPHIRE PULSE RADEON RX 570 8 GB GDDR5 GPU

A: Yes Sir, the Gigabyte H310M S2H 9th Gen Micro ATX Motherboard is able to support SAPPHIRE PULSE RADEON RX 570 8 GB GDDR5 Graphics Card.

By Star Tech Support 12 Jul 2020

Reviews (1)

Get specific details about this product from customers who own it.

2 out of 5 star star star_border star_border star_border
star star star_border star_border star_border

I purchased this motherboard and using the last 3 years. My experience is totally disappointed about this product. Already sent to customer care in 2 times. But after using some days it was the same problem facing. Sometimes restart and sometimes does not open, totally frustrated. I want to release from this brand.

By Md. Alam on 14 Jan 2022
