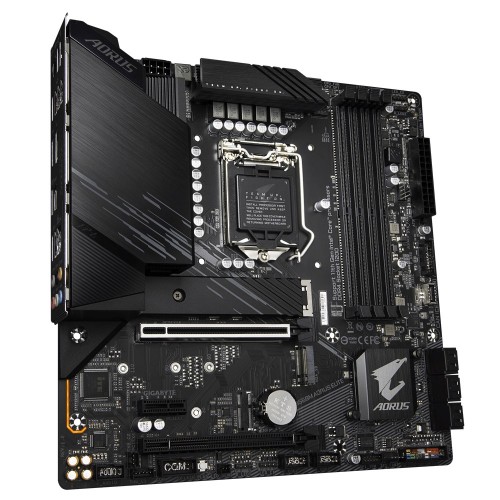

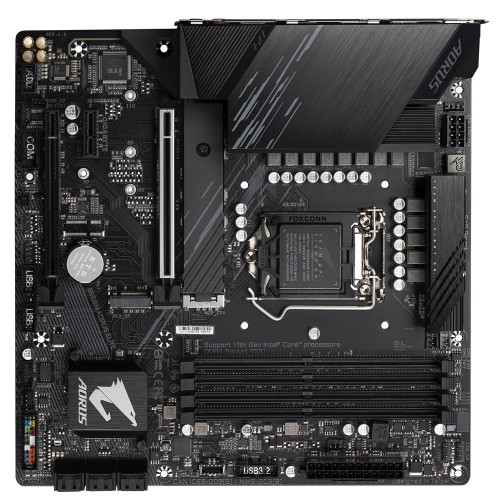

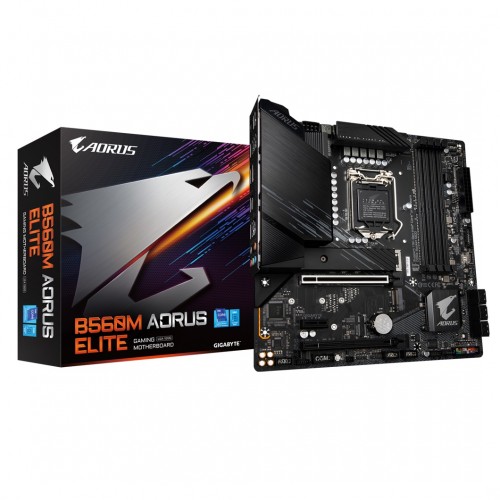

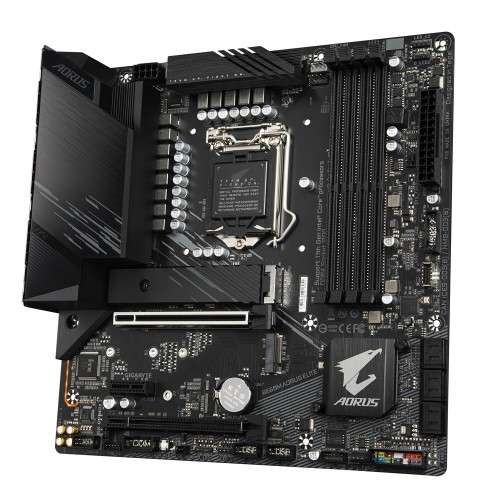

GIGABYTE B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard
  • GIGABYTE B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard
  • GIGABYTE B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard
  • GIGABYTE B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

GIGABYTE B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard

Price To be announced
Status Discontinued
Product Code 16488
Brand GIGABYTE

Key Features

  • Model: B560M AORUS ELITE
  • Supports 11th and 10th Gen Intel Core Processors
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
  • Dual-Channel DDR4, 4 DIMMs
  • Addressable LED & RGB LED Strips
  • View More Info
Discontinued

Specification

Basic Information
Supported CPU11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
ChipsetIntel B560 Express Chipset
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
AudioRealtek Audio codec
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
*Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
M.2 Socket2 x M.2 Socket 3 connectors
Memory
TypeDual channel memory architecture
Slots4 x DDR4 DIMM
Supported Memory11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3 /Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory128 GB
Graphics
GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version, HDCP 2.3
Connector & Ports
HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Display Port (s)1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
USB (s)Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen2 support
1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header
2 x USB 3.2 Gen1 ports available through the internal USB header
Chipset+ 2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)Realtek2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Audio6 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled SoftwareNorton Internet Security (OEM version)
Realtek 8125 Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty3 year

Description

GIGABYTE B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard

GIGABYTE B560M AORUS ELITE Motherboard supports 11th and 10th Gen Intel Core Series Processors. It has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It features direct 12+1 Phases Digital VRM with Low RDS(on) MOSFETs. It has Shielded Memory Routing for Better Memory Overclocking. It comes with a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. It is powered by a fast 2.5GbE LAN with Bandwidth Management. It supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard It comes with Rear USB 3.2 Gen2 Type-C and Front USB3.2 Gen1 Type-C for Connecting Devices. It has pre-installed IO Shield for Easy and Quick Installation. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. It has 3 Years Warranty.

What is the price of GIGABYTE B560M AORUS ELITE Motherboard in Bangladesh?

The latest price of GIGABYTE B560M AORUS ELITE Motherboard in Bangladesh is 15,600৳. You can buy the GIGABYTE B560M AORUS ELITE Motherboard at best price from our website or visit any of our showrooms.

Questions (3)

Have question about this product? Get specific details about this product from expert.

Awsaf Bin Abbas on 08 Jun 2022

Q: is it compatible with Intel 11th Gen Core i5-11400F Rocket Lake Processor?

A: Yes Dear Sir It is Compatible with Intel 11th Gen Core i5-11400F Rocket Lake Processor.

By Star Tech Support 08 Jun 2022

MD Nime on 28 Jan 2022

Q: Does it support the intel core i3-10100 processor?

A: Yes Sir, Gigabyte B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard is compatible with the intel core i3-10100 processor.

By Star Tech Support 28 Jan 2022

Samiur Rahman on 17 May 2021

Q: Will this support 3200mhz ram and intel 11th generation core i7 11700 or 11th generation core i5 11600 ?

A: Sir, Gigabyte B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard supports 3200mhz RAM, intel core i7 11700 and intel core i5 11600.

By Star Tech Support 17 May 2021
