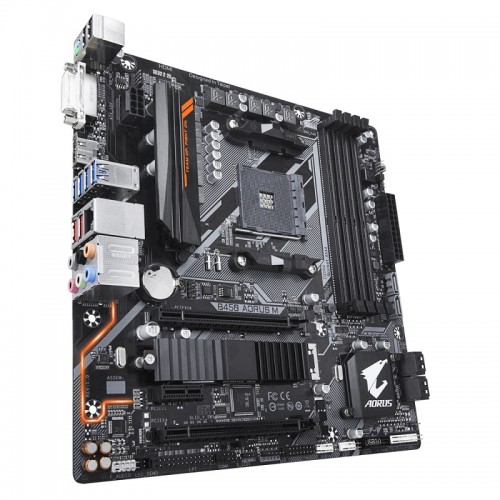

Gigabyte B450 AORUS M AMD Micro ATX Motherboard
  • Gigabyte B450 AORUS M AMD Micro ATX Motherboard
  • Gigabyte B450 AORUS M AMD Micro ATX Motherboard
  • Gigabyte B450 AORUS M AMD Micro ATX Motherboard

Gigabyte B450 AORUS M AMD Micro ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 8726
Brand GIGABYTE

Key Features

  • Model: B450 AORUS M
  • Supports Up to AMD Ryzen 5000 series Processors
  • Chipset: AMD B450
  • Memory: 4 x DDR4, Max 64 GB
  • 3 x PCI Express slots
  • View More Info
info Bundle With PC
Out Of Stock

Specification

Basic Information
Supported CPUAMD Ryzen™ 2nd Generation processors
AMD Ryzen™ with Radeon™ Vega Graphics processors
AMD Ryzen™ 1st Generation processors
ChipsetAMD B450
BIOS2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Memory
TypeDual Channel DDR4 Memory Technology
Slots4 x DIMM
Supported MemorySupport for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory64 GB
Graphics
Graphics1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.
* Actual support may vary by CPU.
Max Shared Memory16 GB
Connector & Ports
HDMI1 x HDMI
DVI-D (s)1 x DVI-D
USB (s)Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
AudioRealtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB (RGBW) LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
Warranty Information
Manufacturing Warranty03 years

Description

Gigabyte B450 AORUS M Micro ATX AMD AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard and RGB FUSION with Multi-Zone LED Light Show Design that supports Digital LED & RGB LED Strips.  Considering the graphics, it will support HDMI, DVI-D Ports for Multiple Display having maximum resolution of 1920x1200@60 Hz for DVI-D & 4096x2160@60 Hz for HDMI port. This High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting motherboard has the facility of USB Type-Câ„¢, Exclusive 8118 Gaming LAN with Bandwidth Management with Smart Fan 5 Features 5 Temperature Sensors and 3 Hybrid Fan Headers with FAN STOP and APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities. This Anti-Sulfur Resistors Design board has Ultra Durableâ„¢ 25KV ESD and 15KV Surge LAN Protection and CEC 2019 Ready for saving Power with a Simple Click.

Buy Gigabyte B450 AORUS M board with 3 years of warranty facility available at best price for the market of Bangladesh. Shop online and place your order at our online shop to have your precious board.

Questions (9)

Have question about this product? Get specific details about this product from expert.

Md Sohrab on 18 May 2022

Q: Will it support Ryzen 7 3700x and RTX aorus 2060 super?

A: Yes, dear Sir, It will support Ryzen 7 3700x and RTX AORUS 2060 super. Thank You.

By Star Tech Support 18 May 2022

SHAIKH RAHAT on 21 Jan 2020

Q: Can i overclock ryzen 5 2600x in this motherboard.

A: Yes Sir you can overclock Ryzen 5 2600x with Gigabyte B450 AORUS M AMD Micro ATX Motherboard

By Star Tech Support 21 Jan 2020

Riyasat Rashid on 30 Oct 2019

Q: Can I use this motherboard with the Gamdias Talos M1A case ?

A: Yes Sir, Gigabyte B450 AORUS M AMD Micro ATX Motherboard will into the Gamdias Talos M1A case.

By Star Tech Support 30 Oct 2019

Riyasat Rashid on 30 Oct 2019

Q: How many rgb casing fans can I connect to this motherboard?

A: Sir, if only rely on your motherboard alone then you can only attach 2 system or casing fans to your motherboard. But if you use a controller or a splitter cable then you will be able to use more casing fans.

By Star Tech Support 30 Oct 2019

Rohan on 18 Oct 2019

Q: How many HDD or SSD does it support all together ??

A: Dear Sir, the Gigabyte B450 AORUS M AMD Micro ATX Motherboard has total 6 Sata Ports and one SSD M.2 slot. So Sir, you may add upto Six SSD or HDD through the SATA port and one M.2 SSD.

By Star Tech Support 18 Oct 2019
