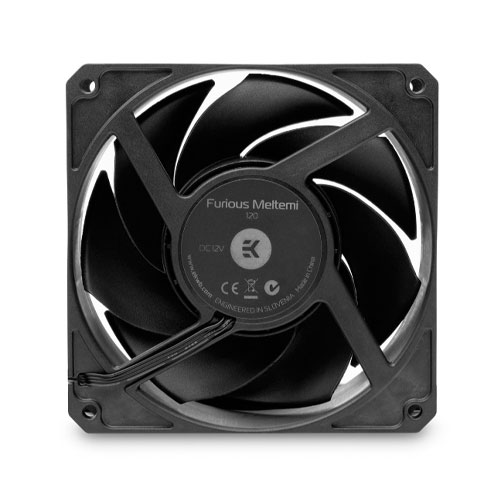

EKWB EK-Furious Meltemi 120 mm 1200-3500rpm Fan

EKWB EK-Furious Meltemi 120 mm 1200-3500rpm Fan

The key characteristics of EK-Furious Meltemi fans are:

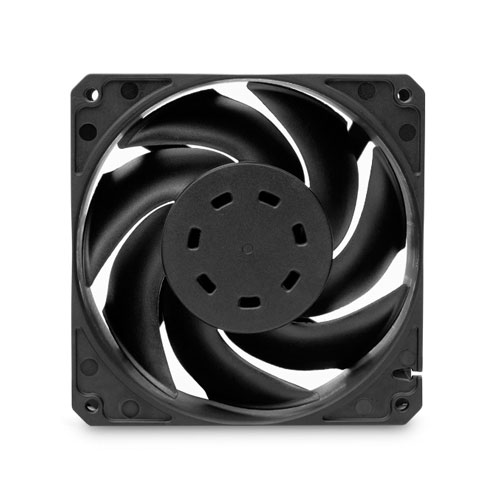

High-static pressure - unlike other general-purpose computer cooling fans, the EK-Furious Meltemi fans are built specifically for computer liquid cooling systems, namely radiator cooling. The new 7 fan blade design is optimized for extremely high-pressure built upon a massive motor housed in a 38mm thick frame.

High-quality motor and bearing assembly - New electrical design, and the Dual-Ball bearing with 50.000 hours of lifespan (MTBF) @40C operation ensures uninterrupted operation for years to come. Precise Pulse Width Modulation (PWM) for fan speed adjustment allows performance adjustment on demand.

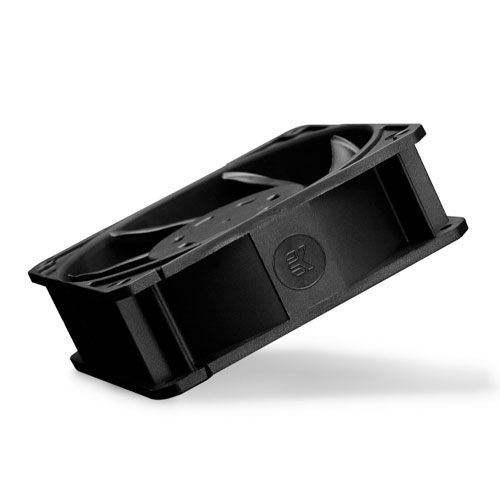

Sealed-edge fan casing - The classic, yet the effective square shape of the fan casing provides optimal performance in either pull - (suction) or push (pressure) regime without hydraulic losses, thus ensuring the optimal cooling capacity of your liquid cooling radiators. The classic shape of the fan frame also allows easy cable routing while grouping more fans on one radiator. For the best performance, EK recommends using the EK-Furious Meltemi 120ER in pull mode.

Robust design - The EK-Furious Meltemi fans fit subtly into any liquid cooling computer giving it an industrial look based on quality and performance.

Sleeved cable - It comes with a 500mm long, red nylon-sleeved 4-pin PWM cable.

Mechanical and electrical specifications of EK-Furious Meltemi fans are:

Maximum speed: 1200-3500 RPM (+/- 10%), Rated Voltage: 12V DC, Power Draw: 9.3W, PWM Duty Cycle: 35-100%, Connector: 4-pin PWM header, Shaft bearing: Dual-Ball bearing, Bearing durability: 50.000 hrs @ 40°C (MTBF), Dimensions: 120 x 120 x 38 mm

Performance characteristics of EK-Furious Meltemi fans are:

Max Air Flow: 121 CFM = 205 m³/h, Static Pressure: 7.13mm H2O = 70Pa, Sleeved cable length: 500 mm, Noise Level: 60.9dBA

The EK-Furious Meltemi fan comes with 2 Years of warranty.
