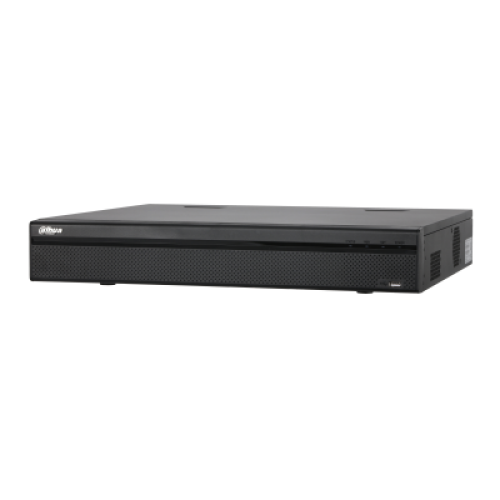

Dahua 4432-4K 32 Channel NVR
Product Page after image | Notice

Dahua 4432-4K 32 Channel NVR

Price To be announced
Status Discontinued
Product Code 7095
Brand Dahua

Key Features

  • Model: Dahua 4432
  • Interface: 1 HDMI, 1 VGA
  • Resolution: 3840×2160
  • Internal HDD 4 SATA III Port
  • View More Info
Discontinued

Description

Dahua 4432-4K 32 Channel NVR
Dahua NVR 4432-4K Up to Support  32 IP camera input
  • 32 Channel 1.5U 4K&H.265 Lite Network Video Recorder
  • H.265/H.264 codec decoding
  • Max 200Mbps Incoming Bandwidth
  • Up to 8MP Resolution for Preview and Playback
  • HDMI/VGA simultaneous video output
  • Support ANR technology to enhance the storage reliability when the network break down
NVR 4432-4K Specifications

System

  • Main Processor Quad-core embedded processor
  • Operating System Embedded LINUX
Display
  •  Interface 1 HDMI, 1 VGA
  • Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
  • Multi-screen Display 1/4/8/9/16
  • OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
  • Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
  • Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering
  • Alarm input 16 Channel, Low Level Effective,
  • Green Terminal Interface
  • Relay Output 4 Channel, NO/NC Programmable,
  • Green Terminal Interface
  • Playback and Backup
  • Playback 1/4/8/16
  • Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
  • Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play,Next File, Previous File, Next Camera,Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
  • Backup Mode USB Device/Network
Storage
  • Internal HDD 4 SATA III Port, Up to 6 TB capacity for each HDD
  • HDD Mode Single
Auxiliary Interface
  • USB 2 USB Ports (1 USB2.0, 1 USB3.0)
  • RS232 1 Port, for PC Communication and Keyboard
  • RS485 1 Port, for PTZ Control
  • Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom,Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Audio and Video IP Camera
  • Input 16/32 Channel
  • Two-way Talk 1 Channel Input, 1 Channel Output, RCA
  • Recording Compression H.265/H.264
  • Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
  • Record Rate 200Mbps
  • Bit Rate 16Kbps ~ 20Mbps Per Channel
  • Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
  • Record Interval 1 ~ 120 min (default: 60 min), Pre-record:
  • 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
  • Interface 2 RJ-45 Ports(10/100/1000Mbps)
  • Ethernet Port 2 Ethernet Ports Joint Working or 2 Independent
  • 1000Mbps Ethernet Port
  • Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DNS, IP Filter, PPPoE,DDNS, FTP,
  • IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip
Max. User
  • Access 128 users
  • Smart Phone iPhone, iPad, Android
  • Interoperability ONVIF 2.4, CGI Conformant
Electrical
  • Power Supply AC100V ~ 240V, 50 ~ 60 Hz
  • Power Consumption <11.7W (Without HDD)
Dimensions
  • 1.5U, 440mm×411.1mm×76mm, (17.3″ x 16.2″ x 3.0″)
  • Net Weight 4.5kg (9.9 lb) (without HDD)
  • Gross Weight 7kg(15.4 lb)(without HDD)
