BIOSTAR B560MH-E 2.0 10th and 11th Gen Micro ATX Motherboard
  • BIOSTAR B560MH-E 2.0 10th and 11th Gen Micro ATX Motherboard
  • BIOSTAR B560MH-E 2.0 10th and 11th Gen Micro ATX Motherboard
  • BIOSTAR B560MH-E 2.0 10th and 11th Gen Micro ATX Motherboard
Product Page After Image | 17th Anniversary

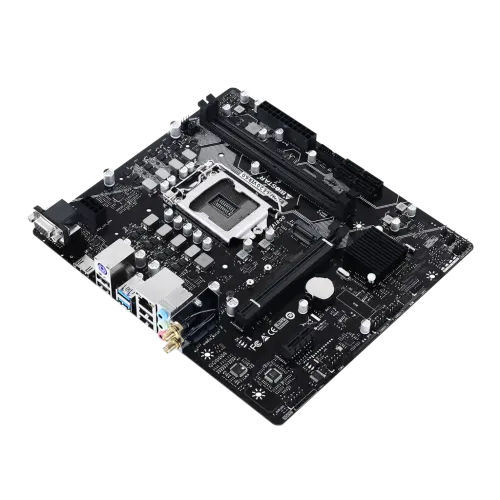

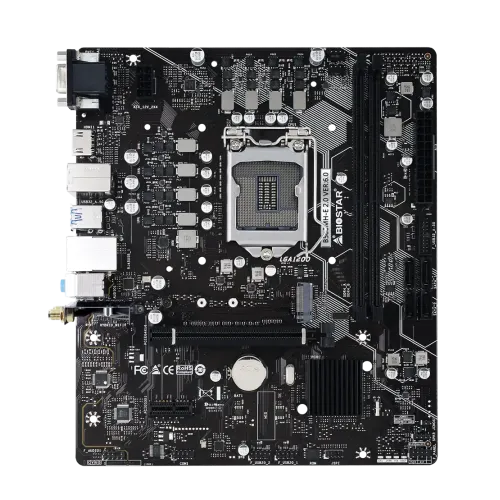

BIOSTAR B560MH-E 2.0 10th and 11th Gen Micro ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 26477
Brand BIOSTAR

Key Features

  • Model: B560MH-E 2.0
  • Supported CPU: 10th /11th Generation Intel Core Processor
  • Supported RAM: 2x DIMM, DDR4 3333+(OC) up to 64 GB
  • Graphics Output: 1 x HDMI, 1 x VGA Port
  • Features: 1 x M.2 Slot, Intel I219V
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUSupport for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
ChipsetIntel B560
Form FactorMicro ATX Form Factor Dimension: 20.8 cm x 23.6 cm ( W x L )
AudioRealtek ALC897
7.1 Channels, High Definition Audio
Expansion Slots
PCI1 x PCIe 3.0 x1 Slot
1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode)
Memory
TypeDDR4
Slots2 x DIMM
Supported MemorySupports Dual Channel DDR4 3333+(OC)/ 3200/ 2933/ 2666/ 2400/ 2133/ 1866
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Maximum MemoryUp to 64 GB
Graphics
GraphicsBy CPU model
Supports DX12
Supports HDCP
Supports HDMI 1.4 version

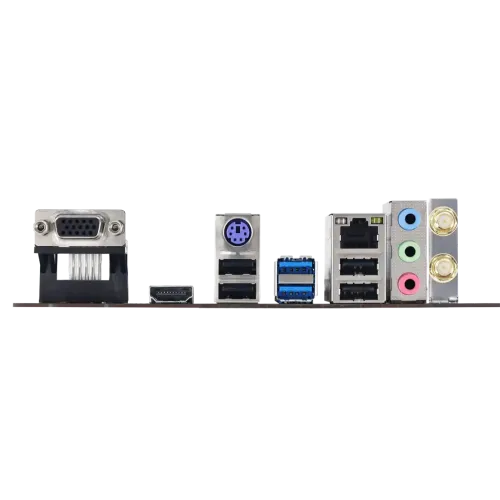

Connector & Ports
HDMI1 x HDMI Port
VGA (s)1 x VGA Port
USB (s)4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
LAN Port (s)Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supported StorageTotal supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD
Audio3 x Audio Jack
Internal I/O Ports4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
* M.2 (E key) Wi-Fi card is not provided
Others
Bundled SoftwareBullGuard
Warranty Information
Manufacturing Warranty3 years

Description

BIOSTAR B560MH-E 2.0 10th and 11th Gen Micro ATX Motherboard

The BIOSTAR B560MH-E 2.0 Micro ATX Motherboard is designed to support the 10th and 11th generation Intel Core processors. Equipped with an Intel B560 single-chip architecture, this motherboard provides a stable and reliable platform for building a high-performance PC. The B560MH-E 2.0 also supports 2-DIMM DDR4 memory with speeds of up to 3333+(OC) MHz and a maximum capacity of 64GB, providing ample memory for multitasking and handling demanding applications. One of the key features of this motherboard is its support for PCIe 4.0, which allows for faster data transfer and improved performance for devices such as graphics cards, sound cards, and solid-state drives. The B560MH-E 2.0 also supports PCIe M.2 3.0 (32Gb/s), allowing for even faster data transfer speeds and higher performance for NVMe SSDs. The B560MH-E 2.0 also supports USB 3.2 Gen1, providing faster data transfer speeds for peripherals such as external hard drives and flash drives. The motherboard also supports the WiFi 6 module, which is the latest wireless standard and provides faster internet speeds and improved network efficiency, However, WiFi 6 module is not included in this board.

Buy BIOSTAR B560MH-E 2.0 10th and 11th Gen Micro ATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get original BIOSTAR B560MH-E 2.0 10th and 11th Gen Micro ATX Motherboard From Star Tech. We have a large collection of latest BIOSTAR Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The BIOSTAR B560MH-E 2.0 Motherboard comes with 3 years warranty.

What is the price of BIOSTAR B560MH-E 2.0 Motherboard in Bangladesh?

The latest price of BIOSTAR B560MH-E 2.0 Motherboard in Bangladesh is 8,500৳. You can buy the BIOSTAR B560MH-E 2.0 Motherboard at best price from our website or visit any of our showrooms.
