close| Price | 39,500৳ |
| Regular Price | 43,400৳ |
| Status | In Stock |
| Product Code | 50770 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z790 Chipset | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC | |
| Expansion Slots | ||
| PCI | Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 4.0 x16 slot Intel® Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 2 x PCIe 4.0 x1 slots * Please check the PCIe |
|
| M.2 Socket | Total supports 3 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM slots | |
| Supported Memory | DDR5 8200+(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration |
|
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)* Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports* * USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth. * USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth. |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 6 (802.11 ax) Supports 2.4/5GHz frequency band Bluetooth v5.3 |
|
| Supported Storage | 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x Clear CMOS button 1 x Reset button 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4®) Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | Extreme OC Kit - Start button ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot - Q-Code ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack™ button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) MyASUS UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

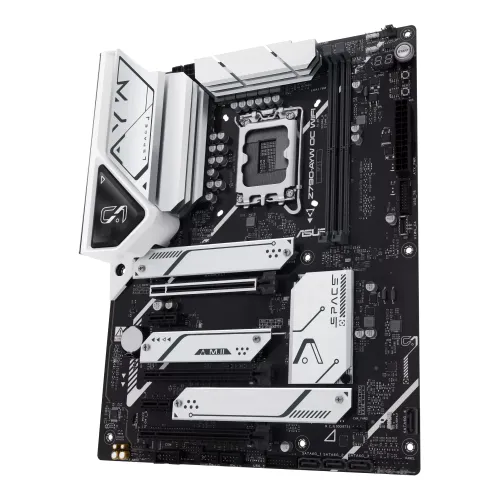

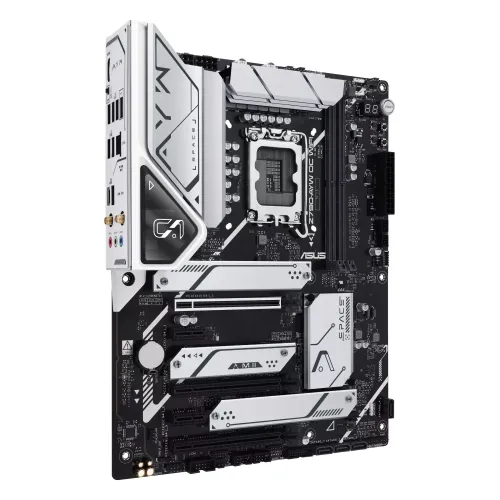

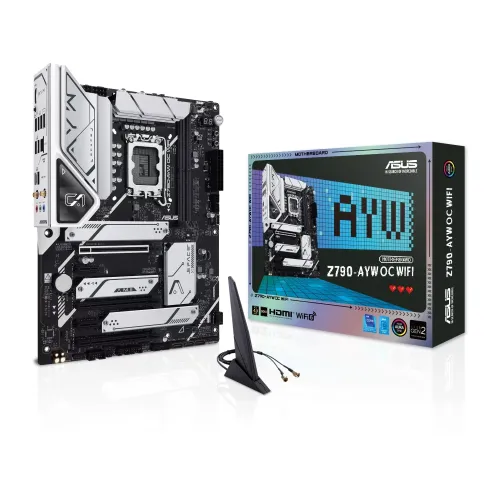

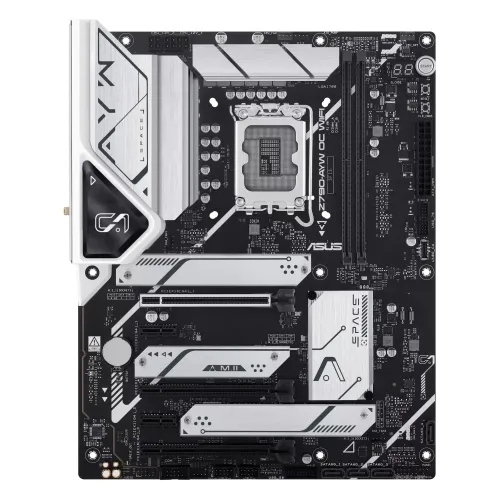

The ASUS Z790-AYW OC WIFI LGA1700 ATX Motherboard is built for high-performance computing. Powered by the Intel Z790 chipset, it supports Intel Core 14th, 13th, and 12th Gen processors, along with Pentium Gold and Celeron CPUs. With Intel Turbo Boost Technology 2.0 and 3.0, this ASUS Z790 Motherboard ensures fast speeds and reliable performance for gaming, content creation, and professional workloads.
This ASUS Z790 ATX Motherboard supports DDR5 memory with speeds up to 8200+(OC) and dual-channel architecture. With OptiMem II technology and Intel XMP profiles, it delivers stable overclocking and reduced latency. The board supports up to 96GB of DDR5 memory, making it ideal for demanding applications and multitasking setups.
The ASUS Z790-AYW OC WIFI Motherboard offers multiple PCIe 4.0 slots for graphics and expansion cards. Storage options include 3x M.2 slots with heatsinks and 4x SATA 6Gb/s ports, supporting Intel Rapid Storage Technology with RAID 0/1/5/10. ASUS Q-Design features like M.2 Q-Latch and Q-DIMM make installation simple and efficient.

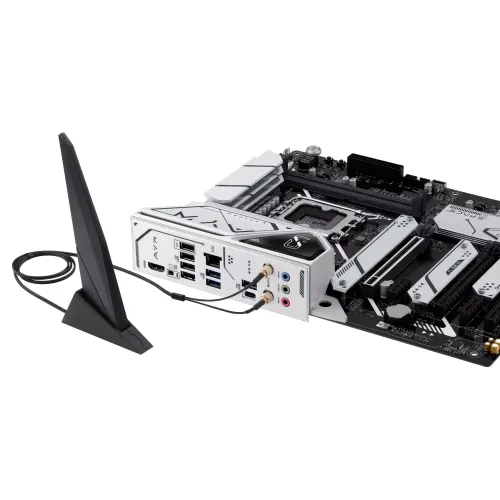

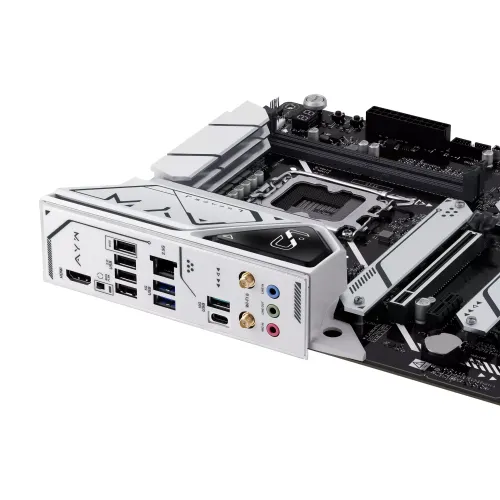

Connectivity is extensive with HDMI 2.1 supporting 4K@60Hz, 8 rear USB ports including USB 10Gbps Type-A and Type-C, plus 9 front USB ports for expansion. Networking is powered by Realtek 2.5Gb Ethernet with ASUS LANGuard, Wi-Fi 6, and Bluetooth 5.3, ensuring fast and stable connections for gaming and professional use.
The ASUS Z790 Motherboard features Realtek 7.1 Surround Sound High Definition Audio CODEC with premium capacitors and audio shielding for clear sound. Cooling is optimized with VRM heatsinks, M.2 heatsinks, multiple fan headers, and AI Cooling II via Fan Xpert 4. Extreme OC features like onboard start/reset buttons and clear CMOS support make it perfect for overclockers.
ASUS 5X Protection III ensures durability with DIGI+ VRM, SafeSlot Core+, stainless-steel back I/O, and overvoltage protection. DIY-friendly features include BIOS FlashBack™, pre-mounted I/O shield, and Aura Sync RGB headers for customization. Bundled software such as Armoury Crate, AI Suite 3, and ASUS CPU-Z enhance system management and performance tuning.
The ASUS Z790-AYW OC WIFI LGA1700 ATX Motherboard combines DDR5 support, advanced connectivity, robust cooling, and extreme overclocking features. Perfect for gamers, creators, and professionals, it delivers the performance and reliability expected from an ASUS Z790 Professional Motherboard.
In Bangladesh, you can get original ASUS Z790-AYW OC WIFI LGA1700 ATX Motherboard From Star Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price.The ASUS Z790-AYW OC WIFI Motherboard comes with 3 years of warranty.
The latest price of ASUS Z790-AYW OC WIFI Motherboard in Bangladesh is 39,500৳. You can buy the ASUS Z790-AYW OC WIFI Motherboard at best price from our website or visit any of our showrooms.
