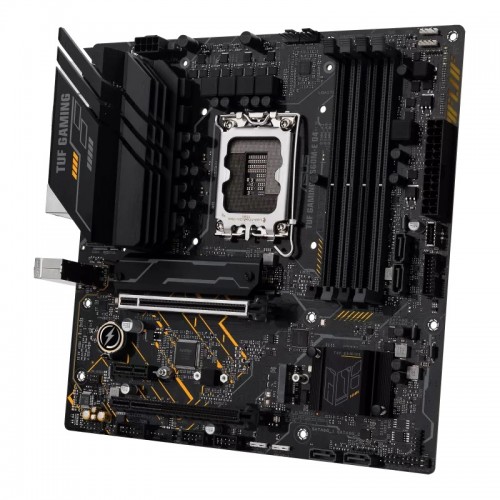

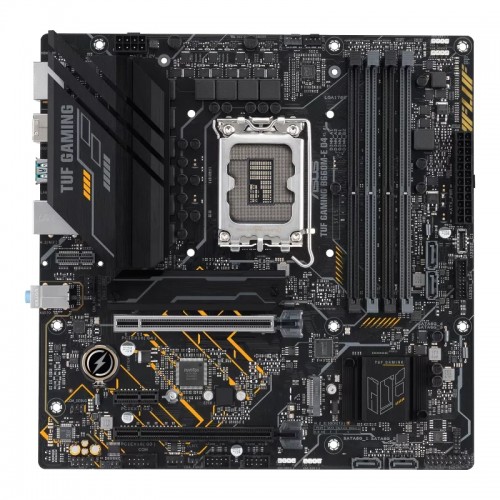

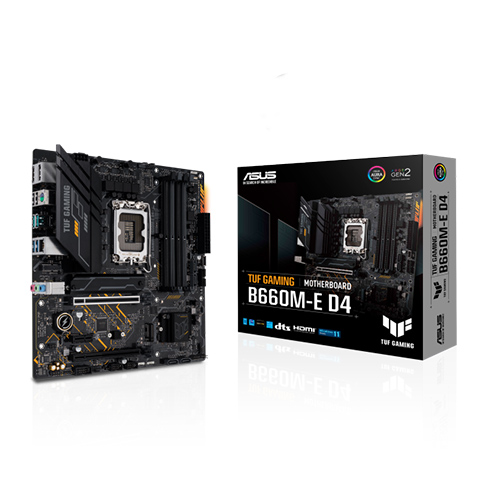

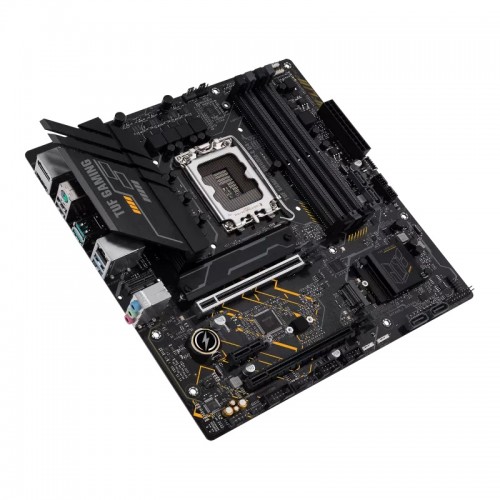

ASUS TUF Gaming B660M-E D4 Motherboard
  • ASUS TUF Gaming B660M-E D4 Motherboard
  • ASUS TUF Gaming B660M-E D4 Motherboard
  • ASUS TUF Gaming B660M-E D4 Motherboard
  • ASUS TUF Gaming B660M-E D4 Motherboard
Product | lenovo Ideapad Gaming 3 15ACH6

ASUS TUF Gaming B660M-E D4 Motherboard

Price To be announced
Status Discontinued
Product Code 20716
Brand Asus

Key Features

  • Model: TUF Gaming B660M-E D4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported Socket: Intel LGA 1700 socket
  • Ports: PCIe 4.0 slot, M.2 slots, USB 3.2 Type-C
  • Two-way AI Noise-Cancelation
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupport for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetB660
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form FactormicroATX
24.4cm x 24.4cm
AudioALC897
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
Expansion Slots
PCI1 x PCIe 4.0/3.0 x16 slot
Intel B660 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
M.2 SocketTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
M.2_1 slot (Key M), type 2242/2260/2280
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Memory
TypeDDR4
Slots4 x DIMM
Supported Memory5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory128GB
Graphics
Graphics1 x DisplayPort
1 x HDMI port

-Support 4K@60Hz as specified in DisplayPort 1.4.
-Support 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI1 x HDMI port
Display Port (s)1 x DisplayPort
USB (s)2 x USB 3.2 Gen 2 ports (Type-A)
2 x USB 3.2 Gen1 ports (Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)TUF LANGuard
Wireless Communication moduleV-M.2 slot only (Key E, CNVi & PCIe)
Wi-Fi module is sold separately.
Supported StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
M.2_1 slot (Key M), type 2242/2260/2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
AudioALC897
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O PortsBack Panel I/O Ports
2 x USB 3.2 Gen 2 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x V-M.2 slot (Key E)
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related:
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB:
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous:
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x S/PDIF Out header
Others
Special Features ASUS TUF PROTECTION
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Box Headers
- ProCool
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Bundled SoftwareASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
-Easy Optimization with AI Overclocking
TPU
EPU
DIGI+ VRM
Turbo app
ASUS CPU-Z
DTS:X Ultra
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
Warranty Information
Manufacturing Warranty3 years

Description

ASUS TUF Gaming B660M-E D4 Motherboard

ASUS TUF Gaming B660M-E D4 supports 14th, 13th, & 12th Gen Intel processors, an Intel LGA 1700 socket, Intel Turbo Boost Technology 2.0, and Intel Turbo Boost Max Technology 3.0. This motherboard comes with an enhanced power solution, which includes 10 power stages, a six-layer PCB, a ProCool socket, military-grade TUF components, and Digi+ VRM for maximum durability. It has a comprehensive cooling system: an enlarged VRM heatsink, a flexible M.2 heatsink, a PCH heatsink, hybrid fan headers, and a Fan Xpert 2+. Here, PCIe 4.0 slots, PCIe 4.0 M.2 slots, and front USB 3.2 Gen 2 Type-C connectivity are also available. This 14th Gen motherboard is specially made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard. In this motherboard, it also has Two-way AI noise cancellation, which helps to reduce Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage. TUF GAMING B660 motherboards are the perfect foundation for your next high-core-count battle rig. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity. the new TUF GAMING B660 motherboards provide a high-performance gaming package with a long list of features with including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. the latest ASUS TUF Gaming B660M-E D4 motherboard offers 03 years warranty.

What is the price of ASUS TUF Gaming B660M-E D4 Motherboard in Bangladesh?

The latest price of ASUS TUF Gaming B660M-E D4 Motherboard in Bangladesh is 20,200৳. You can buy the ASUS TUF Gaming B660M-E D4 Motherboard at best price from our website or visit any of our showrooms.
