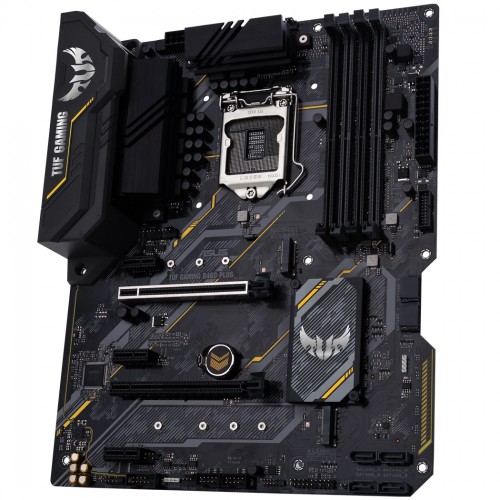

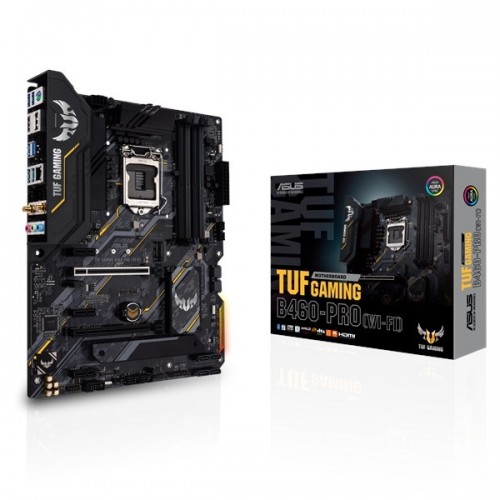

ASUS TUF GAMING B460-PRO Wi-Fi Intel 10th Gen ATX Motherboard
  • ASUS TUF GAMING B460-PRO Wi-Fi Intel 10th Gen ATX Motherboard
  • ASUS TUF GAMING B460-PRO Wi-Fi Intel 10th Gen ATX Motherboard
  • ASUS TUF GAMING B460-PRO Wi-Fi Intel 10th Gen ATX Motherboard

ASUS TUF GAMING B460-PRO Wi-Fi Intel 10th Gen ATX Motherboard

Price To be announced
Status Discontinued
Product Code 13990
Brand Asus

Key Features

  • Model: ASUS TUF GAMING B460-PRO Wi-Fi
  • LGA 1200 socket for 10th-gen Intel Core Desktop Processors
  • Comprehensive cooling
  • Made for online gaming
  • Enhanced power solution
  • View More Info
stars 120 Star Points
Discontinued

Specification

Basic Information
Supported CPUIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel B460
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCIIntel 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel B460 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
M.2 SocketTotal supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (PCI-E 3.0 x 4 mode)
Memory
TypeDual Channel Memory Architecture
Slots4 x DDR4 DIMM
Supported Memory2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory128 GB
Graphics
GraphicsIntegrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Supports AMD 2-Way CrossFireX Technology

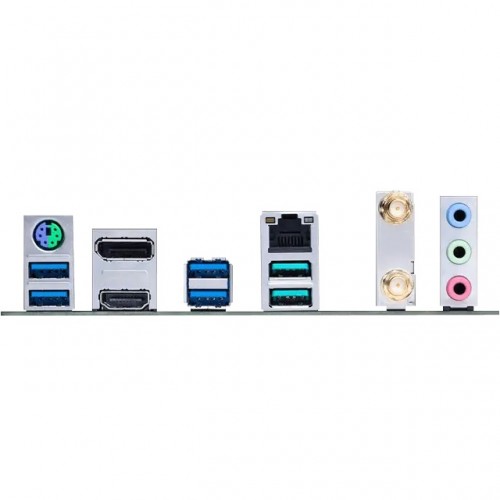

Connector & Ports
HDMI1 x HDMI 1.4b
Display Port (s)1 x DisplayPort 1.4
USB (s)Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
LAN Port (s)Intel I219-V 1Gb Ethernet
Supported StorageTotal supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (PCI-E 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready
AudioRealtek ALC S1200A 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Internal I/O Ports1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
Others
Special Features Wireless Data Network:
Intel Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
Warranty Information
Manufacturing Warranty03 Years

Description

ASUS TUF GAMING B460-PRO Wi-Fi Intel 10th Gen ATX Motherboard

TUF Gaming B460-PRO (WiFi) distills essential elements of the latest Intel platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for faster memory and storage, TUF Gaming B460-PRO (Wi-Fi) is the perfect foundation for your next high-core-count battle rig. Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. Proprietary capacitors provide up to 20% greater temperature tolerance and a 5X-longer lifespan. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF Gaming B460-PRO (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. The Intel WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. Intel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer. Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface and reduces network lag.

What is the price of ASUS TUF GAMING B460-PRO Wi-Fi Motherboard in Bangladesh?

The latest price of ASUS TUF GAMING B460-PRO Wi-Fi Motherboard in Bangladesh is 14,500৳. You can buy the ASUS TUF GAMING B460-PRO Wi-Fi Motherboard at best price from our website or visit any of our showrooms.

Questions (1)

Have question about this product? Get specific details about this product from expert.

Labib Siddique on 11 Sep 2021

Q: Do asus tuf gaming b460 pro wifi has rgb headers?

A: Yes, ASUS TUF GAMING B460-PRO Wi-Fi Intel 10th Gen ATX Motherboard comes with AURA RGB header.

By Star Tech Support 11 Sep 2021
