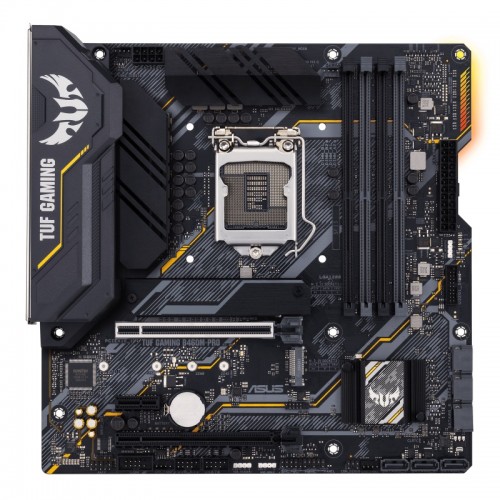

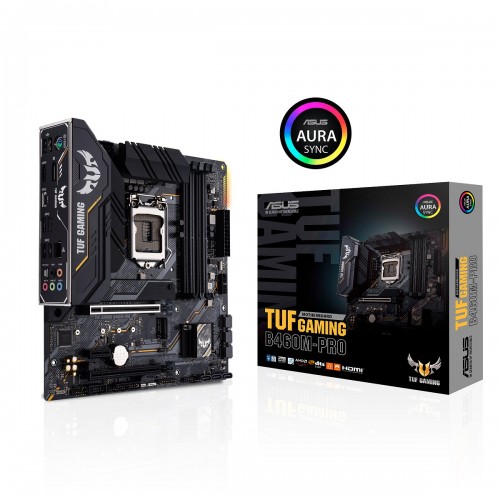

ASUS TUF GAMING B460-PRO 10th Gen ATX Motherboard
  • ASUS TUF GAMING B460-PRO 10th Gen ATX Motherboard
  • ASUS TUF GAMING B460-PRO 10th Gen ATX Motherboard
  • ASUS TUF GAMING B460-PRO 10th Gen ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

ASUS TUF GAMING B460-PRO 10th Gen ATX Motherboard

Price To be announced
Status Discontinued
Product Code 17682
Brand Asus

Key Features

  • Model: TUF GAMING B460-PRO
  • LGA 1200 socket for 10th Gen Intel Core Desktop Processors
  • Comprehensive Cooling
  • Made for Online Gaming
  • Enhanced Power Solution
  • View More Info
stars 120 Star Points
Discontinued

Specification

Basic Information
Supported CPUIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel B460
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form FactormATX Form Factor: 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Expansion Slots
PCIIntel 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel B460 Chipset
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1
M.2 Socket1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
Memory
TypeDDR4
Slots4 x DIMM
Supported Memory2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory128 GB
Graphics
GraphicsIntegrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Supports AMD 2-Way CrossFireX Technology

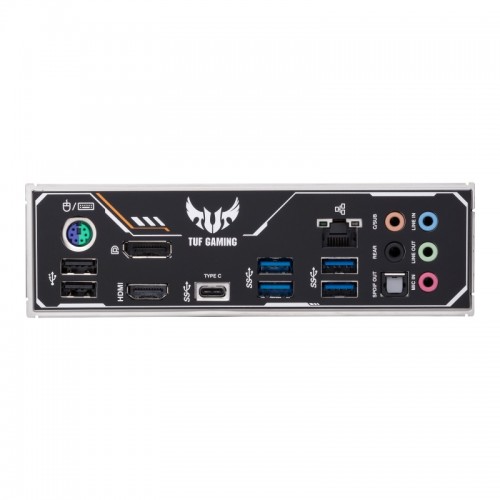

Connector & Ports
HDMI1 x HDMI 1.4b
Display Port (s)1 x DisplayPort 1.4
USB (s)Rear USB Port ( Total 7 )
5 x USB 3.2 Gen 1 port(s) (4 x Type-A +1 x USB Type-C)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
LAN Port (s)Realtek RTL8125-CG 2.5G LAN
Supported StorageTotal supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready
AudioRealtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Internal I/O Ports1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
Others
Special Features Pre-mounted I/O Shield
ASUS TUF PROTECTION
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
- Aluminum heatsink design
AURA Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
Warranty Information
Manufacturing Warranty03 Years

Description

ASUS TUF GAMING B460-PRO Wi-Fi Intel 10th Gen ATX Motherboard

TUF Gaming B460M-PRO distills essential elements of the latest Intel platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for faster memory and storage, TUF Gaming B460M-PRO is the perfect foundation for your next high-core-count battle rig. Dual M.2 slots support data-transfer speeds of up to 32 Gbps on the x4 PCI Express® 3.0 bandwidth, making it perfect for OS or application drives for quicker boot-up and app load times. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. Numerous USB ports support gaming rigs loaded with peripherals, including a rear-panel rear-panel USB Type-C connector with fast USB 3.2 Gen 1 connectivity for compatible cases.

EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards. Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for uni�ed system lighting effects. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.

IMMERSIVE GAMING

TUF Gaming B460M-PRO provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers. A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware. The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.





What is the price of ASUS TUF GAMING B460-PRO 10th Gen Motherboard in Bangladesh?

The latest price of ASUS TUF GAMING B460-PRO 10th Gen Motherboard in Bangladesh is 14,500৳. You can buy the ASUS TUF GAMING B460-PRO 10th Gen Motherboard at best price from our website or visit any of our showrooms.

Questions (1)

Have question about this product? Get specific details about this product from expert.

MONIR SARKAR on 03 Sep 2021

Q: Can I pair this MOBO with 11500?

A: Yes, you can pair ASUS TUF GAMING B460-PRO 10th Gen ATX Motherboard with 11500.
