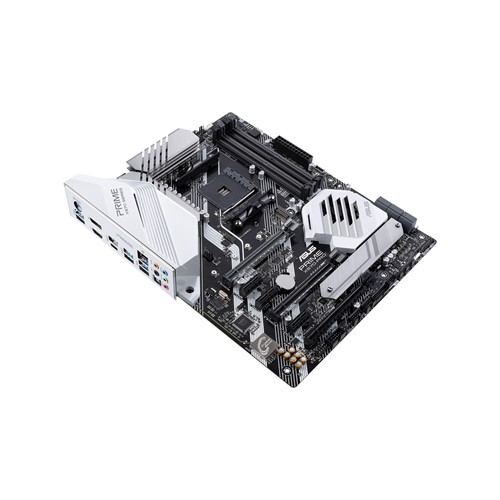

Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard
  • Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard
  • Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard
  • Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard
Product Page After Image | AC Deal

Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard

Price To be announced
Status Out Of Stock
Product Code 12993
Brand Asus

Key Features

  • Model: Asus Prime X570-PRO CSM
  • Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
  • 5-Way Optimization
  • Enhanced Power Solution
  • Industry-leading cooling options
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUSupports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
ChipsetAMD X570
BIOS256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form FactorATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI3rd Gen AMD Ryzen Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1
M.2 Socket3rd Gen AMD Ryzen Processors :
1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support
Memory
TypeDual Channel Memory Architecture
Slots4 x DIMM
Supported Memory3rd Gen AMD Ryzen Processors
4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
2nd Gen AMD Ryzen Processors
3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
Maximum MemoryMax. 128GB, DDR4
Graphics
GraphicsIntegrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support: HDMI/DisplayPort ports
- Supports HDMI 2.0b with a maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Max Shared Memory3rd and 2nd Gen AMD Ryzen Processors
Supports NVIDIA® 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMIHDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
Display Port (s)DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
USB (s)3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
LAN Port (s)Intel I211-AT
ASUS LAN Guard
Supported Storage3rd Gen AMD Ryzen Processors :
1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
AudioRealtek S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Front panel audio connector (AAFP)
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- EMI protection cover to prevent electrical noise to affect the amplifier quality
Internal I/O Ports2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x PCH_FAN (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x Water Pump header (4-pin)
1 x T_Sensor Connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
TPM (Trusted Platform Module )1 x SPI TPM header
Others
Special Features 5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
DIGI+ VRM: Digital power design with Dr. MOS
EPU Guidance
TPU Insight
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications.
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM - Digital power design with Dr. MOS
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS SafeSlot - Protect your graphics card Investment
ASUS OptiMem:
- Improved DDR4 Stability
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
- Armoury Crate
- Pre-mounted I/O Shield
ASUS Quiet Thermal Solution :
- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Warranty Information
Manufacturing Warranty03 Years Warranty

Description

Asus Prime X570-PRO CSM PCIe 4.0 AMD Motherboard

Dressed in professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen processors to more productive use. Prime X570, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance. Hosting the latest Ryzen processor with an increased number of cores and bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling, and flexible transfer options. It provides all the fundamentals to increase your everyday productivity. The 3rd Gen AMD Ryzen processors boast more cores and bandwidth, demanding more power than typical desktop CPUs. Prime X570-Pro is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance. It augments the motherboard's link to the PSU with 8+4 pin connectors that pass 12V power directly to the processors. Based on our ProCool design, these jacks use solid pins that can handle more current than hollow-pin connectors. The Prime X570 series feature software and firmware controls that make performance accessible to anyone. Prime X570 series also include options allowing you to personalize your build, and help you to tune your rig to perform the way you want it. One-click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig. The UEFI BIOS is an early waypoint on any PC-building journey, and Prime X570-Pro offers one of the best in the business. Designed for easy setup, EZ Mode presents all the vital settings and stats on one single page. With guided wizards, drag-and-drop simplicity, and one-click convenience to apply important settings, your rig will be up and running in no time. When you're ready to take a deeper dive into the configuration of your rig, Advanced Mode grants total control. Each section is intuitively organized, and a built-in search feature makes it easy to find the option you need. Tweak cooling parameters, save profiles, apply overclocks, and unleash the full potential of the latest Ryzen processor. Armory Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armory Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community. A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware. Prime X570-Pro's Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

What is the price of Asus Prime X570-PRO CSM Motherboard in Bangladesh?

The latest price of Asus Prime X570-PRO CSM Motherboard in Bangladesh is 28,500৳. You can buy the Asus Prime X570-PRO CSM Motherboard at best price from our website or visit any of our showrooms.
