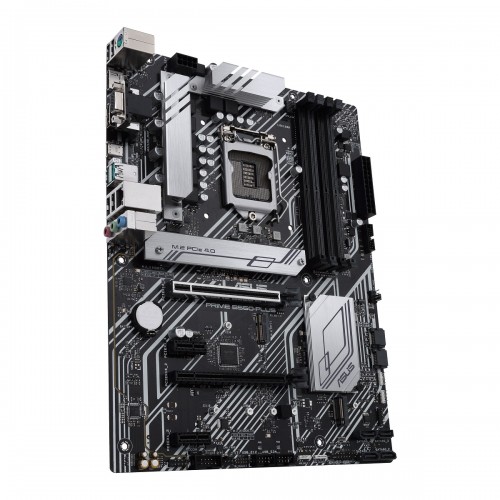

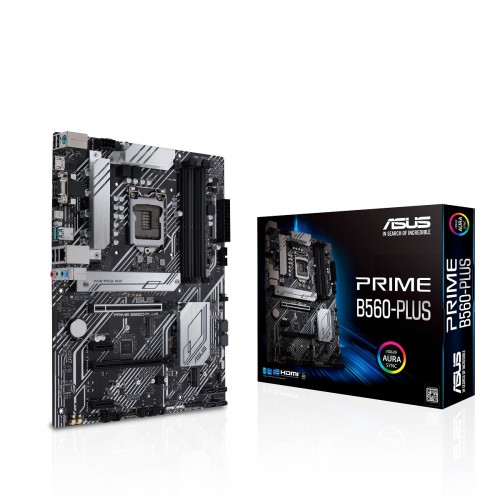

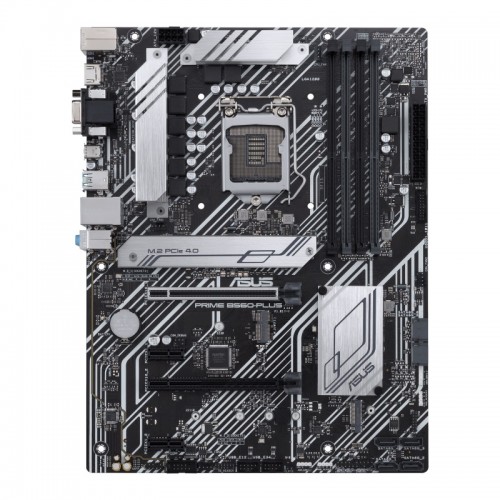

Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard
  • Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard
  • Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard
  • Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard
Product Page After Image | Lenovo Ideapad Slim 3

Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 16824
Brand Asus

Key Features

  • Model: Prime B560-PLUS
  • Supports 10th and 11th Gen Intel Core Processors
  • 5X Protection III
  • Ultrafast connectivity
  • Comprehensive cooling
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUIntel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel B560 Express Chipset
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form FactorATX: 30.5cm x 23.4cm
Expansion Slots
PCIIntel 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16
- Intel10th processors support PCIe 3.0 x16
Intel B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
M.2 SocketIntel 11th Gen Processors
- M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 )
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel B560 Chipset
- M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes)
Memory
TypeDDR4
Slots4 x DIMM
Supported Memory11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively.
10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz
4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
ASUS OptiMem
Maximum Memory128 GB (32 GB single DIMM capacity)
Graphics
Graphics1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI 1.4/2.0

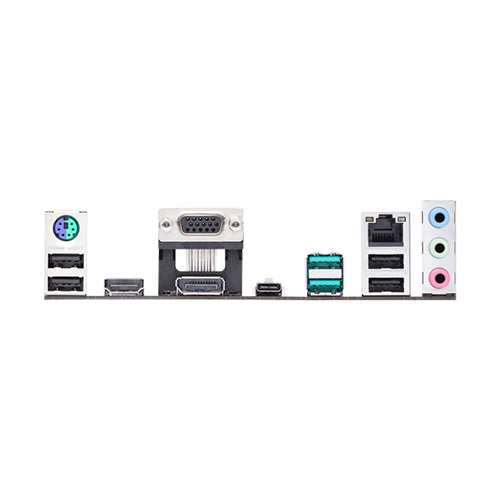

Connector & Ports
HDMI1 x HDMI 1.4/ 2.0
Display Port (s)1 x DisplayPort 1.4
D-Sub (s)1 x D-Sub
USB (s)2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x USB Type-C)
4 x USB 2.0 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)1 x Intel I219-V 1Gb Ethernet
ASUS LANGuard
Supported StorageIntel 11th Gen Processors
- M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 )
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel B560 Chipset
- M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes)
- 6 x SATA 6Gb/s ports
AudioRealtek ALC897 7.1-Channel High Definition Audio CODEC
Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
Internal I/O PortsFan and cooling-related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS jumper
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF out header
1 x 20-3pin System Panel header with Chassis intrude function
1 x M.2 slot (key E)
1 x Thunderbolt 4 header
TPM (Trusted Platform Module )1 x SPI TPM header (14-1 pin)
Others
Special Features Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)
Warranty Information
Manufacturing Warranty3 Years

Description

Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard

Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B560-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Asus Prime B560-PLUS 11th Gen Motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. The motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. The motherboard is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS Asus Prime B560-PLUS 11th Gen Motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

What is the price of Asus Prime B560-PLUS 11th Gen Motherboard in Bangladesh?

The latest price of Asus Prime B560-PLUS 11th Gen Motherboard in Bangladesh is 14,600৳. You can buy the Asus Prime B560-PLUS 11th Gen Motherboard at best price from our website or visit any of our showrooms.

Questions (1)

Have question about this product? Get specific details about this product from expert.

Rifataman moon on 27 Feb 2022

Q: Can I use it with Intel 11th Gen Core i5-11400 Rocket Lake Processor?

A: Yes sir, you can use Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard with Intel 11th Gen Core i5-11400 Rocket Lake Processor.

By Star Tech Support 27 Feb 2022
