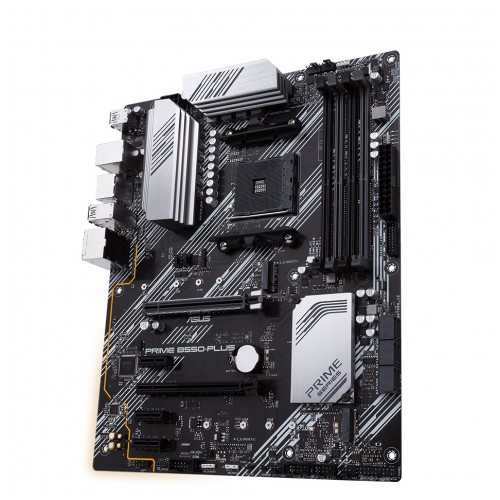

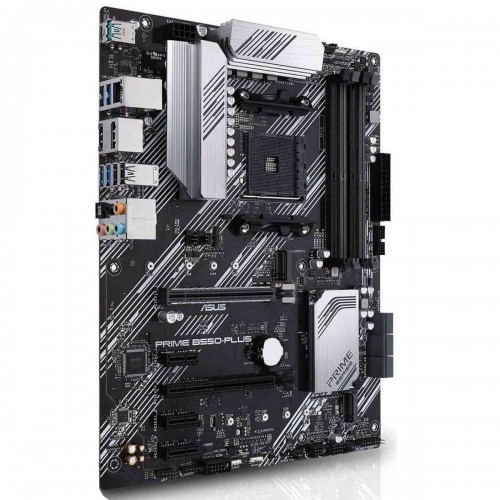

ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard
  • ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard
  • ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard
  • ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard
Product Page After Image | Lenovo Ideapad Flex 5

ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard

Price 18,300৳
Regular Price 19,800৳
Status In Stock
Product Code 13967
Brand MSI

Key Features

  • Model: ASUS Prime B550 Plus
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Ultrafast connectivity
  • Comprehensive cooling
  • Aura Sync RGB
  • View More Info

Payment Options

Specification

Basic Information
Supported CPUAMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
ChipsetAMD B550
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI3rd Gen AMD Ryzen Processors
1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen with Radeon Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
M.2 Socket3rd Gen AMD Ryzen Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
3rd Gen AMD Ryzen with Radeon Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD B550 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Memory
TypeDual Channel Memory Architecture
Slots4 x DDR4 memory slots
Supported Memory3rd Gen AMD Ryzen Processors
4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
3rd Gen AMD Ryzen with Radeon Graphics Processors
4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum Memory128GB
Graphics
Graphics1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
Supports AMD 2-Way CrossFireX Technology
Connector & Ports
HDMI1 x HDMI 2.1(4K@60HZ)
Display Port (s)1 x DisplayPort 1.2
USB (s)Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s)Realtek RTL8111H
ASUS LANGuard
Supported StorageTotal supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
3rd Gen AMD Ryzen with Radeon Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD B550 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
AudioRealtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Unique de-pop circuit
Internal I/O Ports1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
TPM (Trusted Platform Module )1 x SPI TPM header
Others
Special Features ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- SafeSlot
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header
Warranty Information
Manufacturing Warranty03 Years Warranty

Description

ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard

ASUS Prime series is expertly engineered to unleash the full potential of the 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. PCIe 4.0 M.2 Slot supports up to 22110 and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to 64Gbps PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform. Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Premium parts provide an immersive sound signature, with exceptional fidelity.

What is the price of ASUS Prime B550 Plus Motherboard in Bangladesh?

The latest price of ASUS Prime B550 Plus Motherboard in Bangladesh is 18,300৳. You can buy the ASUS Prime B550 Plus Motherboard at best price from our website or visit any of our showrooms.

Questions (2)

Have question about this product? Get specific details about this product from expert.

Azadul Haque on 05 Jun 2024

Q: Can i use ryzen 5 5600g with this Motherboard?

A: Yes Sir, with this ASUS Prime B550 Plus DDR4 AMD AM4 ATX Motherboard you can use AMD Ryzen 5 5600G Processor.

By Star Tech Support 05 Jun 2024

Md Sohrab on 24 May 2022

Q: Can I use Ryzen 7 3700X with this motherboard?

A: Yes Dear Sir, You can use This CPU with MOBO. Thanks

By Star Tech Support 24 May 2022
