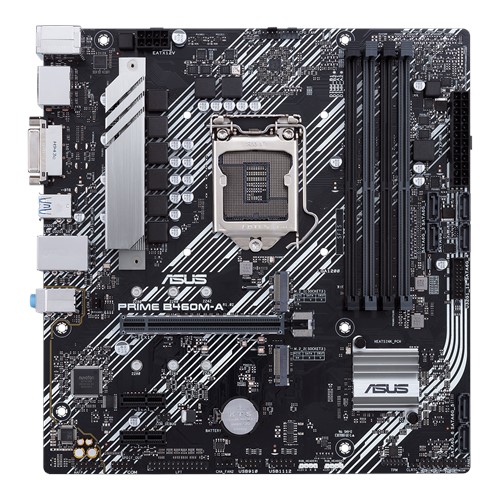

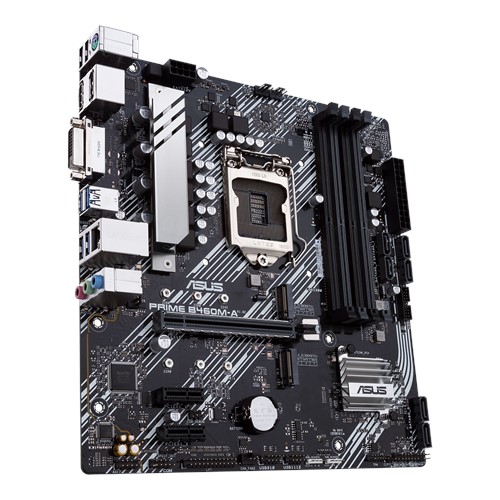

Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard
  • Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard
  • Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard
  • Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard

Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard

Price To be announced
Status Discontinued
Product Code 14194
Brand Asus

Key Features

  • Model: Asus Prime B460M-A
  • Supports Intel 10th Gen Processors
  • ASUS OptiMem
  • 5X Protection III
  • Ultrafast connectivity
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel B460
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form FactormATX Form Factor
9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
Expansion Slots
PCIIntel 10th Gen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel B460 Chipset
2 x PCIe 3.0/2.0 x1
M.2 Socket1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Memory
Slots4 x DIMM
Supported Memory4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Maximum Memory128GB
Graphics
GraphicsIntegrated Graphics Processor- Intel® UHD Graphics support
1 x DisplayPort 1.4
1 x HDMI 1.4b
1 x DVI-D
Connector & Ports
HDMI1 x HDMI 1.4b
Display Port (s)1 x DisplayPort 1.4
DVI-D (s)1 x DVI-D

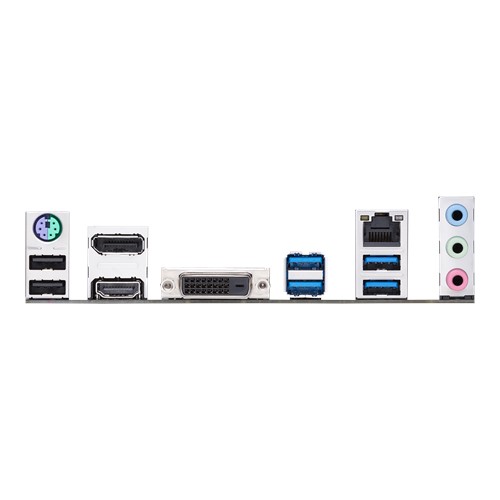

USB (s)Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)
LAN Port (s)Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Supported StorageTotal supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready
AudioRealtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports: Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Internal I/O Ports1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x LPT header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
TPM (Trusted Platform Module )1 x SPI TPM header
Others
Special Features Software Features:
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
AI Charger
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

ASUS Special Features:
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS Safeslot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
ASUS Sync
- Standard RGB header(s)
Warranty Information
Manufacturing Warranty3 Years

Description

Asus Prime B460M-A Intel 10th gen Micro-ATX Motherboard

ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel® Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B460 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware. Comprehensive controls form the foundation of the ASUS Prime series. The Prime B460 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Prime B460 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. THE Prime B460 Series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Prime B460 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel Core processors. A B460 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. Prime B460 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

What is the price of Asus Prime B460M-A Motherboard in Bangladesh?

The latest price of Asus Prime B460M-A Motherboard in Bangladesh is 10,800৳. You can buy the Asus Prime B460M-A Motherboard at best price from our website or visit any of our showrooms.

Questions (1)

Have question about this product? Get specific details about this product from expert.

md Abdul Kuddus Samim on 10 Feb 2021

Q: Does it support
Samsung 970 EVO Plus NVMe M.2 250GB SSD

A: Yes sir. Samsung 970 EVO Plus Nvme M.2 250GB SSD will be supported in Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard.

By Star Tech Support 10 Feb 2021
