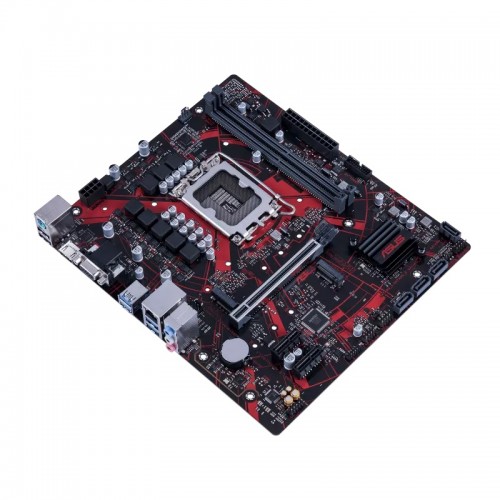

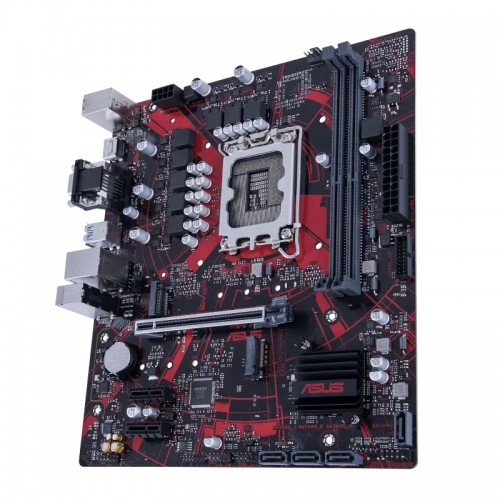

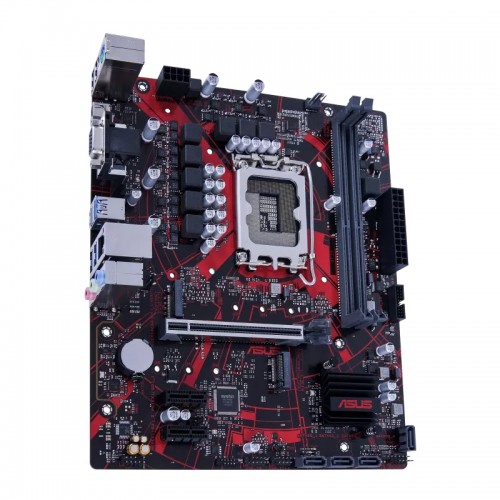

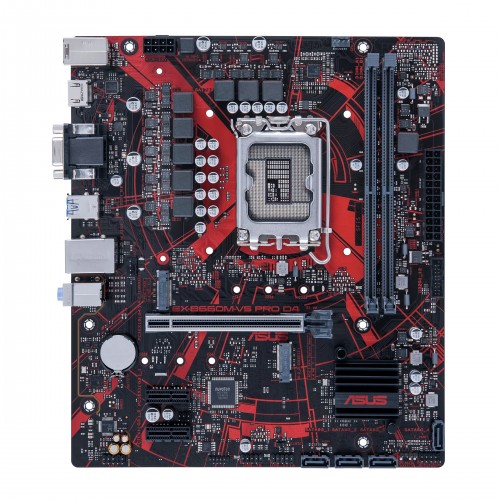

ASUS EX-B660M-V5 PRO D4 M-ATX Motherboard
  • ASUS EX-B660M-V5 PRO D4 M-ATX Motherboard
  • ASUS EX-B660M-V5 PRO D4 M-ATX Motherboard
  • ASUS EX-B660M-V5 PRO D4 M-ATX Motherboard
  • ASUS EX-B660M-V5 PRO D4 M-ATX Motherboard

ASUS EX-B660M-V5 PRO D4 M-ATX Motherboard

Price 14,000৳15,000৳
Regular Price 16,500৳
Status In Stock
Product Code 23760
Brand Asus

Key Features

  • Model: EX-B660M-V5 PRO D4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • DDR4 5333 (OC), two M.2 slots, PCIe 4.0
  • HDMI, D-Sub, USB 3.2 Gen 1
  • Realtek 2.5 Gb Ethernet
  • View More Info

Payment Options

Specification

Basic Information
Supported CPUSupport for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel B660 Chipset
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form FactormATX Form Factor
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Premium audio capacitors
- Audio Shielding
- Dedicated audio PCB layers
Expansion Slots
PCIIntel 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel B660 Chipset
2 x PCIe 3.0 x1 slots
M.2 Socket2 x M.2 slots
Memory
TypeDDR4
Slots2 x DIMM
Supported Memory5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory64GB
Graphics
Graphics1 x D-Sub port
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)

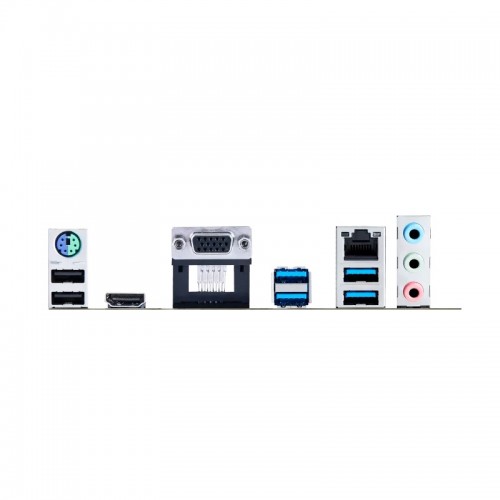

Connector & Ports
HDMI1 x HDMI port
D-Sub (s)1 x D-Sub port
USB (s)Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)1 x Realtek 2.5Gb Ethernet
Supported StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.

Intel B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio3 x Audio jacks
Internal I/O PortsFan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-Slot

ASUS EZ DIY
- ProCool

Non-stop Action
- Lightning Boot

Non-stop Challenger
- ASUS iCafe labs certified

Non-stop Durability
- Luminous anti-moisture coating
- USBGuard
Warranty Information
Manufacturing Warranty3 years

Description

ASUS EX-B660M-V5 PRO D4 M-ATX Motherboard

The ASUS EX-B660M-V5 PRO D4 Supports Intel Socket LGA1700 for 14th, 13th, & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. It supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. It features including 8-pin ProCool connector, luminous anti-moisture coating, USBGuard, LANGuard, SafeSlot Core+, Stainless-steel back I/O, and 5X Protection III. This motherboard offers DDR4 5333 (OC), two M.2 slots, PCIe 4.0, ASUS Beyond VR ready, and Epic audio. This 12th Gen motherboard is specially made for non-stop action, featuring Lightning Boot for faster BIOS boot-up. These Expedition motherboards are engineered for long-lasting durability to protect against moisture, corrosion, and overvoltage damage. It comes with an innovative moisture-resistant coating that provides comprehensive protection to prolong the life of your Expedition motherboard. This motherboard has 120%-higher overvoltage tolerances than standard to ensure stable and reliable input voltages. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges. It has a Q-LED Core display that produces light patterns by the power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. The latest ASUS EX-B660M-V5 PRO D4 motherboard offers a 3-year warranty.

What is the price of ASUS EX-B660M-V5 PRO D4 Motherboard in Bangladesh?

The latest price of ASUS EX-B660M-V5 PRO D4 Motherboard in Bangladesh is 14,000৳. You can buy the ASUS EX-B660M-V5 PRO D4 Motherboard at best price from our website or visit any of our showrooms.
