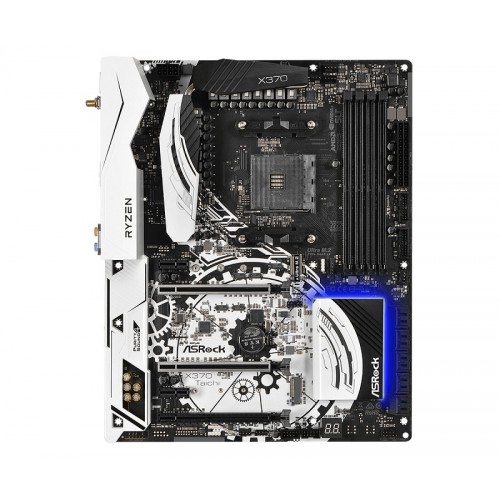

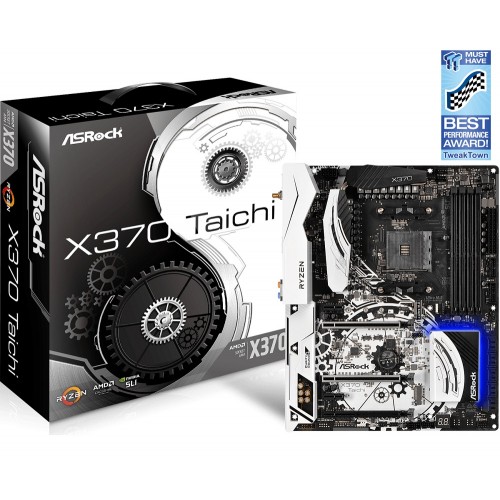

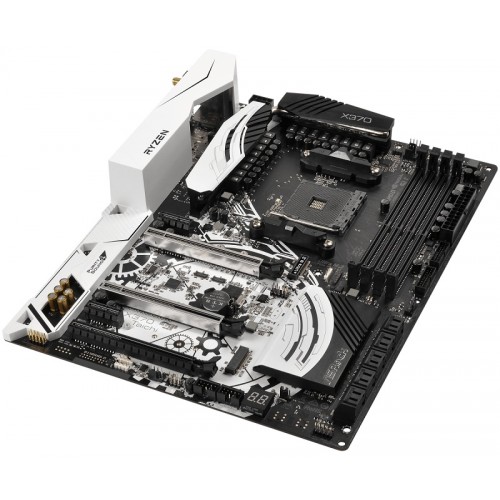

ASRock X370 Taichi Motherboard

ASRock X370 Taichi Motherboard
  • ASRock X370 Taichi Motherboard
  • ASRock X370 Taichi Motherboard
  • ASRock X370 Taichi Motherboard
0 Customer Review
  • Brand: ASRock
  • Product Code: ASRock X370 Taichi
  • Availability: In Stock

Highlights

  • ATX
  • ASRock Super Alloy
  • Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge)
  • Supports DDR4 3200+(OC)
  • View More Info

0% EMI AVAILABLE: 3,633৳/month

21,800৳

Specification:

Motherboard
ChipsetAMD Promontory X370
Slots- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3))* II
- 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)** II
- 2 x PCI Express 2.0 x1 Slots II
- Supports AMD Quad CrossFireX™ and CrossFireX™ II
- Supports NVIDIA® Quad SLI™ and SLI™ II
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) II
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) II
Wireless LAN- Intel® 802.11ac WiFi Module (Free Bundle) II
- Supports IEEE 802.11a/b/g/n/ac II
- Supports Dual-Band (2.4/5 GHz) II
- Supports high speed wireless connections up to 433Mbps II
- Supports Bluetooth 4.2 / 3.0 + High speed class II
Supported Processors- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge) II
- IR Digital PWM II
- 16 Power Phase design II
- Supports 300W EX OC II
- Supports ASRock Hyper BCLK Engine II
Max Memory Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC and non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- 15μ Gold Contact in DIMM Slots
BIOS- 128Mb AMI UEFI Legal BIOS with GUI support II
- Supports "Plug and Play" II
- ACPI 5.1 compliance wake up events II
- Supports jumperfree II
- SMBIOS 2.3 support II
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment II
Onboard Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) II
- Premium Blu-ray Audio support II
- Supports Surge Protection II
- Supports Purity Sound™ 4 II
- Nichicon Fine Gold Series Audio Caps II
- 120dB SNR DAC with Differential Amplifier II
- TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) II
- Pure Power-In II
- Direct Drive Technology II
- PCB isolate shielding II
- Impedance Sensing on Line Out port II
- Individual PCB Layers for R/L Audio Channel II
- Gold Audio Jacks II
- 15μ Gold Audio Connector II
- Supports DTS Connect II
Onboard LAN- Gigabit LAN 10/100/1000 Mb/s II
- GigaLAN Intel® I211AT II
- Supports Wake-On-LAN II
- Supports Lightning/ESD Protection II
- Supports Energy Efficient Ethernet 802.3az II
- Supports PXE II
Warranty03 Years

Description :

ASRock X370 Taichi Motherboard

  • ATX
  • ASRock Super Alloy
  • Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge)
  • Supports DDR4 3200+(OC)
  • 2 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1
  • NVIDIA® Quad SLI™, AMD Quad CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec),
  • Supports Purity Sound™ 4 & DTS Connect
  • 10 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x4)

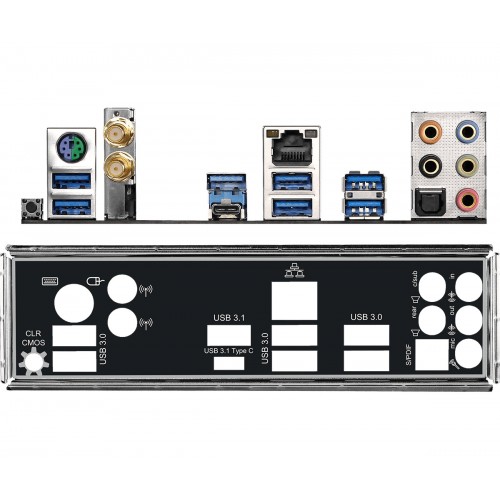

  • 2 USB 3.1 (1 Type-A, 1 Type-C), 10 USB 3.0 (4 Front, 6 Rear)
  • Intel® Gigabit LAN
  • Intel® 802.11ac+ BT 4.2

03 years Warranty
