closeBasic Information | ||
Supported CPU | - Supports 8th Generation Intel® Core™ Processors (Socket 1151) | |
Chipset | - Intel® H310 | |
BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment |
|
Form Factor | - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm - Solid Capacitor design |
|
Expansion Slots | ||
PCI | - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) - 2 x PCI Express 2.0 x1 Slots |
|
M.2 Socket | -1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s) | |
Memory | ||
Type | -Dual Channel DDR4 Memory Technology | |
Slots | - 2 x DDR4 DIMM Slo | |
Supported Memory | - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory | |
Maximum Memory | 32GB | |
Graphics | ||
Graphics | - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) - Three graphics output options: D-Sub, DVI-D and HDMI** - DirectX 12 - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports 4K Ultra HD (UHD) playback with HDMI Port |
|
Connector & Ports | ||
HDMI | -1 x HDMI Port | |
USB (s) | - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
LAN Port (s) | -1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug* - 1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s) |
|
Audio | -1 x Front Panel Audio Connector -HD Audio Jacks: Line in / Front Speaker / Microphone |
|

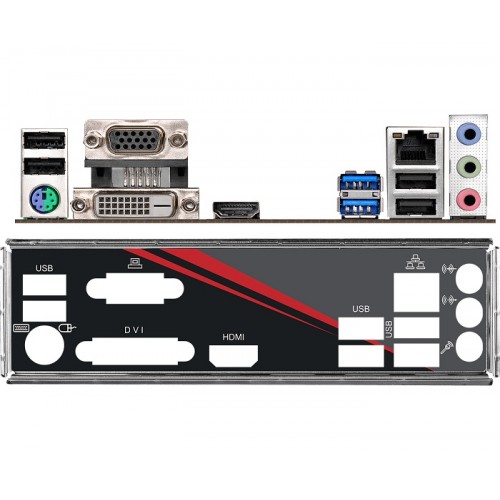

Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
Warranty Information | ||
Manufacturing Warranty | 03 Years |
Supports 8th Generation Intel® Core™ Processors (Socket 1151) , Supports DDR4 2666 ,1 PCIe 3.0 x16, 2 PCIe 2.0 x1, AMD Quad CrossFireX™ , Graphics Output Options: HDMI, DVI-D, D-Sub , 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps, 4 SATA3, 1 M.2 (PCIe Gen2 x4 & SATA3), 4 USB 3.1 Gen1 (2 Front, 2 Rear),Intel® Gigabit LAN
