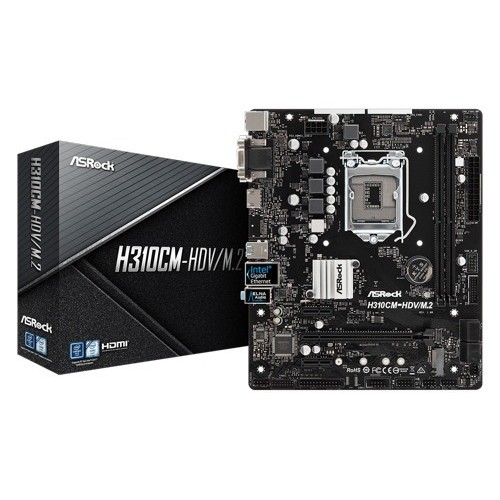

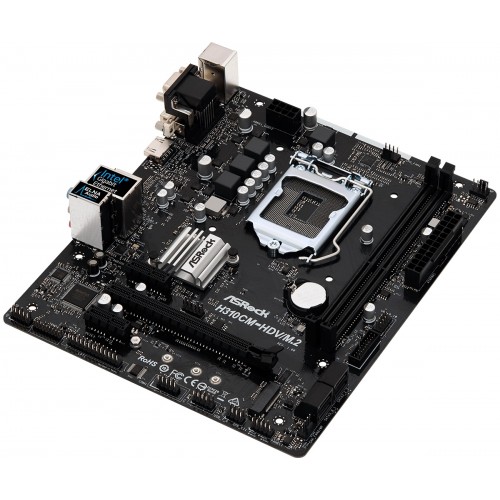

Asrock H310CM-HDV/M.2 8th & 9th Gen DDR4 Motherboard
  • Asrock H310CM-HDV/M.2 8th & 9th Gen DDR4 Motherboard
  • Asrock H310CM-HDV/M.2 8th & 9th Gen DDR4 Motherboard
Product Page after image | Notice

Asrock H310CM-HDV/M.2 8th & 9th Gen DDR4 Motherboard

Price To be announced
Status Discontinued
Product Code 9859
Brand ASRock

Key Features

  • Model: Asrock H310CM-HDV/M.2
  • Chipset Intel® H310
  • Supports 9th and 8th Gen Intel(Socket 1151)
  • 2 x PCI Express 2.0 x1 Slots
  • Gigabit LAN 10/100/1000 Mb/s
  • View More Info
Discontinued

Specification

Basic Information
Supported CPU- Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
- Supports CPU up to 95W
- 4 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
Chipset- Intel H310
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment
Form Factor- Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
- Solid Capacitor design
Expansion Slots
PCI1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
2 x PCI Express 2.0 x1 Slots
M.2 Socket1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)
Memory
TypeDDR4
Slots- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
- 2 x PCI Express 2.0 x1 Slots
Supported Memory- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
Maximum MemoryMax. capacity of system memory: 32GB
Graphics
Graphics- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
- DirectX 12
- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Connector & Ports
HDMI1 x HDMI Port
D-Sub (s)1 x D-Sub Port
DVI-D (s)1 x DVI-D Port
USB (s)2 x USB 2.0
1 x USB 3.1
LAN Port (s)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage-4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
-1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)
AudioHD Audio Jacks: Line in / Front Speaker / Microphone
Others
Special Features - Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
Bundled SoftwareSoftware
- ASRock A-Tuning
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
Warranty Information
Manufacturing Warranty03 years warranty

Description

Asrock H310CM-HDV/M.2 micro ATX solid capacitor design 8th gen processors supported dual channel DDR4 maximum 32GB memory motherboard has the capability of 1 M.2 (PCIe Gen2 x4 & SATA3) and 1 PCIe 3.0 x16, 2 PCIe 2.0 x1 as interface. For graphics compatibility, it will support integrated Intel UHD graphics having AMD Quad CrossFireX facility with HDMI, DVI-D, D-Sub output options. This exclusive motherboard has the facility of 4 USB 3.1 Gen1 (2 Front, 2 Rear), 4 USB 3.1 Gen1 (2 Front, 2 Rear), 4 SATA3, Intel Gigabit ethernet and 7.1 CH HD Audio connectivity.

Star Tech offers the best deals with EMI facility in all the major cities such as Chattagram, Dhaka, Rangpur, Rajshahi & Sylhet. Buy latest Asrock mainboard at best price from our online shop and have a fast delivery at any location you wish inside Bangladesh.


03 years warranty


Questions (4)

Have question about this product? Get specific details about this product from expert.

Minhajul islam himel on 07 Nov 2020

Q: Is this motherboard supports rgb headers

A: No Sir, This Asrock H310CM-HDV/M.2 8th & 9th Gen DDR4 Motherboard is not RGB headers supported.

By Star Tech Support 07 Nov 2020

MOSTAKIM on 11 Jul 2020

Q: CAN THIS MOTHERBOARD SUPPORT 8GB GDDR5 GPU

A: Yes Sir, the Asrock H310CM-HDV/M.2 8th & 9th Gen DDR4 Motherboard can be able to support 8GB GDDR5 Graphics Card.

By Star Tech Support 11 Jul 2020

Mahabub Hossain on 24 Mar 2020

Q: Transcend 832S 256GB M.2 2280 SATAIII SSD
Support with this Motherboard

A: Dear Customer, Asrock H310CM-HDV/M.2 8th & 9th Gen DDR4 Motherboard will support Transcend 832S 256GB M.2 2280 SATAIII SSD. Thank You

By Star Tech Support 24 Mar 2020

Alamin on 01 Nov 2019

Q: Warranty ??? .............

A: Sir, the Asrock H310CM-HDV/M.2 8th & 9th Gen DDR4 Motherboard has 3 Years Warranty.

By Star Tech Support 01 Nov 2019
