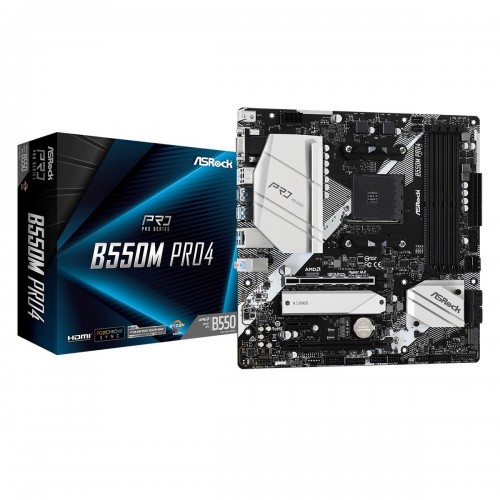

ASRock B550M Pro4 DDR4 AMD Motherboard
  • ASRock B550M Pro4 DDR4 AMD Motherboard
  • ASRock B550M Pro4 DDR4 AMD Motherboard
mymensingh outlet

ASRock B550M Pro4 DDR4 AMD Motherboard

Price To be announced
Status Sold Out
Product Code 13523
Brand ASRock

Key Features

  • Model: ASRock B550M Pro4
  • Supports 3rd Gen AMD AM4 Ryzen/ Future AMD Ryzen Processors
  • Supports DDR4 4733+ (OC)
  • 6 SATA3, 1 Hyper M.2, 1 M.2
  • 8 Power Phase Design
  • View More Info
stars 180 Star Points
Sold Out

Specification

Basic Information
Supported CPU- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*
- Digi Power design
- 8 Power Phase design
ChipsetAMD B550
BIOS256Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake-up events
Supports jumperfree
SMBIOS 2.3 support
CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM
+1.8VSB, VDDP Voltage Multi-adjustment
Form Factor- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- Solid Capacitor design
- 2oz Copper PCB
Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
Expansion Slots
PCI1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
M.2 Socket- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Memory
TypeDDR4
SlotsAMD Ryzen series CPUs (Vermeer and Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs (Cezanne and Renoir)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs (Picasso)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX and CrossFireX
Supported Memory- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports Extreme Memory Profile (XMP) memory modules
- 15μ Gold Contact in DIMM Slots
Maximum Memory128GB
Graphics
Graphics- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- Supports Triple Monitor
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports Microsoft PlayReady
Connector & Ports
HDMI 1 x HDMI Port
Display Port (s)1 x DisplayPort 1.4
D-Sub (s)1 x D-Sub Port
USB (s)- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
LAN Port (s)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
Internal I/O Ports- Antenna Bracket
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
- 1 x COM Port Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )- 1 x SPI TPM Header
Others
Special Features ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Warranty Information
Manufacturing Warranty03 Years Warranty

Description

ASRock B550M Pro4 DDR4 AMD Motherboard

Features sturdy components and completely smooth power delivery to the CPU. Plus, it provides unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. ASRock B550M supports Dual M.2 For SSD. The Sound Tracker is the visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Whether user is using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers user the most engaging listening experience, vibrant and rich with details. This motherboard features onboard RGB headers and an addressable RGB header that permits motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and many more. Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that user's whole system may perform more stable. Also, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. High Density Glass Fabric PCB design that diminishes the gaps between the PCB layers to protect the motherboard from electrical shorts caused by humidity. Packed with a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause the system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent motherboard’s components from being damaged by these unexpected voltage spikes. ASRock Live Update & APP Shop is designed for user's convenience. Provides various apps and support software for users to download.

This exclusive ASRock B550M Pro4 comes with 03 years of warranty.

What is the price of ASRock B550M Pro4 AMD Motherboard in Bangladesh?

The latest price of ASRock B550M Pro4 AMD Motherboard in Bangladesh is 15,800৳. You can buy the ASRock B550M Pro4 AMD Motherboard at best price from our website or visit any of our showrooms.

Questions (5)

Have question about this product? Get specific details about this product from expert.

Shahadad Hossain on 24 Nov 2023

Q: Will ASRock B550M Pro4 DDR4 AMD Motherboard support Ryzen 7 5700x?

A: Yes sir, ASRock B550M Pro4 DDR4 AMD Motherboard will support Ryzen 7 5700x.

By Star Tech Support 24 Nov 2023

Saifan Sadeed on 04 May 2023

Q: Will it support AMD Ryzen 7 5800X processor?

A: Dear Sir, You can use AMD Ryzen 7 5800X processor with ASRock B550M Pro4 DDR4 AMD Motherboard.

By Star Tech Support 04 May 2023

Roman Khan on 23 Oct 2021

Q: Will it support the AMD Ryzen 5 5600G processor?

A: Yes, sir, you can use AMD Ryzen 5 5600G processor with ASRock B550M Pro4 DDR4 AMD Motherboard.

By Star Tech Support 23 Oct 2021

Erfan on 06 Jan 2021

Q: Will it support AMD ryzen5 3600 and NVIDIA 30 series GPU?

A: Yes Sir, ASRock B550M Pro4 DDR4 AMD Motherboard supports AMD Ryzen 5 3600 Processor and NVIDIA 30 series GPU.

By Star Tech Support 06 Jan 2021

Md:Didarul alam sampad on 31 Oct 2020

Q: Can i use it for AMD Ryzen 5 3400g processor..plz reply quk sir

A: This ASRock B550M Pro4 DDR4 AMD Motherboard will not support the AMD Ryzen 5 3400g processor.

By Star Tech Support 31 Oct 2020
