close| Price | 13,500৳ |
| Regular Price | 14,800৳ |
| Status | In Stock |
| Product Code | 50324 |
| Brand | ASRock |
| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD B840 | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm 2oz Copper PCB |
|
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| Expansion Slots | ||
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| M.2 Socket | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* |
|
| Memory | ||
| Type | Dual Channel DDR5 Memory Technology | |
| Slots | 2 x DDR5 DIMM Slots | |
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 TMDS/FRL 8G Compatible | |
| D-Sub (s) | 1 x D-Sub | |
| USB (s) | CPU: - 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
|
| LAN Port (s) | Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H |
|
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors |
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
|
| Internal I/O Ports | - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 4 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Others | ||
| Special Features | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, Dr.MOS for Vcore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter |
|
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

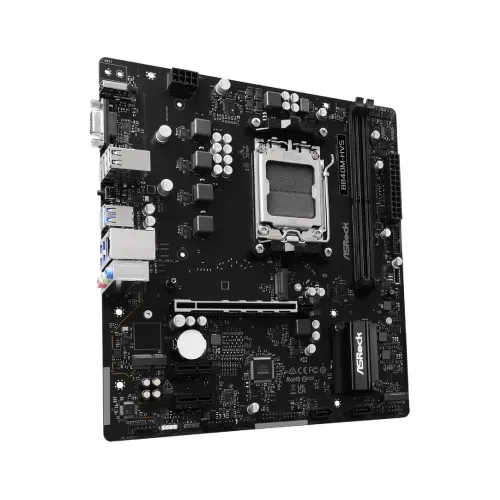

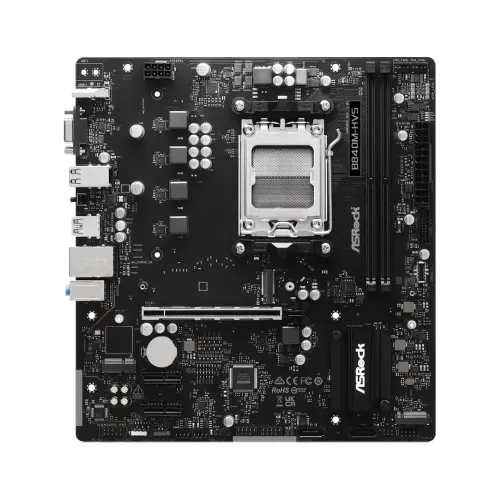

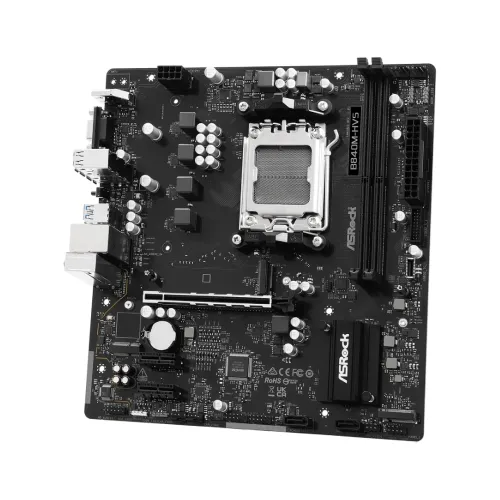

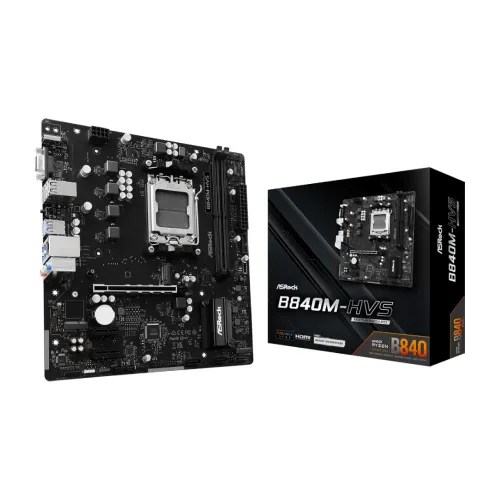

The ASRock B840M-HVS AMD AM5 mATX Motherboard is built for AMD Ryzen 9000, 8000, and 7000 series processors. This offers DDR5 memory support, PCIe 4.0 expansion, and advanced storage options. With features like BIOS Flashback, Auto Driver Installer, and Post Status Checker, the ASRock B840M-HVS makes updates and troubleshooting simple. Compact in micro-ATX form, it delivers stability, productivity, and flexibility for modern PC builds.
The ASRock B840M-HVS supports dual-channel DDR5 memory up to 6800+(OC) with a maximum capacity of 128GB. It includes XMP and EXPO profiles for overclocking. Integrated AMD RDNA graphics provide HDMI 2.1 output up to 4K 120Hz and D-Sub up to Full HD, making this ASRock DDR5 Motherboard suitable for gaming and productivity.
This ASRock motherboard offers one PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, and an M.2 socket for WiFi modules. Storage options include one Hyper M.2 Gen4x4 slot, one Ultra M.2 Gen3x4/SATA slot, and two SATA3 connectors. RAID 0, 1, and 10 are supported for M.2 NVMe devices, making the ASRock B840M-HVS AMD AM5 Motherboard versatile for different setups.
Rear I/O includes HDMI, D-Sub, four USB 3.2 Gen1 Type-A ports, four USB 2.0 ports, Gigabit LAN, HD audio jacks, and a BIOS Flashback button. Internal headers support USB 3.2 Gen1 Type-C, RGB, and addressable LED strips. With Realtek ALC897 7.1 HD audio and RTL8111H Gigabit LAN, this ASRock AM5 Motherboard ensures reliable connectivity and multimedia performance.
Built with a 4+1+1 power phase design and Dr.MOS for Vcore, the ASRock B840M-HVS provides stable power delivery. It features a 2oz copper PCB, smart fan speed control, and multiple chassis/water pump fan connectors. EZ update and troubleshooting tools like BIOS Flashback and Post Status Checker make maintenance straightforward.
The ASRock B840M-HVS comes in a micro-ATX form factor (24.4 × 22.9 cm) with VESA mounting support. Accessories include an I/O shield, SATA cables, and an M.2 screw. Compatible with Windows 10 and 11 (64-bit), this ASRock B840M-HVS AMD AM5 mATX Motherboard is ready for modern PC builds.
In Bangladesh, you can get original ASRock B840M-HVS AMD AM5 mATX Motherboard From Star Tech. We have a large collection of latest ASRock Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASRock B840M-HVS AMD AM5 mATX Motherboard comes with 3 Years warranty.
The latest price of ASRock B840M-HVS Motherboard in Bangladesh is 13,500৳. You can buy the ASRock B840M-HVS Motherboard at best price from our website or visit any of our showrooms.
