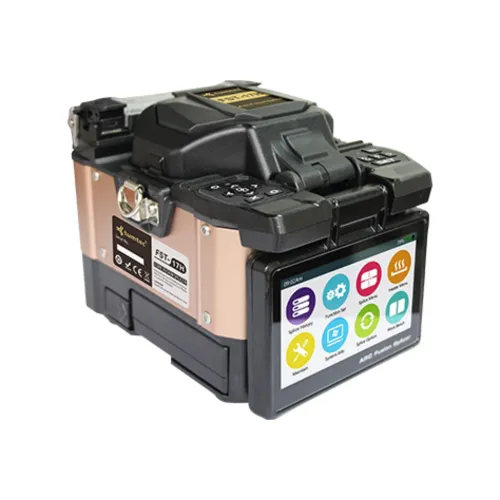

Tumtec FST-17H FTTx Active Cladding Alignment Fusion Splicer Machine

Tumtec FST-17H FTTx Active Cladding Alignment Fusion Splicer Machine

The Tumtec FST-17H FTTx Active Cladding Alignment Fusion Splicer Machine supports precise fiber joining across demanding FTTx installations. Its auto splice mode simplifies operation through a user-friendly interface. The 4.3-inch high-resolution color touchscreen provides 380X magnification for clear fiber viewing. Its 90° bi-directional display supports comfortable viewing during field work. The unit weighs 1,750g with its battery and measures 130W × 155L × 125H mm.

Durable Design for Field Conditions

Tumtec FST-17H Splicer Machine features dust-proof, water-proof, and high-temperature resistant construction for challenging work environments. It supports operating altitudes from sea level to 5,000 meters. The machine operates between 10°C and 50°C, with humidity up to 95%. Its maximum supported wind speed reaches 15m/s. These specifications help support fiber splicing across varied outdoor conditions with changing environmental factors.

Extended Battery Performance

The Tumtec FST-17H Splicer Machine includes a detachable 5200mAh battery for extended field operation. It supports approximately 230 combined splicing and heating cycles per charge. Quick splice mode completes a splice in about six seconds. Quick heating takes approximately 13 seconds, while typical heating requires 30 seconds. Three high-power white LEDs and illuminated keypads support work during low-light conditions.

Fiber Compatibility and Fixtures

Tumtec FST-17H Splicer Machine supports SMF, MMF, DSF, NZDSF, BIF, and EDF fiber types. Its detachable multifunction fixture accommodates different fiber and cable configurations. The machine supports 0.25–3.0mm fiber or indoor cables. Cladding diameters from 80–150µm are supported. Preset heating modes cover 20mm, 30mm, 40mm, 50mm, and 60mm sleeves, while additional modes can be configured.

Splicing Accuracy and Stability

Tumtec FST-17H Splicer Machine uses German CNC technology with an integrated fiber-adjust frame for consistent alignment. Typical splice loss reaches 0.02dB for SMF and 0.01dB for MMF. DSF and NZDSF typically measure 0.04dB, while G.657 reaches 0.02dB. Return loss is rated at ≥60dB. Automatic arc calibration uses air pressure and temperature data for optimized operation, while electrodes support up to 5,000 arcs.

Storage and Connectivity

Tumtec FST-17H Splicer Machine provides 41 preset splicing modes and supports up to 100 modes. It includes five preset heating modes with capacity for 100 modes. The machine stores 20,000 latest records and 200 images for service documentation. A mini USB 2.0 terminal supports data connectivity. AC input accepts 100–240V, while DC input supports 12–15V for flexible power options.

Buy Tumtec FST-17H Fusion Splicer Machine from Star Tech

In Bangladesh, you can get original Tumtec FST-17H FTTx Active Cladding Alignment Fusion Splicer from Star Tech. We have a large collection of latest Splicer Machine to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Tumtec FST-17H FTTx Active Cladding Alignment Fusion Splicer comes with 2 Year warranty.
