TP-Link Omada SG6428X 24-Port Gigabit Stackable L3 Managed Switch with SFP Port

TP-Link Omada SG6428X 24-Port Gigabit Stackable L3 Managed Switch with SFP Port

The TP-Link Omada SG6428X 24-Port Gigabit Stackable L3 Managed Switch with SFP Port is a high-performance enterprise networking solution. Built for SMBs, enterprises, and ISPs that need scalable, reliable, and feature-rich Layer 3 switching at the network convergence layer. It delivers 128 Gbps switching capacity per unit with 24 Gigabit RJ45 ports and four 10 Gbps SFP+ slots for fast and flexible wired connectivity. This TP-Link Omada SG6428X 24-Port Gigabit Managed Switch supports physical stacking of up to 8 units, dual redundant power supplies, and full Omada SDN integration for centralized cloud management.

Port Configuration

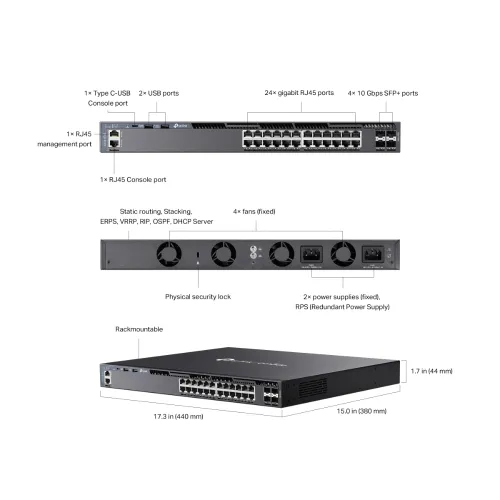

The TP-Link Omada SG6428X 24-Port Gigabit Switch provides 24 10/100/1000 Mbps RJ45 ports and four 10G SFP+ slots for high-density wired connectivity across enterprise network deployments. A switching capacity of 128 Gbps per unit and a packet forwarding rate of 95.2 Mpps ensure the switch handles demanding traffic loads without bottlenecks during peak operation. A 32K MAC address table, 3MB packet buffer memory, and 9KB jumbo frame support enable efficient and high-volume data processing across all connected devices. Two USB 2.0 ports, one RJ45 console port, one USB Type-C console port, and one dedicated RJ45 management port provide comprehensive access and configuration options.

Switching Performance

Physical stacking supports up to 4 units per stack group with each 10G SFP+ uplink port usable as a stacking port at 20 Gbps full-duplex stack bandwidth. This stacking capability scales the network to 8 units for built-in redundancy and expanded port density without complex configuration changes. The TP-Link Omada SG6428X 24-Port Gigabit Managed Switch uses Store-and-Forward transmission for reliable and error-free packet delivery across all connected network segments. Four internal fixed fans and a maximum power consumption of 28.4W at 220V ensure efficient and thermally managed continuous operation.

Layer 3 Routing

The TP-Link Omada SG6428X 24-Port Switch delivers comprehensive Layer 3 routing capabilities including Static Routing, RIP v1/v2, OSPF v2/v3, ECMP with up to 32 nexthops per destination, VRRP v2/v3, and DHCP Server and Relay for scalable network architectures. IPv4 supports up to 256 IP interfaces, 1024 static routes, and a host route table of up to 6100 entries for extensive routing table capacity. PIM-DM and PIM-SM multicast routing protocols ensure efficient multicast traffic delivery across complex network topologies. DHCP Server supports up to 8K IP pools and 1000 manual binding entries for comprehensive address management in large network deployments.

Layer 2 Features

With Layer 2 features include Link Aggregation, Spanning Tree Protocol, ERPS for ring topology protection and recovery, Port Mirroring, RSPAN, and 802.3x Flow Control for robust and resilient network operation. IGMP Snooping, MLD Snooping, Multicast VLAN Registration, and support for 2048 IGMP groups deliver efficient multicast traffic management across the network. Up to 4K VLAN groups using 802.1Q, MAC VLAN, Protocol VLAN, QinQ, Voice VLAN, Private VLAN, and GVRP provide extensive traffic segmentation capabilities. The TP-Link Managed Switch also supports 802.3ah Ethernet Link OAM, L2PT, DLDP, DDM, and sFlow for comprehensive ISP-grade feature coverage.

Buy TP-Link Omada SG6428X 24-Port Gigabit Managed Switch from Star Tech

In Bangladesh, you can get original TP-Link Omada SG6428X 24-Port Gigabit Managed Switch From Star Tech. We have a large collection of latest TP-Link Switch to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The TP-Link Omada SG6428X 24-Port Gigabit Managed Switch comes with 2 year warranty.
