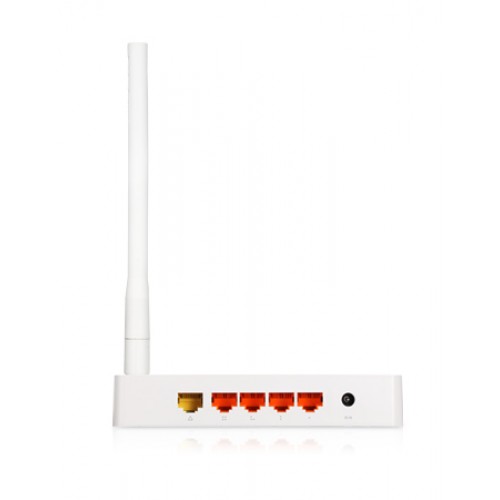

TOTOLINK N302R+ 300Mbps Wireless N Router
  • TOTOLINK N302R+ 300Mbps Wireless N Router

TOTOLINK N302R+ 300Mbps Wireless N Router

Price To be announced
Status Out Of Stock
Product Code 4696

Key Features

  • Model: TOTOLINK N302R+
  • Frequency: 2.4~2.4835GHz
  • Interface: 4 x LAN & 1x WAN ports
  • DIM: 5.7L x 3.8W x 1.0H in.
  • View More Info
stars 25 Star Points
Out Of Stock


Wireless N Router
Reception Sensitivity270M: -61 dBm@10% PER ,
135M: -65 dBm@10% PER ,
54M: -68 dBm@10% PER ,
11M: -85 dBm@8% PER ,
6M: -88 dBm@10% PER ,
1M: -90 dBm@8% PER
Interface4 *10/100Mbps LAN Ports II
1 *10/100Mbps WAN Port II
Button1 *RST/WPS Button
External Power Supply9V DC/0.5A
Antenna Type3 *5dBi fixed antennas
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
EIRP< 20dBm
Wireless Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)


TOTOLINK N302R+ 300Mbps Wireless N Router

300Mbps Wireless N Router, 3 Antennas for extended coverage, PPPoE, DHCP and Static IP broadband functions, IP, MAC and URL filtering, Remotely VPN access

  • - Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
  • - Up to 300Mbps data rate for Wi-Fi network.
  • - Advanced MIMO technology enhances the throughput and wireless coverage.
  • - Supports  DHCP, Static IP, PPPoE(dual access), PPTP(dual access), L2TP(dual access) broadband functions.
  • - Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
  • - Connects to secure network easily and fast using WPS.
  • - Supports IP, Port, MAC, URL filtering and Port Forwarding.
  • - QoS: Bandwidth Control based on IP/MAC.
  • - Multi-SSID allows user to create multiple SSIDs according to their needs.
  • - Supports VLAN function for IPTV and other internet services.
  • - Universal repeater and WDS function for easy Wi-Fi extension.
  • - Supports TR-069 protocol for remote centralized management.

The TOTOLINK N302R+ comes with a 1-year warranty.

Questions (1)

Have question about this product? Get specific details about this product from expert.

Khaled Mahmud on 11 Apr 2023

Q: How much area will this router cover?

A: Dear sir, TOTOLINK N302R+ 300Mbps Wireless N Router should cover 1200+ square feet of area, but the actual coverage may vary depending on other factors, such as blockage.

By Star Tech Support 11 Apr 2023

Reviews (1)

Get specific details about this product from customers who own it.

5 out of 5 star star star star star
star star star star star

TOTOLINK N302R+ gives very good coverage but it took some time to reboot.

By SK Shohan on 06 Apr 2024
